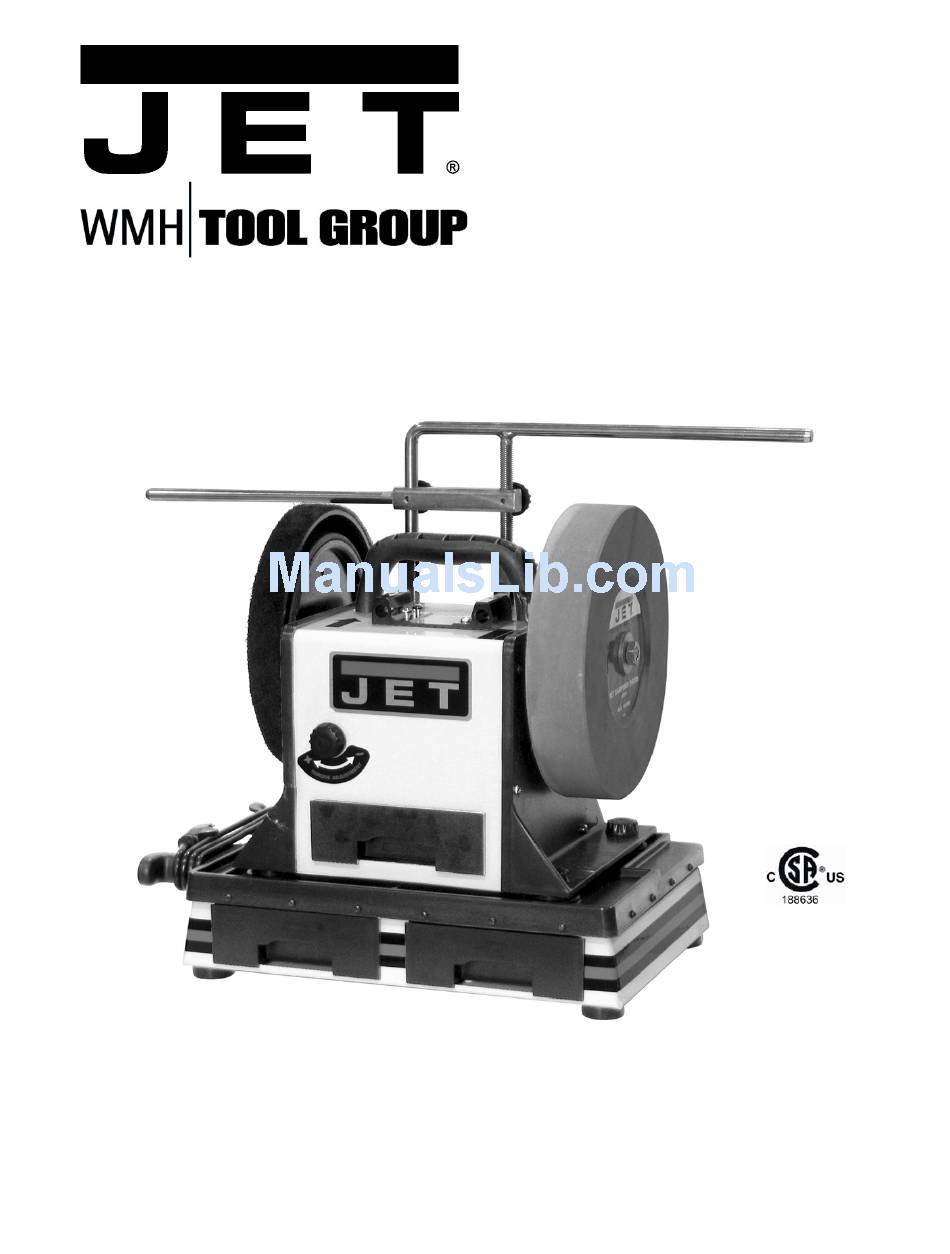

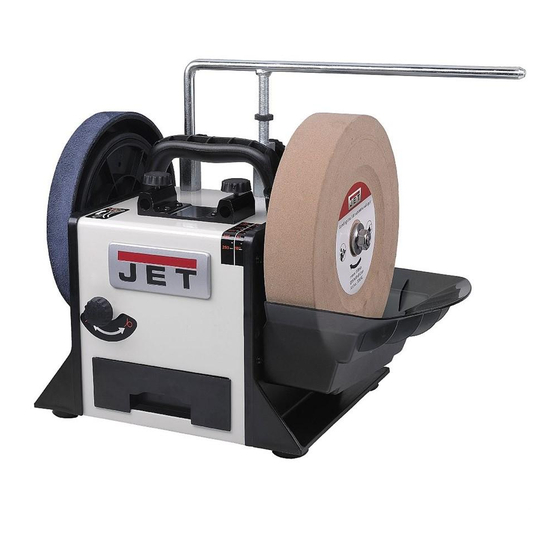

- Page 1 This Manual is Bookmarked Parts Manual Slow Speed Wet Sharpener Models: JSSG-10 Shown with optional Base and Support Arm Extension WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Part No. M-708015 Ph.: 800-274-6848 Revision B1 11/06 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty And Service
WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848. -
Page 3: Table Of Contents
Electrical Requirements... 8 Electrical Connections ... 8 Extension Cords ... 8 Parts and Assembly ... 9 JSSG-10 Wet Sharpener Parts List... 9 JSSG-10 Wet Sharpener Assembly Drawing... 11 Two Drawer Base Parts List... 12 DT-1 Diamond Truing Tool... 13 KJ-1 Knife Jig ... 14 GJ-1 Gouge Jig ... -
Page 4: Warnings
Warnings 1. Read and understand the entire owner's manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. -
Page 5: Introduction
- - SAVE THESE INSTRUCTIONS - - Introduction This manual contains the parts list and breakdown for the JET JSSG-10 Wet sharpener. This machine has been designed and constructed to provide years of trouble free operation if used in accordance with instructions set forth in this manual. If there are any questions or comments, please contact either your local supplier or WMH Tool Group. -
Page 6: Unpacking
Unpacking Separate all parts from the packing material. Remove the storage tray and the foam bracing from near the motor. Check each part against Table 1. Make certain that all items in the Standard column are included in the shipping container and accounted for before discarding any packing material. Note: Optional Accessories are available for purchase by calling the number on the back of this manual. - Page 7 Standard Components and Optional Accessories Item Stock No Model No 708015 JSSG-10 708016 AB-2- 2 708042 708043 708024 MC-1 708018 DT-1 708031 AJ-1 708025 STJ-1 708019 KJ-1 708021 708039 SA-1 708020 GJ-1 708028 PLH-1 708040 SAE-1 708017 SG-1 708029 SEJ-1...
-
Page 8: Electrical
Electrical Connections The JSSG-10 Wet Sharpening is rated at 115V, 1Ph. These grinders are designed for use on a circuit with an outlet that looks the one shown in Fig. A. and have a grounding prong, also shown in Fig. -
Page 9: Parts And Assembly
Parts and Assembly JSSG-10 Wet Sharpener Parts List Stock # 708015 Index No Part No 1..708015-101...Spacer..1 2..708015-102...Bushing ..2 3 ...708015-103...Motor Mount Shaft ..1 4 ...708015-104...Carbon Brush Cover ..2 5 ...708015-105...Carbon Brush ..2 6 ...708015-106...Carbon Brush Holder ... - Page 10 JSSG-10 Wet Sharpener Parts List (Continued) Index No Part No 49 ...708015-149...Rubber Foot ..4 50 ...708015-150...Torque Adjusting Knob ..1 51 ...708039 ...SA-1: Support Arm Assembly ..1 52 ...708015-152...Drawer..1 ...708017 ...SG-1: Stone Grader (Not Shown) ..1 ...708029 ...SEJ-1: Straight Edge Jig (Not Shown)...
-
Page 12: Two Drawer Base Parts List
Two Drawer Base Parts List Stock # 708016 Index No Part No Description Size 1..708016-101...Knob..4 2..708016-102...Base Top Cover ..1 3 ...708016-103...Cord Wrap Bracket ..2 4 ...708016-104...Self-Tapping Screw... ST4x10... 4 5 ...TS-1532032 ...Pan Head Machine Screw ... M4x10 ... 20 6 ...TS-1540041 ...Hex Nut ... -
Page 13: Diamond Truing Tool
DT-1 Diamond Truing Tool Stock # 708018 Index No Part No Description Size 1..708018-101...Lock Screw..1 2..708018-102...Diamond Tip..1 3 ...708015-110...Knob w/M6 Bolt Insert..2 4 ...708018-104...Holder..1 5 ...708018-105...Square Tube ..1 6 ...708018-106...Tube End Cover... -
Page 14: Knife Jig
KJ-1 Knife Jig Stock # 708019 Index No Part No Description Size 1..708019-101...Knob..1 2..708019-102...Adjusting Knob..1 3 ...708019-103...Top Plate..1 4 ...708019-104...Knob..1 5 ...708019-105...Handle..1 6 ...708019-106...Bottom Plate..1 7 ...708019-107...Brass Insert ..2 8 ...708019-108...Cone Spring ... -
Page 15: Gouge Jig
GJ-1 Gouge Jig Stock # 708020 Index No Part No Description Size 1..708020-101...Knob..1 2 ...708020-102...Brass Insert ..1 3 ...708020-103...Body ..1 4 ...708020-104...Rubber Ring ..1 5 ...708020-105...Brass End Piece ..1 6 ...TS-1540041 ...Hex Nut ... -
Page 16: Lkj Long Knife Jig
LKJ Long Knife Jig Stock # 708021 Index No Part No Description Size 1..708021-101...Top Plate..1 2 ...708019-102...Adjusting Knob..1 3 ...708019-101...Knob..1 4 ...708019-107...Brass Insert ..2 5 ...708021-105...Bottom Plate..1 6 ...708019-108...Cone Spring ..2 7 ...708019-105...Handle... -
Page 17: Stj-1 Carving Tool Jig
STJ-1 Carving Tool Jig Stock # 708025 Index No Part No 1..708016-101...Knob..1 2 ...708025-102...Body ..1 3 ...708025-103...Brass Insert ..1 STJ-1 – Short Tool Jig SJ-1 Scissors Jig Stock # 708026 Index No Part No 1. -
Page 18: Swgj-1 Side Wheel Grinding Jig
SWGJ-1 Side Wheel Grinding Jig Stock # 708027 Index No Part No 1..708015-110...Knob w/M6 Bolt Insert..2 2 ...708027-102...Holder..1 3 ...708027-103...Bar..1 PLH-1 Profiled Leather Honing Wheel Stock # 708028 Index No Part No 1..708028-101...Washer... 35mm OD ... 2 2 ...708028-102...Leather Wheel... -
Page 19: Sej-1 Straight Edge Jig
SEJ-1 Straight Edge Jig Stock # 708029 Index No Part No 1..708029-101...Bushing ..2 2 ...708029-102...Bottom Plate..1 3 ...708029-103...Knob..2 4 ...708029-104...Top Plate..1 5 ...708019-108...Cone Spring ..2 AJ-1 Axe Jig Stock # 708031 Index No Part No 1. -
Page 20: Pcj-1 Plane Camber Jig
PCJ-1 Plane Camber Jig Stock # 708032 Index No Part No 1..708029-104...Top Plate..1 2 ...708029-103...Knob..4 3 ...708032-103...Rubber Rest ..2 4 ...708032-104...Middle Plate ..1 5 ...708032-105...Bottom Plate..1 6 ...708029-101...Bushing ..2 7 ...708032-107...Lock Plate Brass Insert ... -
Page 21: Tool Rest
TR-1 Tool Rest Stock # 708034 Index No Part No 1..708015-110...Knob w/M6 Bolt Insert..1 2 ...708034-102...Tool Rest..1 SA-1 Support Arm Assembly Stock # 708039 Index No Part No 1..708039-101...Support Arm ..1 2 ...708039-102...Adjusting Nut..1 Description Description Size... -
Page 22: Sae-1 Support Arm Extension Assembly
SAE-1 Support Arm Extension Assembly Stock # 708040 Index No Part No Description Size 1 ...708040-101...Extension Bar..1 2 ...708040-102...Extension Bar Base ..1 3 ...708015-110...Knob w/M6 Bolt Insert..2... -
Page 24: Replacement Parts
Replacement Parts To order parts or reach our service department, call 800-274-6848 between 7:30 a.m. and 5:30 p.m. (CST), Monday through Friday. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60123...
