About the IE-MiniMc

The IE-MiniMc Industrial Ethernet miniature media converter features 10/100
switching copper-to-fiber conversion. It offers plug-and-play operation, and can
function as a PD device; it is compliant to the IEEE 802.3af Power over Ethernet (PoE)
standard.
The IE represents the unit's use as an Industrial Ethernet device, which allows for
extended temperature operation of -25°C to +85°C (-10°C to +50°C when using the
included AC adapter).

Installing the IE-MiniMc

The IE-MiniMc installs virtually anywhere as a standalone device in locations with
extremely limited space. Installation options include:
•
Velcro strips
•
DIN rail mounting with DIN Rail clips
•
A wall mount bracket
•
A PowerTray/18 for high density applications

Hardware Mounting Options

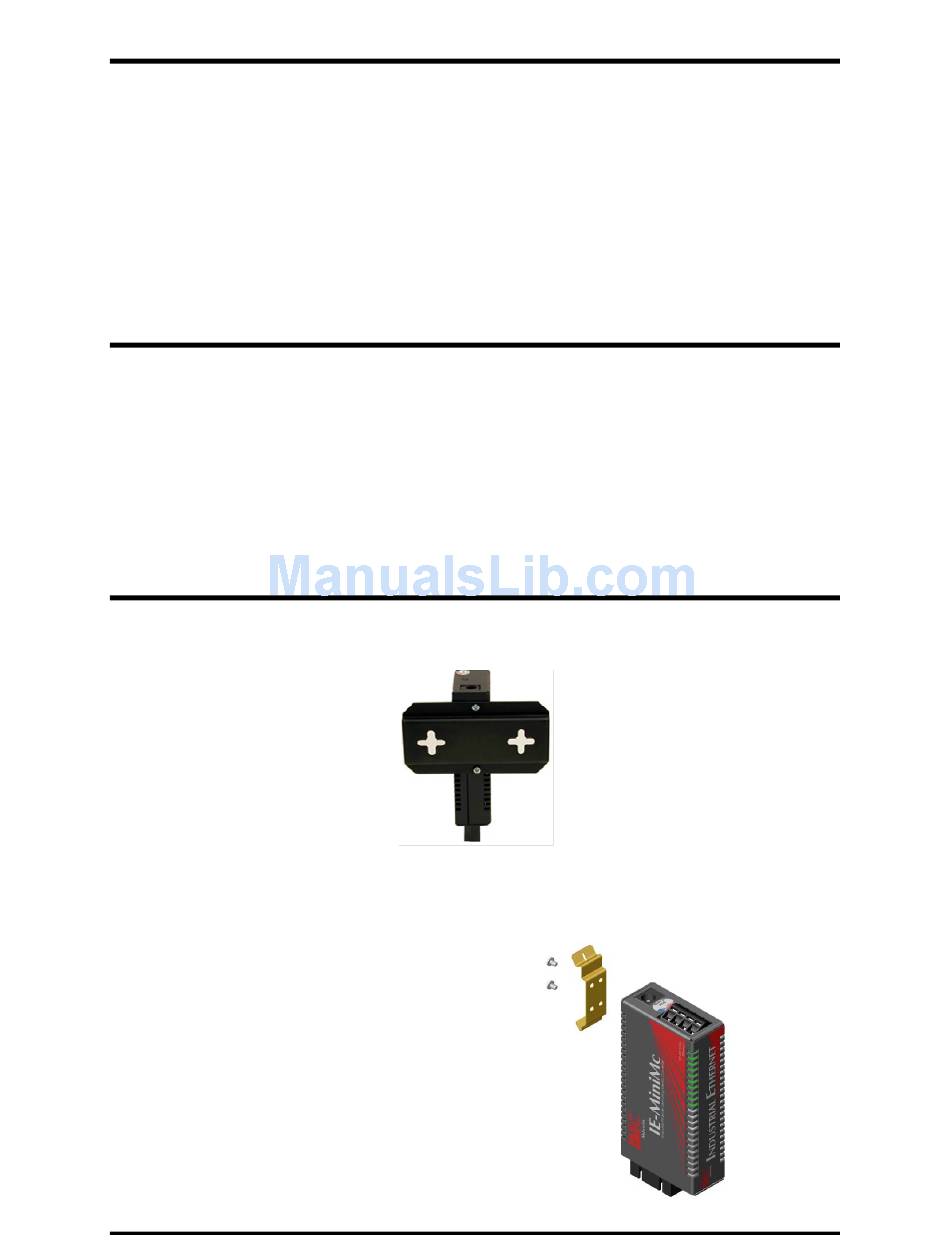

The IE-MiniMc can be mounted on a DIN rail or using wall mount brackets (shown
below).
DIN rail clips (part number 806-39105) and wall mount brackets (part number 895-
39229) are available for purchase through an IMC Networks Distributor.
The DIN Rail clips include screws, to allow the
installation onto a DIN Rail. Install the screws
into DIN Rail clips, which should be mounted
parallel or perpendicular to the DIN Rail. Snap
the converter onto the clips. To remove the
converter from the DIN Rail, use a flat-head
screwdriver into the slot to gently pry the
converter from the rail.
1
