PCI Dev Indicates the PCI Device assigned by the system BIOS to an adapter (range
0x00 - 0x1F, 0 - 31 decimal)
PCI Fnc Indicates the PCI Function assigned by the system BIOS to an adapter (range
0x00 - 0x7, 0 - 7 decimal)
FW Revision Displays the Fusion MPT firmware version and type (IR or IT)
Status Indicates whether the adapter is or is not eligible for software control (Enabled,
Disabled, or Error)
Enabled
Disabled
Error

Adapter Properties Screen

The Adapter Properties screen enables you to view and modify adapter settings. To scan the SAS
controller's devices, select a SAS controller and press Enter. The Adapter Properties screen displays.

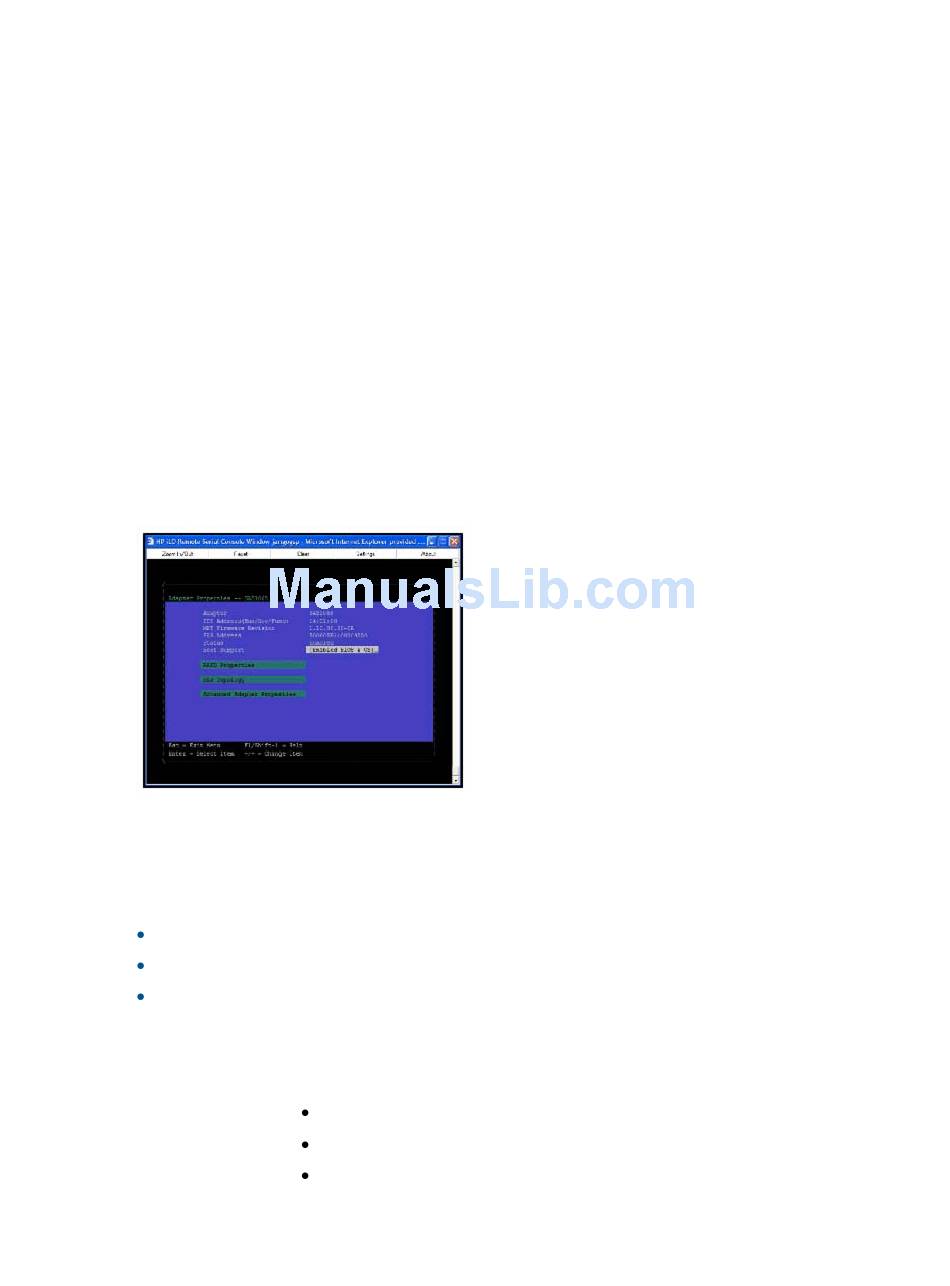

Figure 34 Adapter Properties Screen
Use the arrow keys to select RAID Properties, and press Enter to view the Select New Array Type
screen.
To access the following screens, use the arrow keys to select the screen, and press Enter for the
appropriate field:
RAID Properties
SAS Topology
Advanced Adapter Properties
The following are descriptions for the Adapter Properties screen.
Adapter Indicates the specific SAS Controller type.
PCI Address Displays the PCI Address assigned by the system BIOS to the adapter.
FW Revision Displays the MPT firmware version and type, using the format
x.xx.xx.xx-yy.
Indicates the EFI Driver is controlling the adapter or will attempt
to control the adapter upon reload
Indicates the EFI Driver is not controlling the adapter or will
discontinue control of the adapter upon reload
Indicates the EFI Driver encountered a problem with the adapter.
Viewing and modifying settings for the adapter is allowed but
the information and functionality available may be limited
Bus value range 0x00 - 0xFF, 0 - 255 decimal
Device value range 0x00 - 0x1F, 0 - 31 decimal
Function range 0x00 - 0x7, 0 - 7 decimal
