3.

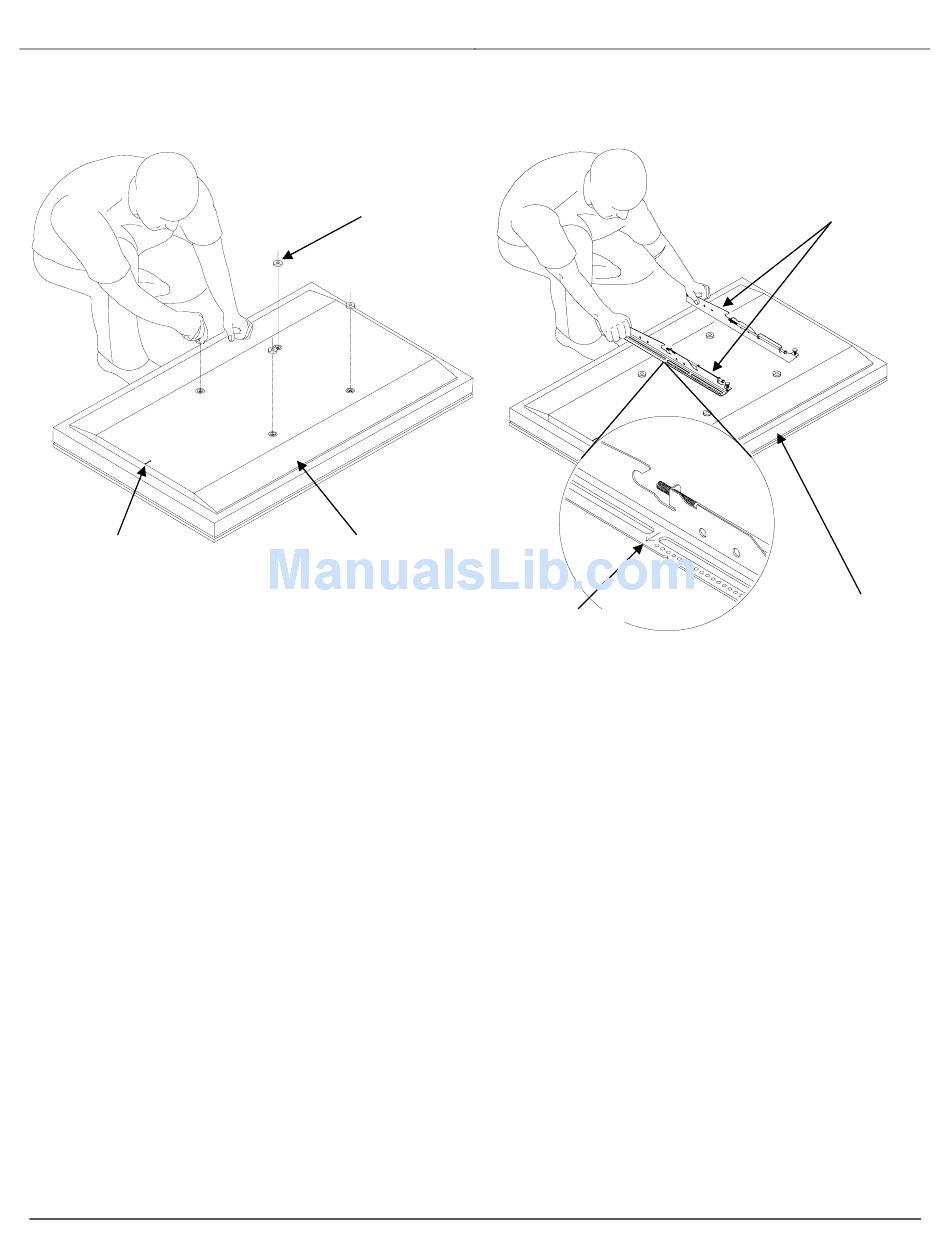

If needed, install the nylon spacers to the mounting points on the flat panel (Figure 3).
4.
Lay the left and right mounting brackets (stamped arrows facing out) - (Figure 4).
Center Mark
5.
Match the center of viewing guide with the centerline you marked in step 1 (Figure 5).
6.
The mounting brackets are designed with a center of viewing guide on the side of them (Figure 6).
Page - 8 -
Nylon Spacers, If Applicable
Inverted Flat Panel
Figure 3
Arrows Facing Out
Figure 4
PWM-F110
Mounting Brackets
Bottom of Flat Panel
Installation Manual
