Wall Stud Location
1.
Using a (commercially available) wood stud finder, locate four 16" or 24" stud centers behind the wall.
Once found, make a pencil marking on the center of the wood studs (Figure 9).
NOTE:
The wall plates have (3) 16" and (1) 24" mounting slot positions (see Technical Specifications on
Page 17)
2.
Measure from the floor to the desired viewing height and mark the wall.
NOTE:
This marking will reference the center of your flat panel display once mounted on the wall
(Figure 10).
Wood Stud Finder
(Commercially available)

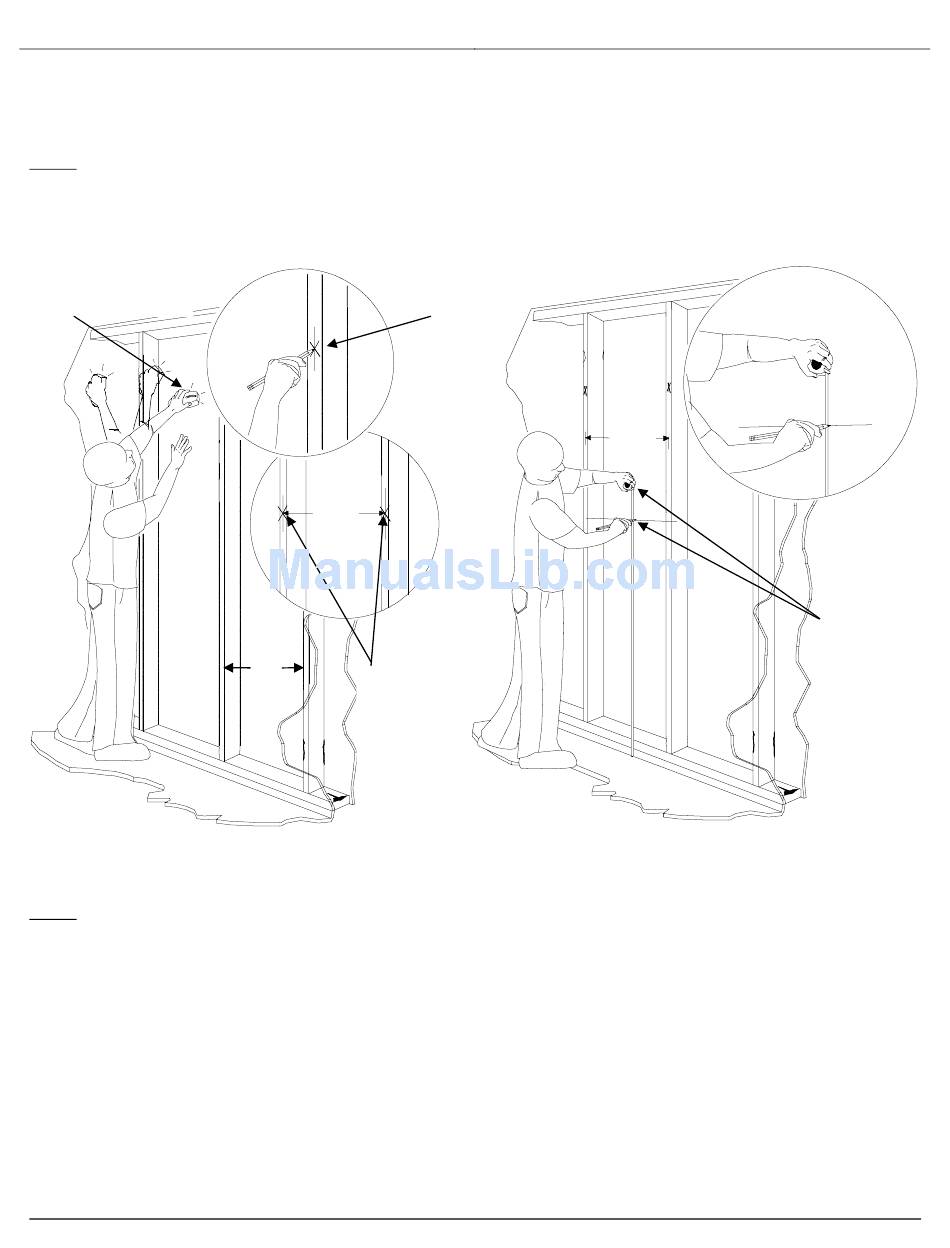

Figure 9
NOTE:
Although not depicted in the illustrations shown above, the width of this wall mount will
encompass four wall studs (three wall studs if 24" apart).
Page - 10 -
Mark the wall and
the center of the
wood studs.
16"
"
16
"
16
Wood studs
behind the
wall
structure.
"
16
16"
Figure 10
Installation Manual
PWM-F110
Measure and
mark the
viewing height
desired on the
wall.
