Polycom PowerCam Presenter User Manual page 9

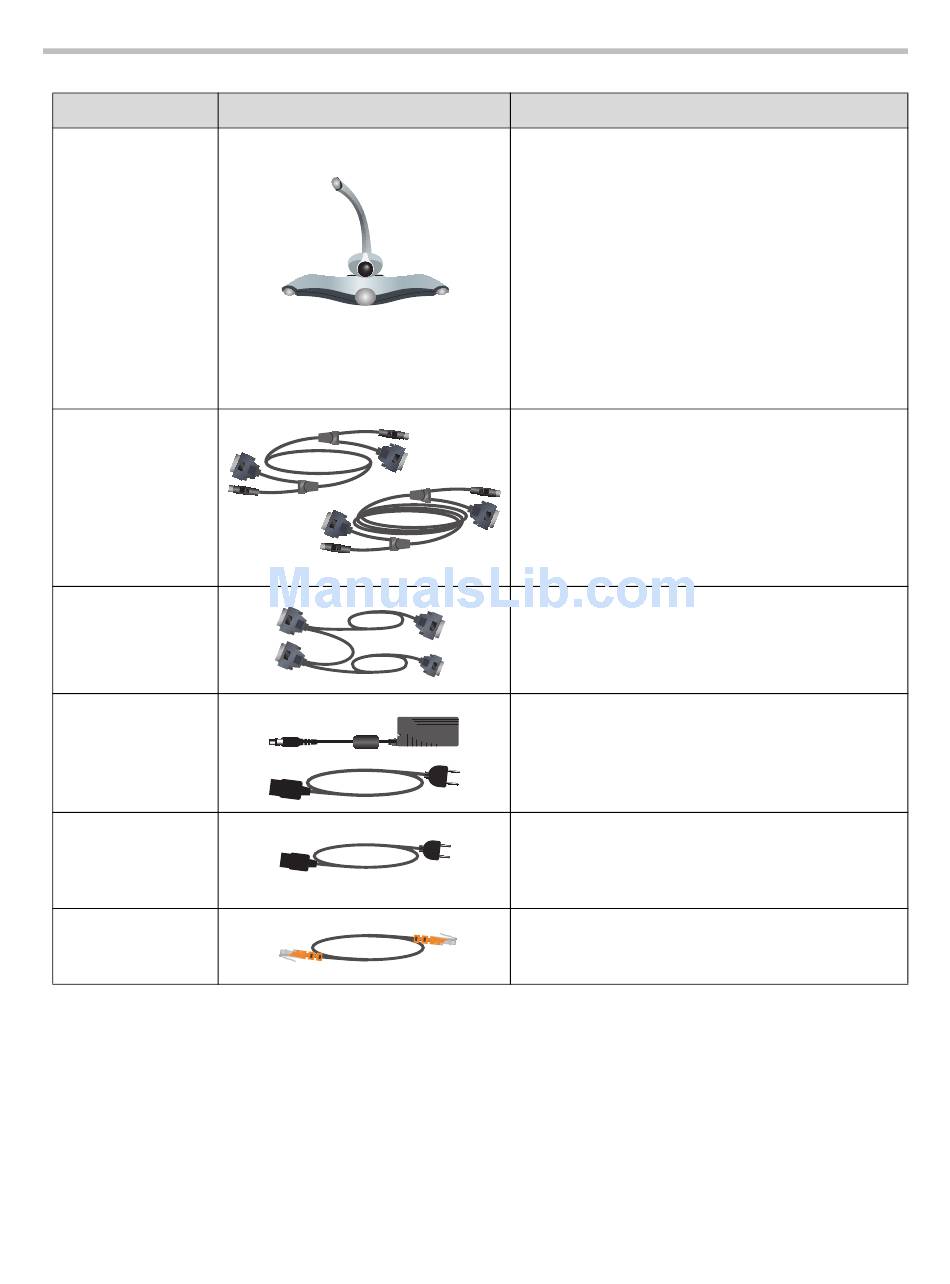

Name Component
Camera
(NTSC or PAL
version)
Camera cables
Camera adapter
cable
Camera power
supply and power
cable
Controller power
cable
LAN cable
Introducing the Polycom PowerCam Presenter
Description
The camera has several main functions:
• Provides an S-video (PAL or NTSC) or composite
video signal.
• Points the camera head in response to
commands from the controller to change the pan,
tilt, or zoom.
• Provides a microphone array, which sends the
ultrasound signals received from the locator pack
assembly to the controller box.
• Provides an IR receiver, which sends the IR
signals received from the remote control to the
controller.
In a configuration where you are not using a VSX
video conferencing system, the camera cable
connects to the camera. In a configuration where
you are using a VSX video conferencing system,
one camera cable connects to the camera and the
other connects to the VSX system. In either
configuration, you can use the 10-foot or 100-foot
cable interchangeably.
In a configuration where you are using a VSX video
conferencing system, the camera adapter cable
enables you to connect both the camera and the
VSX system to the controller.
The camera power supply and power cable
connect power to the camera.
The controller power cable connects power to the
controller. Your PowerCam Presenter shipping
boxes contain power cables for various countries;
use the cable that's appropriate for your country.
The LAN cable enables you to connect your
PowerCam Presenter to an IP network. The LAN
connection is not for making video calls.
1 - 3
