Installing on an I-Beam

Items provided :
Items needed :
1. Attach a beam clamp to the center of the top and bottom
flanges on the outdoor enclosure.
2. Attach a second beam clamp to each of the beam clamps on the

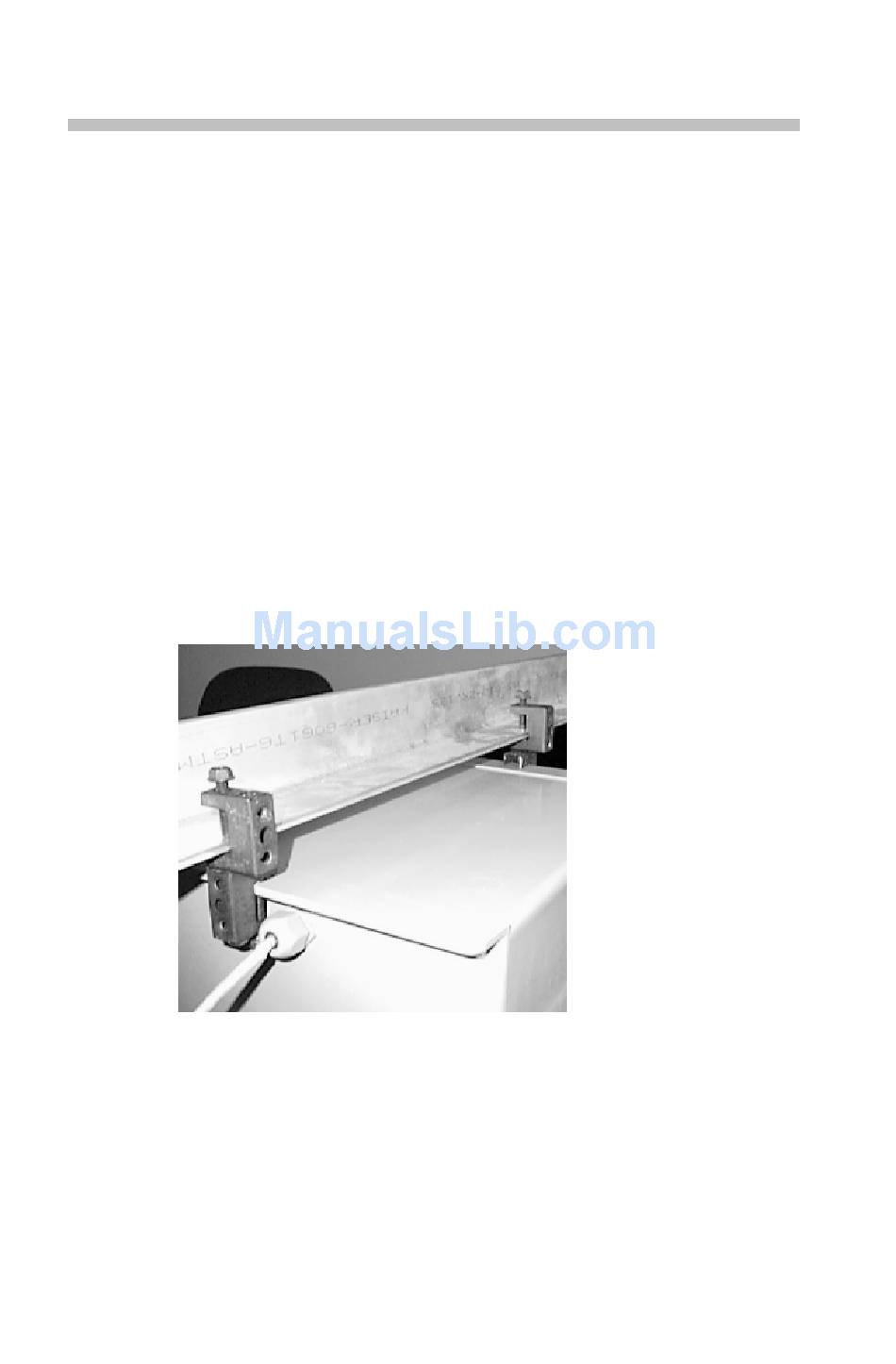

enclosure using a 1/2" long 1/4" x 20 bolt and a nut. (See
figure below.)
3. Attach the outdoor enclosure to I-beam using the beam clamps
attached in step 2.
See figures in Chapter 1 for pictorial data for the remaining steps:
4. Slide the Base Station cable through the compression fitting
and tighten the fitting.
5. Crimp on RJ45 onto the Base Station cable using the same
wiring guide as the indoor Base Station.
6. Plug the RJ45 into the RJ48C connector.
8
Outdoor enclosure, Base Station
4 – "Caddy" or "B-Line" 3/8" Beam Clamps
4 – 1/2" long 1/4" x 20 bolts
4 – 2" long 1/4" x 20 bolts
4 – 1/4" x 20 nuts
