Installing on a Light Pole or
Electrical Pole
Items provided:
Items needed:
1. Attach one band to the top flange of the outdoor enclosure

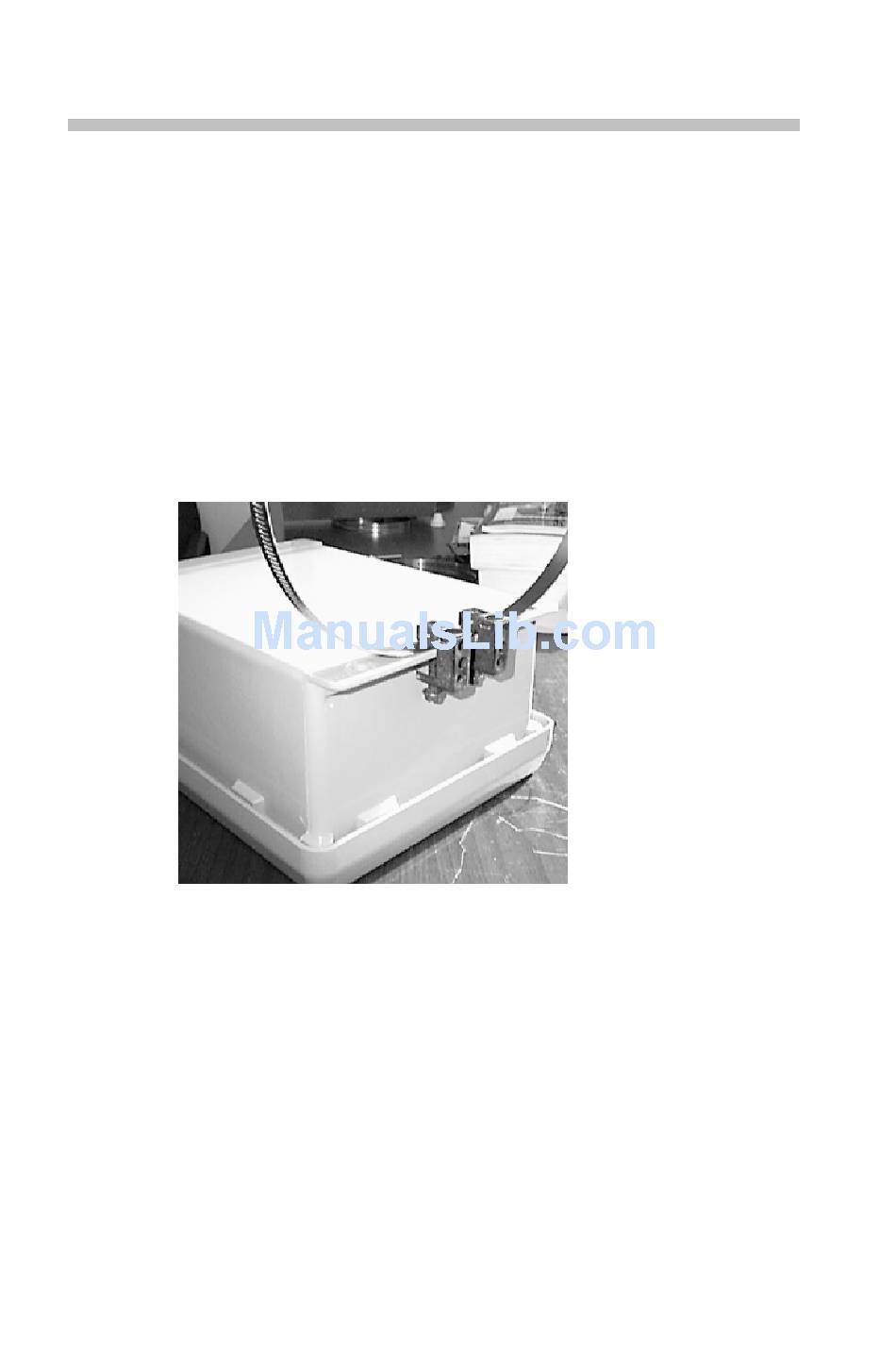

using two beam clamps (see the figure below).
2. Attach the second band to the bottom flange of the enclosure
using the remaining two beam clamps.
3. Wrap the band clamps around the pole and tighten using the
screw on the band clamps.
See figures in Chapter 1 for pictorial data for the remaining steps:
4. Slide the Base Station cable through the compression fitting
and tighten the fitting.
5. Crimp an RJ45 onto the Base Station cable using the same
wiring guide as the indoor Base Station.
6. Plug the RJ45 into the RJ48C connector.
10
Outdoor enclosure, Base Station
4 - "Caddy" or "B-Line" 3/8" beam clamps
2 - EOG 100 or equivalent band clamps
3
