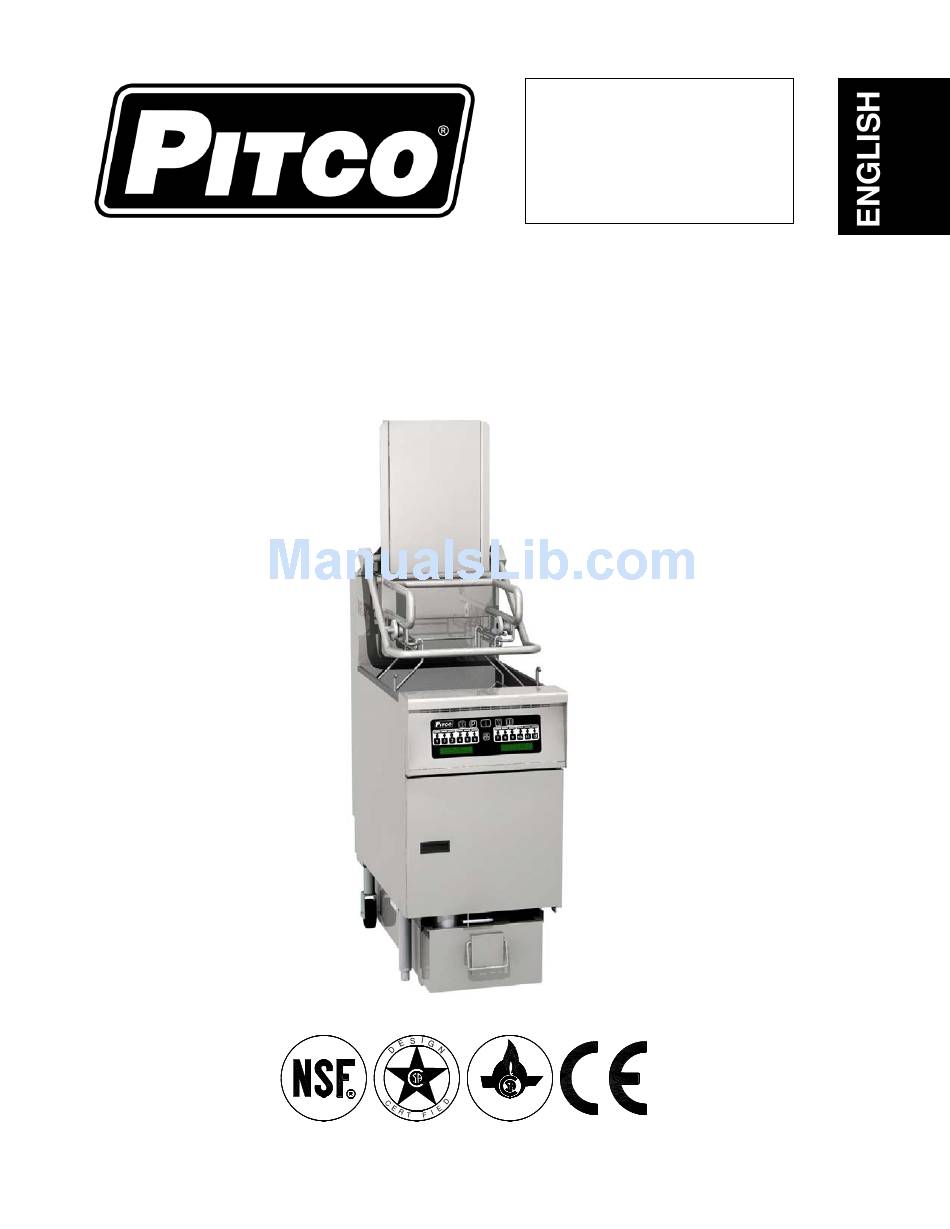

Installation & Operation Manual
SG6H: Solstice Gas Fryer
SFSG6H: Solstice Gas Fryer with Filter
L20-332, rev. 1 (05/11)
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual
for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
Built after 3/2009

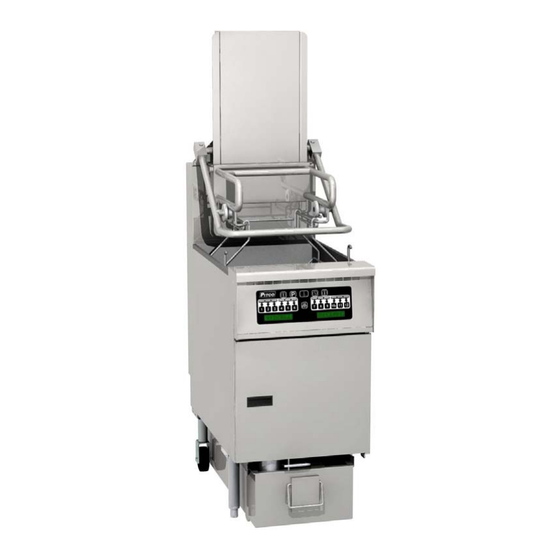

SFSG6H Shown
C
E
R
T
I
F
I
E D
I
