Summary of Contents for Kramer SL-12
-
Page 1: User Manual

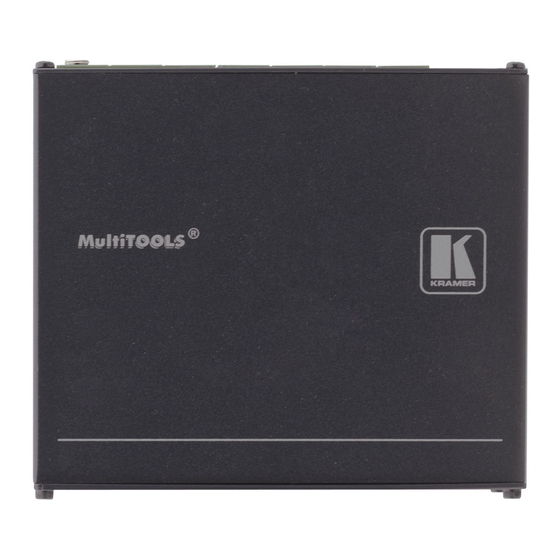

Kramer Electronics, Ltd. Preliminary USER MANUAL Model: SL-12 Master Room Controller... -
Page 2: Table Of Contents
Connecting the K-NET Port Operating the SL-12 Master Room Controller Technical Specifications Figures Figure 1: SL-12 Master Room Controller Figure 2: Connecting the SL-12 Master Room Controller Figure 3: RS-232 Connection Figure 4: RS-485 Connection Figure 5: K-NET Pinout Connection Tables... -
Page 3: Introduction
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The SL-12 is a highly versatile controller that acts as an all-in-one control processor for control of A/V equipment—especially projectors and associated equipment—in any room (such as classrooms, boardrooms, or auditoriums). It streamlines operations and simplifies control by integrating audio, video, and computer-video sources into a centralized system. -
Page 6: Your Sl-12 Master Room Controller
2 K-NET is a proprietary Kramer protocol for interconnecting Kramer units 3 The ground connection is sometimes connected to the shield of the RS-485 cable (in most applications, it is not connected) -
Page 7: Connecting The Sl-12 Master Room Controller
Connect IR INPUT 2 to IR sensor 1 Switch OFF the power on each device before connecting it to your SL-12. After connecting your SL-12, switch on its power and then switch on the power on each device 2 P/N: C-A35/IRE-10; two IR Emitter Extension Cables are also available: a 15 meter cable and a 20 meter cable... -
Page 8: Figure 2: Connecting The Sl-12 Master Room Controller
Connect RS-232 port 1 to the projector Connect RS-232 port 3 to the plasma display 6. Connect the RS-485 to several Kramer matrices, for example 7. Connect the Ethernet port to a network. 8. Connect the K-NET port to any RC device with K-NET. -
Page 9: 5.1 Using The Rc-4 Ir Transmitter
, which exists in several cable lengths. Connecting the RS-232 Interface To connect an AV device to the SL-12 using the RS-232 port, connect the RS-232 9-pin D-sub port on your device to the RS-232 terminal block on the rear panel of the SL-12 as shown in... -
Page 10: Connecting The Ethernet Port
Site-CTRL control program. To connect the SL-12 to a network: 1. Connect the Ethernet port of the SL-12 to the Ethernet port on a network hub or network router, via a straight cable with RJ-45 connectors. 2. At the other end, connect the Internet to a PC running Site-CTRL. -
Page 11: Operating The Sl-12 Master Room Controller
Operating the SL-12 Master Room Controller You can operate your SL-12 using: • An RC family remote controller: To operate your device using an RC remote controller, see the Kramer K-Config Guide • The optional RC-4 infrared remote control transmitter... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
