Page 1: User Manual

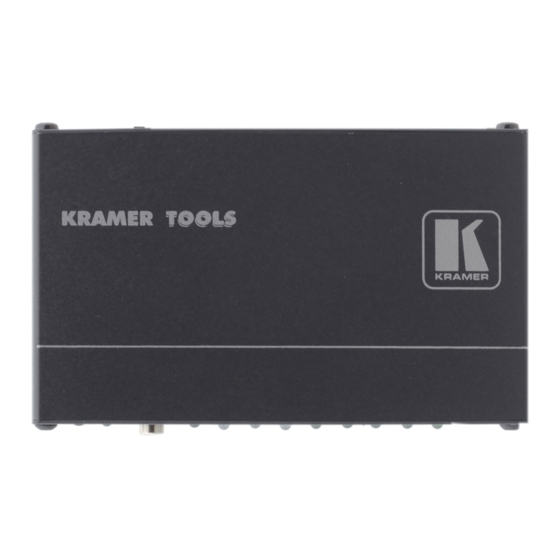

Kramer Electronics, Ltd. Preliminary USER MANUAL Model: SL-1 Master Room Controller... -
Page 2: Table Of Contents
Operating the SL-1 Master Room Controller Technical Specifications Figures Figure 1: SL-1 Master Room Controller Figure 2: Connecting the SL-1 Master Room Controller Figure 3: RS-232 Connection Figure 4: K-NET Pinout Connection Tables Table 1: SL-1 Master Room Controller Functions... -
Page 3: Introduction
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing the Kramer TOOLS SL-1 Master Room Controller, which is ideal for: • Controlling multimedia rooms, such as classrooms, auditoriums,... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The SL-1 is a highly versatile controller that acts as an all-in-one extended remote control panel for control of A/V equipment—especially projectors and associated equipment—in any room (such as classrooms, boardrooms, or auditoriums). It streamlines operations and simplifies control by integrating audio, video, and computer-video sources into a centralized system. -
Page 6: Your Sl-1 Master Room Controller
2 K-Net is a proprietary Kramer protocol for interconnecting Kramer units 3 The ground connection is sometimes connected to the shield of the RS-485 cable (in most applications, it is not connected) -
Page 7: 4.1 Using The Rc-4 Ir Transmitter
6. Connect the K-NET port to any RC device with K-NET. 1 Model: C-A35M/IRR-50 2 Model: C-A35M/A35F-50 3 Switch OFF the power on each device before connecting it to your SL-1. After connecting your SL-1, switch on its power and then switch on the power on each device... -
Page 8: Connecting The Rs-232 Interface
Figure 2: Connecting the SL-1 Master Room Controller Connecting the RS-232 Interface To connect an AV device to the SL-1, connect the RS-232 9-pin D-sub port on your device to the RS-232 terminal block on the rear panel of the SL-1 controller as shown in Figure... -
Page 9: Connecting The Ethernet Port
Site-CTRL control program. To connect the SL-1 to a network: 1. Connect the Ethernet port of the SL-1 to the Ethernet port on a network hub or network router, via a straight cable with RJ-45 connectors. 2. At the other end, connect the Internet to a PC running Site-CTRL. -
Page 10: Operating The Sl-1 Master Room Controller
Technical Specifications The SL-1 technical specifications are shown in Table Table 2: SL-1 Master Room Controller Technical Specifications INPUTS: 2 RS-232 and K-NET on terminal block connectors; Ethernet on an RJ-45 connector; 1 infrared sensor, 1 infrared on a 3.5mm mini jack connector; 1... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
