- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: SL-10 Master Room Controller P/N: 2900-000581 Rev 6...
-
Page 3: Table Of Contents
Connecting the K-NET Port Operating the SL-10 Technical Specifications Figures Figure 1: SL-10 Master Room Controller Figure 2: Connecting the SL-10 Master Room Controller Figure 3: RS-232 Connection Figure 4: RS-485 Connection Figure 5: K-NET PINOUT Connection SL-10 – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer SL-10 Master Room Controller, which is ideal for the following typical applications: •... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer SL-10 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling/. -
Page 7: Overview
Overview The SL-10 is a highly versatile controller that acts as an all-in-one control processor for control of A/V equipment—especially projectors and associated equipment—in any room (such as classrooms, boardrooms, or auditoriums). It streamlines operations and simplifies control by integrating audio, video, and computer-video sources into a centralized system. -
Page 8: Defining The Sl-10 Master Room Controller

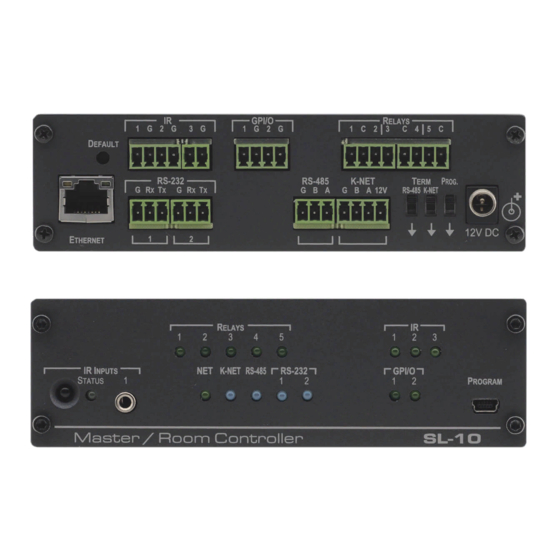

Defining the SL-10 Master Room Controller This section defines the SL-10. Figure 1: SL-10 Master Room Controller Feature Function ETHERNET RJ-45 Connector Connects to the PC or other serial controller through computer networking LAN to control several AV products over Ethernet DEFAULT Recessed Pushbutton Press to reset to factory default definitions: IP number −... - Page 9 The ground connection is sometimes connected to the shield of the RS-485 cable (in most applications, it is not connected) Note that the SL-10 cannot receive power via the K-NET connector, but can power other units (but not another SL-10)
-
Page 10: Connecting The
Connecting the SL-10 Always switch off the power to each device before connecting it to your SL-10. After connecting your SL-10, connect its power and then switch on the power to each device. To connect the SL-10 as illustrated in the example in Figure 1. -
Page 11: Using The Rc-4 Ir Transmitter
Figure Connecting the RS-232 Interface To connect an AV device to the SL-10 using the RS-232 port, connect the RS-232 9-pin D-sub port on your device to the RS-232 terminal block on the rear panel of the SL-10 as shown in... -
Page 12: Connecting The Rs-485 Interface
Figure 3: RS-232 Connection Connecting the RS-485 Interface To connect an AV device to the SL-10 using the RS-485 port, connect the RS-485 port on your device to the RS-485 terminal block on the rear panel of the SL-10 as shown in Figure... -
Page 13: Connecting The K-Net Port
After connecting the Ethernet port, you have to install and configure it. For detailed instructions on how to install and configure your Ethernet port, see the K-Config Guide. Available for download at the Kramer Web site: www.kramerav.com. Connecting the K-NET Port... -
Page 14: Operating The
Operating the SL-10 You can operate your SL-10 using: • An RC family remote controller: To operate your device using an RC remote controller, see the Kramer K-Config Guide Available for download at the Kramer Web site: www.kramerav.com • The optional RC-4 infrared remote control transmitter:... -
Page 15: Technical Specifications
RK-13 19” rack mount, RC-3 remote controller, IR emitter cables P/N: C-A35/IRE-10; two IR Emitter Extension Cables are also available: a 15 meter cable and a 20 meter cable, IR sensor cable P/N: 95-0104050 Specifications are subject to change without notice at www.kramerav.com SL-10 - Technical Specifications... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerav.com E-mail: info@kramerel.com SAFETY WARNING...
