Runco VideoXtreme VX-11d Installation & Operation Manual
  1. Manuals
  2. Brands
  3. Runco Manuals
  4. Projector
  5. VX-11d
  6. Installation & operation manual

Runco VideoXtreme VX-11d Installation & Operation Manual

Dlp home theater projector and digital high definition (dhd) controller/scaler/processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
I
/ O
M
N S T A L L A T I O N
P E R A T I O N
A N U A L

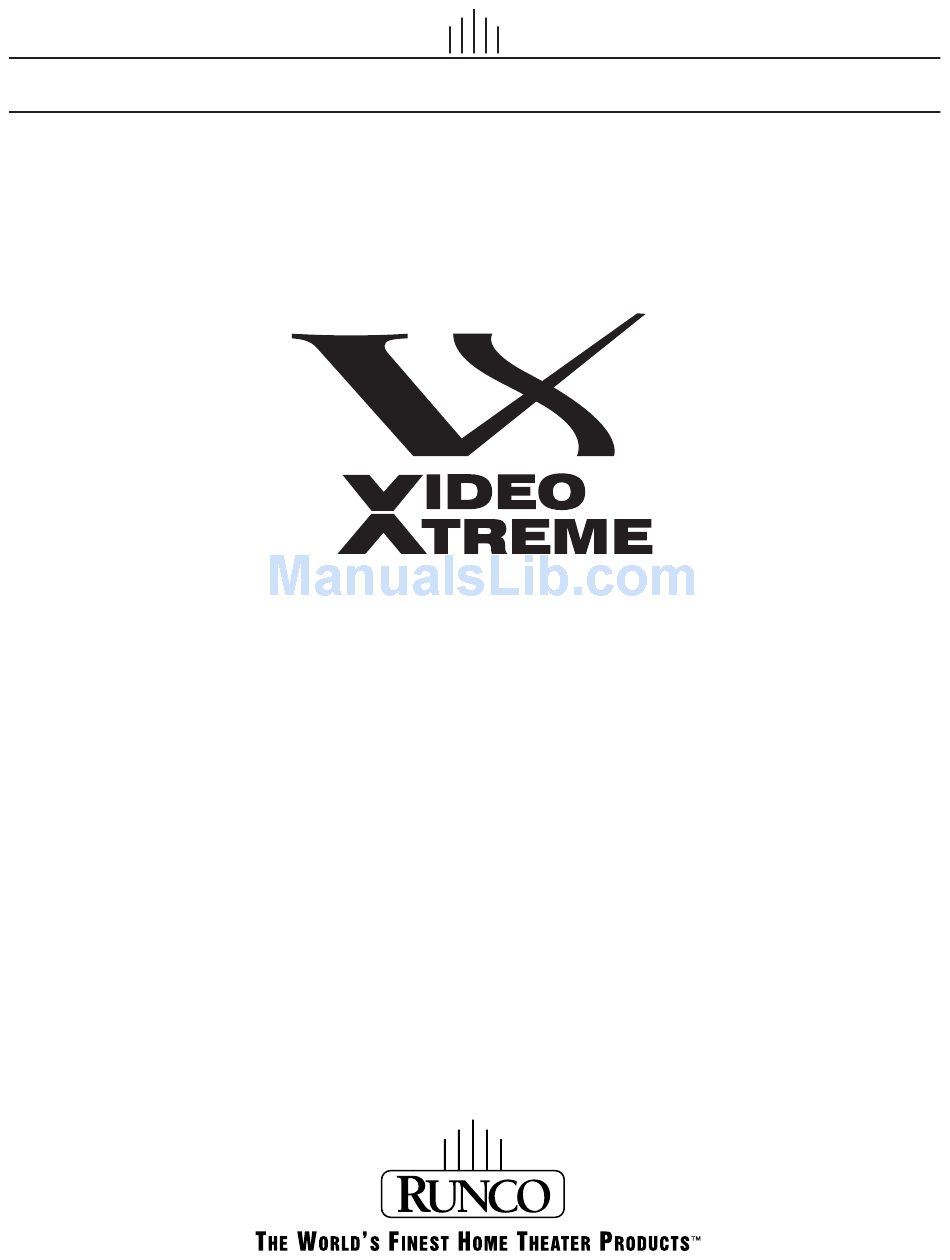

VX-11d
DLP
Home Theater Projector
TM
and Digital High Definition (DHD™) Controller/Scaler/Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VideoXtreme VX-11d and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Runco VideoXtreme VX-11d

Summary of Contents for Runco VideoXtreme VX-11d

  • Page 1 N S T A L L A T I O N P E R A T I O N A N U A L VX-11d Home Theater Projector and Digital High Definition (DHD™) Controller/Scaler/Processor...

  • Page 3: Runcocare™ Standard Two Year Limited Warranty

    (if any). You may be required to provide proof of purchase in order to receive warranty services. 1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates will not apply on a retroactive basis.
  • Page 4 Once an RMA has been created, RMA status is available at serviceorders@runco.com. • If an RMA is issued, the dealer or customer will need to return the defective product to the Runco repair depot location specified by the Runco technical support representative. The dealer or customer will need to properly package the defective product in a suitable shipping container consisting of the product only, and not include any accessories (e.g., cables,...
  • Page 5 Other Terms and Conditions 1. If the defective product is not properly packaged and is damaged in transit during its return to Runco, you may be invoiced for either the repair costs, if repairable, or the MSRP of a replacement product and shipping costs incurred by Runco.
  • Page 6 Runco. The trademarks reproduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

  • Page 7: Important Safety Instructions

    Important Safety Instructions Thank you for your purchase of this quality Runco video product! For the best performance, please read this manual carefully as it is your guide through the menus and operation. WARNING This symbol is intended to alert the user to the presence of CAUTION uninsulated “dangerous voltage”...

  • Page 8: Compliance Information

    Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety; EN 60950 “Safety of information technology equipment, including electrical business equipment” The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International, LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.
  • Page 9 The recycling of materials will help to conserve natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Runco VX-11d Installation/Operation Manual...
  • Page 10 Notes: Runco VX-11d Installation/Operation Manual...

  • Page 11: Table Of Contents

    Description, Features and Benefits ................3 Key Features and Benefits ..................4 Parts List ........................4 2. Controls and Functions ....................5 VX-11d at a Glance ......................5 VX-11d Rear Panel .......................7 DHD Controller Front Panel ..................8 DHD Controller Rear Panel ...................9 VX-11d Remote Control Unit ..................11 3.
  • Page 12 Table of Contents Installing the Optional CineWide Lens Mount ..............24 Installing the AutoScope Lens Motor (VX-11d/CineWide with AutoScope).....24 Installing the Fixed CineWide Base Plate (VX-11d/CineWide) ........27 Mounting the VX-11d ....................28 Floor Mounting (Upright) ..................28 Ceiling Mounting (Inverted)..................28 Installing the Projector in an Enclosure ..............28 Adjusting the Projection Angle ................28...
  • Page 13 Using Discrete IR Codes ....................99 IR Command Protocol ..................99 IR Command List....................101 Using HDMI CEC Messages ..................103 CEC Command List....................103 7. Specifications ......................105 VX-11d Specifications ....................105 DHD Controller Specifications ..................107 VX-11d Dimensions ....................108 Supported Timings ....................109 Runco VX-11d Installation/Operation Manual xiii...
  • Page 14 Table of Contents Notes: Runco VX-11d Installation/Operation Manual...
  • Page 15 3-3. Vertical Lens Shift (EXAMPLE ONLY) ................20 3-4. Horizontal Lens Shift (EXAMPLE ONLY)..............21 3-5. Folded Optics......................22 3-6. VX-11d/CineWide with AutoScope Motor Assembly – Exploded View ......24 3-7. Installing the Ceiling Mount Adapters/Projector Stands..........25 3-8. AutoScope Lens Motor Installation ................26 3-9. VX-11d/CineWide with Anamorphic Lens Base Plate and Ceiling Mounting Rails - Exploded View ...............27...
  • Page 16 List of Figures 4-5. Typical Test Pattern for Adjusting Sharpness..............60 4-6. Overscan Modes ......................61 4-7. CIE 1931 Chromaticity Diagram .................66 6-1. RC5 Message Format ....................100 7-1. VX-11d Dimensions....................108 Runco VX-11d Installation/Operation Manual...

  • Page 17: Introduction

    Target Audience most out of the VX-11d. Runco has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time. You can always find the latest version of this and other Runco product manuals on-line, at www.runco.com.

  • Page 18: Using This Manual

    Use the following table to locate the specific information you need in this manual. Using This Manual If you need..Turn to page: Information about obtaining service General information about the Video Extreme™ Series VX-11d Home Theater Projector and DHD Controller Installation instructions First-time configuration instructions Advanced configuration instructions Troubleshooting tips...

  • Page 19: Description, Features And Benefits

    1.78:1 (16:9) program material to superwide 2.35:1, the image simply gets wider while full screen height is maintained, eliminating useless black bars on the top and bottom of the screen. Also available with the VX-11d is CineWide with AutoScope™, an enhanced, remote-controlled motorized version of CineWide.

  • Page 20: Key Features And Benefits

    • CinOptx™ Proteus lens options for stunning sharpness and throw distance flexibility Parts List Your VX-11d is shipped with the following items. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23RUNCO.

  • Page 21: Controls And Functions

    2. Controls and Functions Figure 2-1 shows the key VX-11d components. VX-11d at a Glance Figure 2-1. VX-11d Front/Bottom/Side/Top Views Runco VX-11d Installation/Operation Manual...
  • Page 22 4. INTAKE VENT Internal fans draw cool air into the projector through this vent. 5. CEILING MOUNTING HOLES Use these to attach the ceiling bracket (if needed) to the projector. 6. CABLE OPENING Pass cables through this opening. Runco VX-11d Installation/Operation Manual...

  • Page 23: Vx-11D Rear Panel

    Controls and Functions Figure 2-2 shows the VX-11d rear panel. VX-11d Rear Panel RS-232 RS-232 DHD INPUT INPUT Figure 2-2. VX-11d Rear Panel 1. LAMP COVER Remove this cover to access the lamp compartment. 2. RS-232C INPUT (9-pin, female D-Sub) Used for performing software upgrades and other service procedures.

  • Page 24: Dhd Controller Front Panel

    Use to direct-select aspect ratios or move the menu cursor down in the OSD. When no menu is present on-screen, this button toggles through the different aspect ratios, in this order: 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema - Native Runco VX-11d Installation/Operation Manual...

  • Page 25: Dhd Controller Rear Panel

    Connection for up to three (3), 12-volt trigger-controlled devices such as retractable screens or screen masks. Output current is limited to 250 milliamperes (mA). 3. USB A standard, USB Series “B” connection to a personal computer, for performing software upgrades and other service procedures. Runco VX-11d Installation/Operation Manual...
  • Page 26 Connect this output to an audio control system to pass through HDMI audio. 14. HDMI Out (To Display) Connect this to the DHD Input on the VX-11d (see Figure 2-2). 15. RS-232 (PC / Control) A female, 9-pin D-sub connector for interfacing with a PC or automation/control system.

  • Page 27: Vx-11D Remote Control Unit

    Controls and Functions Figure 2-5 shows the VX-11d remote control, and the paragraphs that follow describe its functionality. VX-11d Remote Control Unit LIGHT RATIO RATIO EXIT MENU CUST CUST COMP HDMI HDMI SCART HDMI HDMI NATIVE 16 : 9 4 : 3...
  • Page 28 Press to recall settings for the current input from the “Custom 2” memory preset. 9. VID 1 (1) / VID 2 (2) / VID 3 (3) Press to select a composite video input as the source or to enter the numeric character “1,” “2” or “3.” Runco VX-11d Installation/Operation Manual...
  • Page 29 Enlarges a 4:3 image horizontally in a non-linear fashion to fit 16:9 full screen display. CINEMA For viewing 2.35:1 source material. V-CINE Selects the Virtual Cinema aspect ratio, used for viewing 16:9 source material on a 2.35:1 screen. Runco VX-11d Installation/Operation Manual...
  • Page 30 Controls and Functions Notes: Runco VX-11d Installation/Operation Manual...

  • Page 31: Installation

    • The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting. • Ambient conditions may possibly impede the operation of the remote control. If this happens, point the remote control at the DHD Controller, and repeat the operation. Runco VX-11d Installation/Operation Manual...

  • Page 32: Quick Setup

    Installation Table 3-1 gives a quick overview of the VX-11d installation process. The sections following this one provide detailed instructions. Quick Setup Table 3-1. Installation Overview For Details, Refer to Step Procedure page... Choose a location for the projector Install CineWide lens mounting assembly (stationary base plate or AutoScope lens motor –...

  • Page 33: Installation Considerations

    Rear Screen, Floor Mount with Mirror • Projector is completely hidden • Requires separate room • Usually good ambient light rejection • Installation cost is usually higher • Requires less space behind screen than other rear screen installations Runco VX-11d Installation/Operation Manual...

  • Page 34: Ambient Light

    Estimating Throw Distance Throw Distance (TD) = Screen Width (w) x Lens Throw Ratio Figure 3-1. Estimating Throw Distance Runco VX-11d Installation/Operation Manual...
  • Page 35 Installation Table 3-3 lists the available lens options for the VX-11d and their associated throw ratios. Table 3-3. VX-11d Lens Options and Throw Ratios (Note 1) Throw Range in Throw Range in Throw Ratio inches, with inches, with Throw Ratio with Primary 96x54-inch (1.78:1)

  • Page 36: Vertical And Horizontal Position

    Lens Shift (1.0 x H) Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example. Figure 3-3. Vertical Lens Shift (EXAMPLE ONLY) Runco VX-11d Installation/Operation Manual...

  • Page 37: Horizontal Lens Shift (Example Only)

    Figure 3-4. Horizontal Lens Shift (EXAMPLE ONLY) Vertical Lens Shift: The VX-11d zoom lenses (Proteus 2 through 6) provide up to 65% of vertical lens shift in either direction (up or down). For example, with a 96 x 54-inch (16:9) screen, you can shift the image up to 35.10 inches (0.89 meters) below the screen center.

  • Page 38: Folded Optics

    First-surface mirrors provide a strict reflection without the “ghosting” effect seen with a second surface mirror, where a faint secondary reflection could be observed coming from the front surface of the glass. Runco VX-11d Installation/Operation Manual...

  • Page 39: Audio/Video Synchronization Issues

    In order to easily Synchronization Issues solve this issue, Runco recommends using the DHD Controller with a high-quality audio receiver that has the ability to effectively synchronize audio and video signals.

  • Page 40: Installing The Optional Cinewide Lens Mount

    Installation If you are installing a standard VX-11d (without an anamorphic lens), skip this step and proceed with Mounting the VX-11d (page 28). Installing the Optional CineWide Lens Mount If you are installing a VX-11d/CineWide, proceed with Installing the Fixed CineWide Base Plate (VX-11d/CineWide) (page 27).
  • Page 41 Using eight (8) each of the supplied, Pan-Head Phillips screws, attach the AutoScope Ceiling Mount Adapters/Projector Stands to the projector as shown in Figure 3-7. Figure 3-7. Installing the Ceiling Mount Adapters/Projector Stands DO NOT OVER-TIGHTEN THE SCREWS. Caution Runco VX-11d Installation/Operation Manual...

  • Page 42: Autoscope Lens Motor Installation

    Secure the motor to the projector with the four remaining Pan-Head Phillips screws. Figure 3-8. AutoScope Lens Motor Installation After you have installed the AutoScope lens motor, proceed with Mounting the VX-11d (page 28). Runco VX-11d Installation/Operation Manual...

  • Page 43: Installing The Fixed Cinewide Base Plate (Vx-11D/Cinewide)

    Installation Figure 3-9 shows the anamorphic lens base plate assembly for a VX-11d/CineWide. Installing the Fixed CineWide Base Plate (VX-11d/CineWide) Ceiling Mount Rails (part of Ceiling Mount Kit) Screw, Phillips Pan-Head, 10-32 x 3/8” (8x) Anamorphic Lens Base Plate Figure 3-9. VX-11d/CineWide with Anamorphic Lens Base Plate and Ceiling...

  • Page 44: Mounting The Vx-11D

    For fixed installations, and for those that want the projector out of sight or have a limited (Inverted) space for projector and audience, you can invert the VX-11d and suspend it from the ceiling using a specially-designed ceiling mount fixture.

  • Page 45: Connections To The Vx-11D And Dhd Controller

    Installation Proceed as follows to connect the DHD Controller to the VX-11d, your video sources, external controller(s) – if present – and AC power. Connections to the VX-11d and DHD When connecting your equipment: Controller • Turn off all equipment before making any connections.

  • Page 46: Connecting Source Components To The Dhd Controller

    HDMI Out HDMI 2 HDMI 4 Ethernet Ethernet Audio Only Audio Only HDMI HDMI AV OUT AV OUT HDMI HDMI AV OUT AV OUT HDMI sources (BD, DVD, DTV Set-Top Box etc.) Figure 3-12. HDMI Source Connections Runco VX-11d Installation/Operation Manual...

  • Page 47: Component Video Source Connections

    HD1, HD2 and/or Component/SCART inputs as shown in Figure 3-13. TRIGGERS TRIGGERS Component / SCART Video 1 Video 1 Video 2 Video 2 Video 3 Video 3 RCA-to-BNC adapter COMPONEN T VIDEO OUT DTV-Set-Top Box (DTV-STB) BD/DVD Figure 3-13. Component Video Source Connections Runco VX-11d Installation/Operation Manual...

  • Page 48: Rgbhv Source Connections

    Installation RGBHV Source Connections: Connect personal computers and/or other RGB sources to the HD1 and/or HD2 inputs as shown in Figure 3-14. RGB Camcorder Computer Figure 3-14. RGBHV Source Connections Runco VX-11d Installation/Operation Manual...

  • Page 49: Scart Rgbs Source Connections

    SCART source to the Video 1 input on the DHD Controller. See Figure 3-15. TRIGGERS TRIGGERS Component / SCART Video 1 Video 2 Video 2 Video 3 Video 3 SCART-to-RGBS adapter Green DVD/DTV STB Blue Sync Gaming Console Figure 3-15. SCART RGBS Source Connections Runco VX-11d Installation/Operation Manual...

  • Page 50: Composite Video Source Connections

    Composite Source Connections: See Figure 3-16. TRIGGERS TRIGGERS Component / SCART Component / SCART HDMI 1 HDMI 1 Video 1 Video 2 Video 3 HDMI 2 HDMI 2 Composite Camcorder Composite Composite Gaming Console Figure 3-16. Composite Video Source Connections Runco VX-11d Installation/Operation Manual...

  • Page 51: Connecting An Audio Processor Or Secondary Display Device To The Dhd Controller (Optional)

    Video 1 Video 2 Video 2 Video 3 Video 3 HDMI Out HDMI 2 HDMI 2 HDMI 4 HDMI 4 Ethernet Ethernet Audio Only Secondary Display Audio Processor/ Switcher Figure 3-17. Audio Processor Connection to DHD Controller Runco VX-11d Installation/Operation Manual...

  • Page 52: Additional Connections To The Dhd Controller (Optional)

    HDMI 4 Audio Only Audio Only 2 Receive Data to Automation/ 3 Transmit Data Control System 5 Ground or PC (none of the other pins are used) Figure 3-18. RS-232 Control System Connection to DHD Controller Runco VX-11d Installation/Operation Manual...

  • Page 53: Connecting 12-Volt Trigger Outputs

    Installation Connecting 12-volt Trigger Outputs to External Equipment: If you are installing a VX-11d/CineWide with AutoScope, connect the AutoScope lens motor to a 12-volt trigger output on the DHD Controller; see Figure 3-19. Similarly connect other 12-volt trigger-activated equipment (such as retractable screens or screen masks) to the other trigger outputs.
  • Page 54 Display Control Display Control HDMI Out HDMI Out To Display To Display PC / Control PC / Control HDMI Out HDMI Out Ethernet Ethernet Audio Only Audio Only Figure 3-20. External IR Receiver Connection Runco VX-11d Installation/Operation Manual...

  • Page 55: Connecting To Ac Power

    Projector/DHD Controller: Plug the female end of one power cord into the AC Connecting to AC Power receptacle on the rear of the VX-11d (AC 100V ~ 240V). Then, connect the other end to your AC power source. Similarly connect the DHD Controller to a nearby AC outlet.

  • Page 56: Turning On The Power

    To change the lens position, use the cursor buttons to highlight “Left,” “Right,” “Up” or Lens Shift “Down” in the Lens menu. Then, press and hold the ENTER button to shift the lens in that direction. Runco VX-11d Installation/Operation Manual...

  • Page 57: Adjusting The Picture Orientation

    Copy/Paste - Aspect Ratio on page 71. By default, the VX-11d is configured for a “floor/front” installation, in which the projector is installed upright and in front of the screen. If it is installed behind the screen and/or Adjusting the Picture mounted on a ceiling, you must change the picture orientation.

  • Page 58: Adjusting The Image Geometry

    Use these controls as (and only if) needed to re-position the image corners, mid-points and center to eliminate “keystoning” (mis-aligned corners) or “pincushion” distortion (mid-points not aligned with corners). See Figure 3-22. Horizontal Keystoning Vertical Keystoning Pincushion Distortion Figure 3-22. Keystone and Pincushion Distortion Runco VX-11d Installation/Operation Manual...

  • Page 59: Image Alignment Controls

    Notes: 1. Smaller “x” values move a point to the left; larger values move it to the right. 2. Smaller “y” values move a point up; larger values move it down. Figure 3-23. Image Alignment Controls Runco VX-11d Installation/Operation Manual...

  • Page 60: Installing And Adjusting The Cinewide Anamorphic Lens

    The VX-11d Anamorphic lens mount kit consists of everything shown in Figure 3-24. Some components shipped with your projector may differ slightly from what is shown in these instructions. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23-RUNCO.
  • Page 61 Yoke and Lens Adapter Ring to the Anamorphic Lens Holder. The Yoke should be as close to the primary lens as possible. 6. Attach the lens to the Lens Adapter Ring by threading it clockwise. Lens threads into ring Figure 3-25. Attaching the Anamorphic Lens to the Lens Ring Runco VX-11d Installation/Operation Manual...
  • Page 62 Too Far Left Correct position Too Far Right 4. When the horizontal position is properly set, tighten the Yaw/X-Adjustment Levers to secure the lens in place. Runco VX-11d Installation/Operation Manual...
  • Page 63 There may be some pincushion distortion even after the lens is Note properly adjusted, especially at shorter throw distances. If this is the case, Runco recommends that you slightly over-scan the image into the screen frame area to mask the distortion. Runco VX-11d Installation/Operation Manual...
  • Page 64 Then, angle the lens to even out any left-right pincushion distortion: Anamorphic Lens (Top View) Correct Position Wrong Position Once the proper lens angle has been set, firmly tighten the Yaw/X-Adjustment Levers to secure the lens in place. Runco VX-11d Installation/Operation Manual...
  • Page 65 Anamorphic Lens Set Screw (item #10) to secure the lens in place. (When viewed from the front, the rear opening on the anamorphic lens should appear as a tall, narrow oval.) Focus: Finally, rotate the Focus Ring on the anamorphic lens to fine-tune the optical focus. Runco VX-11d Installation/Operation Manual...
  • Page 66 Installation Notes: Runco VX-11d Installation/Operation Manual...

  • Page 67: Operation

    5, 6, 7 ... 15 ... 59, 60 System Splash Enable On/Off Information Network OSD Position Hor. / Ver. 0, 1, 2 ... 100 Field Service Manufacturing Note: Default settings appear in bold type. Figure 4-1. VX-11d OSD Menu Structure Runco VX-11d Installation/Operation Manual...
  • Page 68 On / Off 0 (off), 1, 2, 3 or 4 Enable On / Off Auto Power Off Hours 1, 2, 3, 4, ... 8 ... 23, 24 System Reset Figure 4-1. VX-11d OSD Menu Structure (continued) Runco VX-11d Installation/Operation Manual...

  • Page 69: Main Menu

    Most modern DVD/BD players and set-top boxes have such controls. • Viewer preference (original aspect ratio with “black bars,” or a full-screen presentation with some distortion or cropping). The aspect ratio selection is automatically saved for each input and Note resolution. Runco VX-11d Installation/Operation Manual...
  • Page 70 16:9 4:3 Image on 16:9 Screen (Display) screen. 4:3 Image on 16:9 Screen with VirtualWide On a 2.35:1 screen, the image is 4:3 Image on centered between black bars on 2.35:1 Screen with VirtualWide either side. Runco VX-11d Installation/Operation Manual...
  • Page 71 CINEMA Select Cinema to view 2.35 source material in its native aspect ratio. With a 16:9 screen and a standard VX-11d (without an anamorphic lens), the upper and 2.35:1 Image on lower portions of the screen are 16:9 Screen (Cinema aspect ratio / no CineWide) masked, but the geometry of the active image area is unchanged.

  • Page 72: Screen

    Color implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from Runco video display devices. Accordingly, Runco Tint recommends that setup and calibration be performed by an ISF certified installation Sharpness technician.
  • Page 73 • The dark gray areas are barely visible. • The lighter gray areas are clearly visible. • The white areas are a comfortable level of true white. • The image contains only black, gray and white (no color). Runco VX-11d Installation/Operation Manual...
  • Page 74 1. Press the MENU button on the remote control or DHD Controller front panel. 2. Select Service from the Main Menu and press ENTER. 3. Enter the Service menu passcode. 4. Select Display Device from the Service menu and press ENTER. 5. Press ENTER again to select Configure. Runco VX-11d Installation/Operation Manual...
  • Page 75 (on either side of the green bar) appear to be a single shade of blue. Like the brightness and contrast controls, the color and tint controls Note are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting. Runco VX-11d Installation/Operation Manual...

  • Page 76: Input Position

    Tracking vertically. Press to shift the image upward; press to shift it downward. Width: Select Width from the Input Position menu to change the projected image width. Press to increase the width; press to decrease it. Runco VX-11d Installation/Operation Manual...
  • Page 77 A setting of 10, for example, zooms in on the image 5% on all sides or 10% total. Figure 4-6 illustrates the effect of each overscan mode setting. Crop Zoom 16:9 = Source Image Area = Edge Noise = Screen (16:9) Figure 4-6. Overscan Modes Runco VX-11d Installation/Operation Manual...

  • Page 78: Memory Presets

    Use the Memory Presets menu to recall saved image presets, or to save image settings in the “Custom 1” or “Custom 2” memory location. The currently-selected preset is indicated by a “ ” to its left; in the example shown here, ISF Night is selected. Runco VX-11d Installation/Operation Manual...

  • Page 79: Sleep Timer

    To reset the Custom 1 or Custom 2 memory preset to its factory-default state, select it, press to highlight Reset and press ENTER. Select Sleep Timer from the Main Menu to turn off the VX-11d after a specified interval. Sleep Timer Press to select Off, 30 Minutes, 60 Minutes, 90 Minutes, 2 Hours or 4 Hours.

  • Page 80: Information

    Information your DHD Controller and display device. Signal System Should you ever need to contact Runco Technical Support, this information will help them Network answer your questions or resolve product performance issues. Field Service Manufacturing...

  • Page 81: Calibration

    Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the setting. • Mode: With the VX-11d, two Gamma adjustment modes are available: Simple or Advanced. The two modes are mutually exclusive; when you select the Simple mode, the Advanced selection in the Gamma menu is grayed out.
  • Page 82 Blue Figure 4-7. CIE 1931 Chromaticity Diagram • Simple: Select Simple mode from the Color Temp menu (with the VX-11d, this is the only choice) to choose one of four color temperature presets: 5500K, 6500K, 7500K and 9300K. The default setting, 6500K, is appropriate for most situations.
  • Page 83 • Select Native to use REC709 for cyan, magenta, and yellow and uncorrected values for red, green, and blue. • Select PCE to use the Personal Color Equalizer feature of the VX-11d. PCE lets you define a custom color gamut. Refer to the next section, PCE, for instructions on how to do this.
  • Page 84 RGBW from the PCE sub-menu. Each control operates only on the color specified. Surrounding colors are linearly interpolated based on their distance from each of these colors. Runco VX-11d Installation/Operation Manual...
  • Page 85 Settings menu to enable (On) or disable (Off) ConstantContrast in the optical engine. ConstantContrast uses a dynamic iris that modulates light to the DMD based on the actual content of the video material. Runco recommends that you disable ConstantContrast before adjusting Brightness, Contrast or other image settings.
  • Page 86 (resolution and frame rate) and memory preset onto a “clipboard,” which is a temporary memory location. When you do, the message “Settings Copied” briefly appears on-screen. The Copy/Paste menu then re-appears, indicating the source of the copied settings. Runco VX-11d Installation/Operation Manual...
  • Page 87 • Switch to another aspect ratio (for example, from 16:9 to Cinema). • Switch from Screen 1 to Screen 2 or vice versa. Then, select Paste Settings from the Copy/Paste Aspect Ratio menu. The new settings are saved automatically. Runco VX-11d Installation/Operation Manual...
  • Page 88 Press MENU when you have finished entering text. • Splash Timer: When you turn on the VX-11d, it projects a welcome screen with the Runco and ISF logos, along with the personalized information you enter as described above.

  • Page 89: Service

    Color Bars 2 Use this pattern when adjusting the focus. Focus Use this pattern when making brightness, contrast or white balance (gain/offset) adjustments. Grey Bars Press MENU to exit test pattern mode. Runco VX-11d Installation/Operation Manual...
  • Page 90 In most cases, the default setting (Auto) will maintain the correct operating temperature. If the lamp frequently turns off due to overheating, or in certain high-altitude operating environments, you may need to change this setting to High. Runco VX-11d Installation/Operation Manual...
  • Page 91 DHD Controller automatically download and install it. To do this, select Auto Perform Upgrade from the Auto Firmware Upgrade menu and set it to On. The upgrade will occur the next time the DHD Controller is “power-cycled” (powered off, then on again). Runco VX-11d Installation/Operation Manual...
  • Page 92 [E-Mail Address; see below] From: do-not-reply@runco.com Subject: [Type of notification] from Runco DHD4 Body: This is an automated message sent from the Runco DHD4: Notification: [One of the following: “DHD Error” / “Display Error” “Periodic Service Notification” “Lamp Life Notification” / “Calibration Data”] Detailed Description: [ If a DHD Error, one of the following: “Fan Failure 1”...
  • Page 93 “DHD Error” or “Display Error” occurs, select Error Notification from the E-Mail Notification menu and set it to On. • Error Notification to Runco: To have the DHD Controller send an e-mail message to Runco Customer Support when a “DHD Error” or “Display Error” occurs, select Error Notification to Runco from the E-Mail Notification menu and set it to On.
  • Page 94 You can assign one or more trigger outputs to each aspect ratio. Those triggers are then activated by selecting that aspect ratio. If your VX-11d is equipped with an anamorphic lens, assign at least one trigger output (the same one to which the lens motor is connected) to the Cinema and Virtual Cinema aspect ratios.
  • Page 95 9 as “09.” 3. The LED turns off to confirm the code change. If you enter an invalid code, the LED flashes for three or four seconds. Try again, entering a valid code. Runco VX-11d Installation/Operation Manual...
  • Page 96 HDMI device (third-party display or audio/video receiver). The default setting, Auto, disables HPD toggle rejection on the VX-11d. Use the other settings to troubleshoot compatibility issues or reduce the amount of time needed to lock to an incoming signal.
  • Page 97 • LCD: Select LCD from the Front Panel Brightness menu to adjust the brightness of the front-panel LCD. The range is from 0 (off) to 4. Auto Power Off: Select Auto Power Off from the Service menu to have the VX-11d turn itself off after a period of inactivity (no source signal present).
  • Page 98 Operation Notes: Runco VX-11d Installation/Operation Manual...

  • Page 99: Maintenance And Troubleshooting

    3,000 hours depending on the Lamp Power setting), or sooner if a noticeable Lamp Replacement degradation in brightness occurs. Contact your Runco dealer to obtain a replacement lamp. 1. Turn off the projector and unplug the power cord. Allow the projector to cool down for approximately 45 minutes prior to removing the lamp assembly for replacement.

  • Page 100: Troubleshooting Tips

    Maintenance and Troubleshooting Table 5-1 provides some general guidelines for troubleshooting problems you may encounter with the VX-11d. If you encounter an issue not described here, please contact Troubleshooting Tips Runco Technical Support. Table 5-1. Troubleshooting Chart Symptom Possible Cause(s)

  • Page 101: External Control

    Runco serial protocol is also supported. To interface the VX-11d with an automation/control system or a PC running terminal RS-232 Connection and emulation software, connect it to the DHD Controller as shown in Figure 3-11. Connect Port Configuration your control system or PC to the RS-232 input of the DHD Controller;...

  • Page 102: Response Format

    (for Get commands) for this parameter. It can have one of two formats: • Integer value: Any positive or negative number; for example, 100. • String value: Any string surrounded by double quotes; for example, “This is a string.” • [CR] is the ASCII carriage return key (0x0D). Runco VX-11d Installation/Operation Manual...

  • Page 103: Command And Response Examples

    0 = Auto 1 = High Advanced Color Temp Mode 0 = Off; 1 = On Enable Auto New Firmware Check 0 = Off; 1 = On Auto Power Off Enable 0 = Off; 1 = On Runco VX-11d Installation/Operation Manual...
  • Page 104 -100 Blank Screen Blue Blank Screen Green Blank Screen Red ConstantContrast 0 = Off 1 = On 2 = Low 3 = Medium 4 = High CEC Enable 0 = Off; 1 = On Chroma Delay Runco VX-11d Installation/Operation Manual...
  • Page 105 1 = Red 2 = Green 3 = Blue 4 = Yellow 5 = Cyan 6 = Magenta Display Green Gain -100 Display Green Offset -100 DHCP 0 = Off; 1 = On Display Red Gain -100 Runco VX-11d Installation/Operation Manual...
  • Page 106 Firmware Upgrade Action will be performed on any setting value Gamma Advanced Gamma Mode 0 = Simple 1 = Advanced Gamma Simple 0 = 2.0 1 = 1.8 2 = 2.2 3 = 2.35 4 = 2.5 Runco VX-11d Installation/Operation Manual...
  • Page 107 Information Copied Aspect Ratio Information Current Color Space 0 = REC601 1 = REC709 2 = RGB 3 = RGB Video Information Copied Input Source Information Copied Memory Pre- Information Copied Screen Information Copied Signal Format Runco VX-11d Installation/Operation Manual...
  • Page 108 Input Position Up Down Input Position Width Input Red Gain Input Red Offset Information Signal Format Information Serial Number Information Sync Type 0 = None 1 = Separate 2 = Composite 3 = Sync-on-green Information Vertical Frequency Runco VX-11d Installation/Operation Manual...
  • Page 109 4 = Spanish 5 = Portuguese 6 = Simplified Chinese 7 = Traditional Chinese 8 = Swedish 9 = Russian 10 = Japanese 11 = Korean Lens Home Position Action will be performed on any setting value Runco VX-11d Installation/Operation Manual...
  • Page 110 OSD Message Enable 0 = Off; 1 = On OSD Timer Values from 1-4 are not allowed; if increment or decrement is used, these values will be skipped. Output Shift Up Down -200 OSD Position Vertical Runco VX-11d Installation/Operation Manual...
  • Page 111 Image Alignment Right Middle x -100 Remote Network Control 0 = Off; 1 = On Standby LED Enable 0 = Off; 1 = On Splash Configure String 1 Splash Configure String 2 30 characters max Splash Configure String 3 Runco VX-11d Installation/Operation Manual...
  • Page 112 3 = 90 Minutes 4 = 2 Hours 5 = 4 Hours Subnet Mask Byte 1 Subnet Mask Byte 2 Subnet Mask Byte 3 Subnet Mask Byte 4 System Reset Action will be performed on any setting value Runco VX-11d Installation/Operation Manual...
  • Page 113 Tint Test Pattern Enable 0 = Off; 1 = On Primary Test Pattern 0 = Off; 1 = On Secondary Test Pattern 0 = Off; 1 = On Tracking -100 Image Alignment Top Right x -100 Runco VX-11d Installation/Operation Manual...
  • Page 114 Vertical Shift On products where the motor must be stopped after initiating, setting to 0 will stop the motor Zoom On products where the motor must be stopped after initiating, setting to 0 will stop the motor Runco VX-11d Installation/Operation Manual...

  • Page 115: Using Discrete Ir Codes

    79. • Six (6) data bits. • The carrier frequency is 36 kHz, with the modulated pulses having a 25% duty cycle. • Commands are sent at a maximum rate of 9 Hz. Runco VX-11d Installation/Operation Manual...
  • Page 116 Start Bits Toggle Bit Encoded Data Word 1.78 ms Modulated Carrier Zoom In of Carrier 27.8 µs First Packet Repeated Packet RC5 Packet Transmission 14 cycles, 24.9 ms 64 cycles, 113.8 ms Figure 6-1. RC5 Message Format Runco VX-11d Installation/Operation Manual...

  • Page 117: Ir Command List

    Sets the sleep timer to 30 minutes Note: These codes assume that the default address of 17 is used. If you change it to something other than 17, you will need to modify these codes accordingly. Runco VX-11d Installation/Operation Manual...
  • Page 118 Virtual Cinema aspect ratio V-WIDE 0x344C 0x3C4C VirtualWide aspect ratio Note: These codes assume that the default address of 17 is used. If you change it to something other than 17, you will need to modify these codes accordingly. Runco VX-11d Installation/Operation Manual...

  • Page 119: Using Hdmi Cec Messages

    • Turn the source component on when you switch to its corresponding input on the DHD Controller. • Turn the source component off when the VX-11d system is turned off (unless the source component is in playback mode). • Change its OSD language when a similar change is made at the source.
  • Page 120 – √ Give OSD Name 0x46 – √ Menu Request 0x8D – √ Give Device Power Status 0x8F – The DHD Controller does not transmit HDMI CEC control Note messages from the “HDMI Audio Out” connector. Runco VX-11d Installation/Operation Manual...

  • Page 121: Specifications

    7. Specifications Table 7-1 lists the VX-11d specifications. VX-11d Specifications Table 7-1. VX-11d Specifications Projector Type: Digital Light Processing™ (DLP), 3-chip, 16:9 SuperOnyx™ DMD™ Native Resolution: 1,920 x 1,080 (2,073,600 pixels) Aspect Ratios: Refer to Table 7-2 Video Standards: Refer to Table 7-2...
  • Page 122 Contrast Ratio: 10,000:1 full-on, full-off (dynamic) These are typical projector brightness and contrast specifications found in most companies’ sales literature. Runco includes these measurements in its literature to allow for direct comparison with other manufacturers’ projectors. These measurements are typically taken at 9,000K to 13,000K to get expected performance data when the projector is used in professional, commercial and industrial displays.

  • Page 123: Dhd Controller Specifications

    Height = 3.75 inches (95.3 mm) Weight: 13.0 lbs. (5.90 kg) Regulatory Approvals: Complies with FCC, CE C-Tick Limited Warranty: Two (2) years parts and labor from the date of shipment from Runco. Specifications are subject to change without notice. Runco VX-11d Installation/Operation Manual...

  • Page 124: Vx-11D Dimensions

    Specifications Figure 7-1 shows the VX-11d dimensions, in inches. VX-11d Dimensions 24.636 11.480 3.680 2X 3.250 4.423 3X 5.048 6.122 6.500 9.872 10.036 13.622 14.500 3X 15.024 15.395 15.649 2X 17.750 18.627 21.000 21.000 .750 .876 4.831 24.636 24.886 Figure 7-1. VX-11d Dimensions...

  • Page 125: Supported Timings

    1280x768 1280x768 √ √ √ 75.00 60.289 102.250 – – √ √ √ 85.00 68.633 117.500 – – √ √ √ 60.00 60.000 108.000 – – 1280x960 1280x960 √ √ √ 85.00 85.938 148.500 – – Runco VX-11d Installation/Operation Manual...
  • Page 126 1920x1080 59.94/60.00 67.433/67.500 148.350/148.500 – – √ NTSC 3.58 – 59.94/60.00 15.734/15.750 3.580 – – – – √ NTSC 4.43 – 59.94/60.00 15.734/15.750 4.430 – – – – √ PAL-B/G/H/I – 50.00 15.625 4.430 – – – – Runco VX-11d Installation/Operation Manual...
  • Page 127 Resolution Frequency Rate (Hz) (MHz) (kHz) √ PAL-M – 59.94/60.00 15.734/15.750 3.580 – – – – √ PAL-N – 50.00 15.625 3.580 – – – – √ √ SECAM – 50.00 15.625 13.500 – – – Runco VX-11d Installation/Operation Manual...
  • Page 128 Specifications Notes: Runco VX-11d Installation/Operation Manual...
  • Page 130 020-1151-00 Rev. A September 2010 Runco International • (800) 23RUNCO • Fax (503) 748-8161 • www.runco.com...

Table of Contents
