Optional Swivel Belt Clip; Contents; Attaching - Icom IC-F3022T Instruction Manual

6

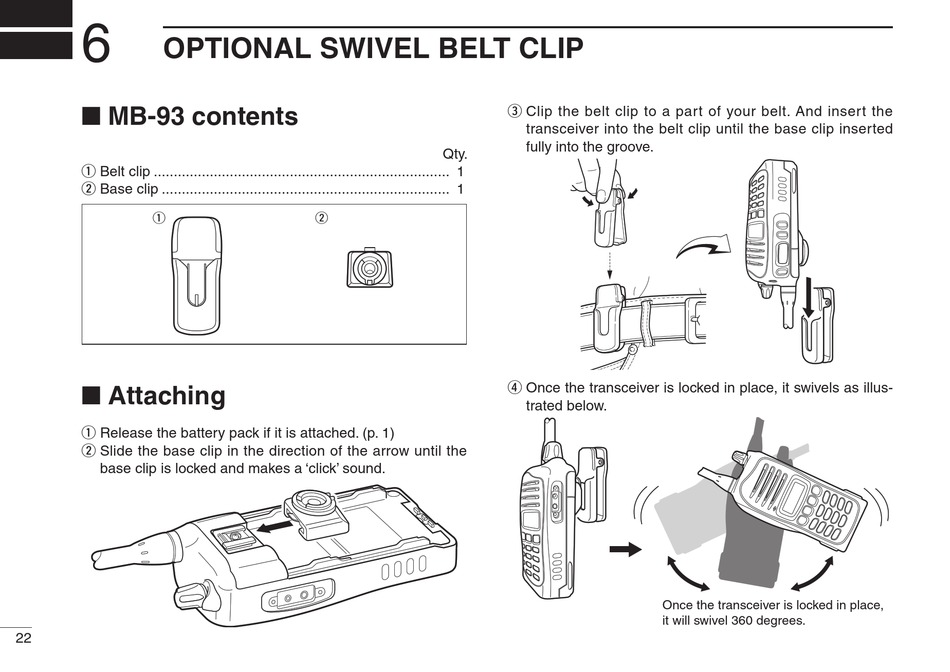

OPTIONAL SWIVEL BELT CLIP

■ MB-93 contents
q Belt clip .......................................................................... 1
w Base clip ........................................................................ 1
q

■ Attaching

q Release the battery pack if it is attached. (p. 1)
w Slide the base clip in the direction of the arrow until the
base clip is locked and makes a 'click' sound.
22
Qty.
w
e Clip the belt clip to a part of your belt. And insert the
transceiver into the belt clip until the base clip inserted
fully into the groove.
r Once the transceiver is locked in place, it swivels as illus-
trated below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
