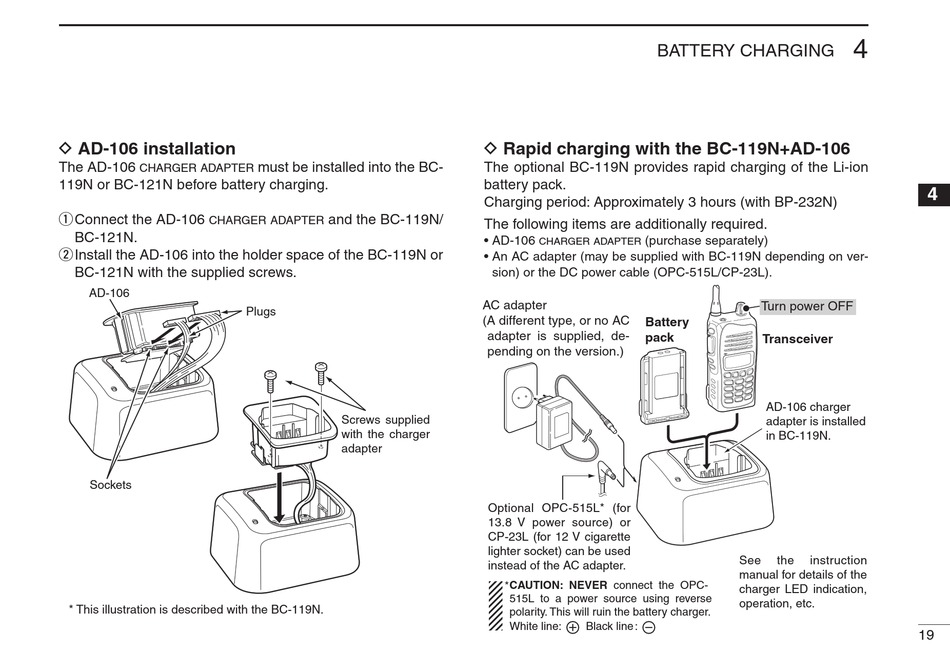

D AD-106 installation
The AD-106
charger adapter
119N or BC-121N before battery charging.
q Connect the AD-106
charger adapter
BC-121N.
w Install the AD-106 into the holder space of the BC-119N or
BC-121N with the supplied screws.
AD-106
Sockets
* This illustration is described with the BC-119N.
must be installed into the BC-
and the BC-119N/
Plugs
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging period: Approximately 3 hours (with BP-232N)
The following items are additionally required.
• AD-106 (purchase separately)
charger adapter
• An AC adapter (may be supplied with BC-119N depending on ver-
sion) or the DC power cable (OPC-515L/CP-23L).
AC adapter
(A different type, or no AC
Battery
adapter is supplied, de-
pack
pending on the version.)
Optional OPC-515L* (for
13.8 V power source) or
CP-23L (for 12 V cigarette
lighter socket) can be used
instead of the AC adapter.
CAUTION: NEVER connect the OPC-
*
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line :
4
Turn power OFF
Transceiver
AD-106 charger
adapter is installed
in BC-119N.
See the instruction
manual for details of the
charger LED indication,
operation, etc.
