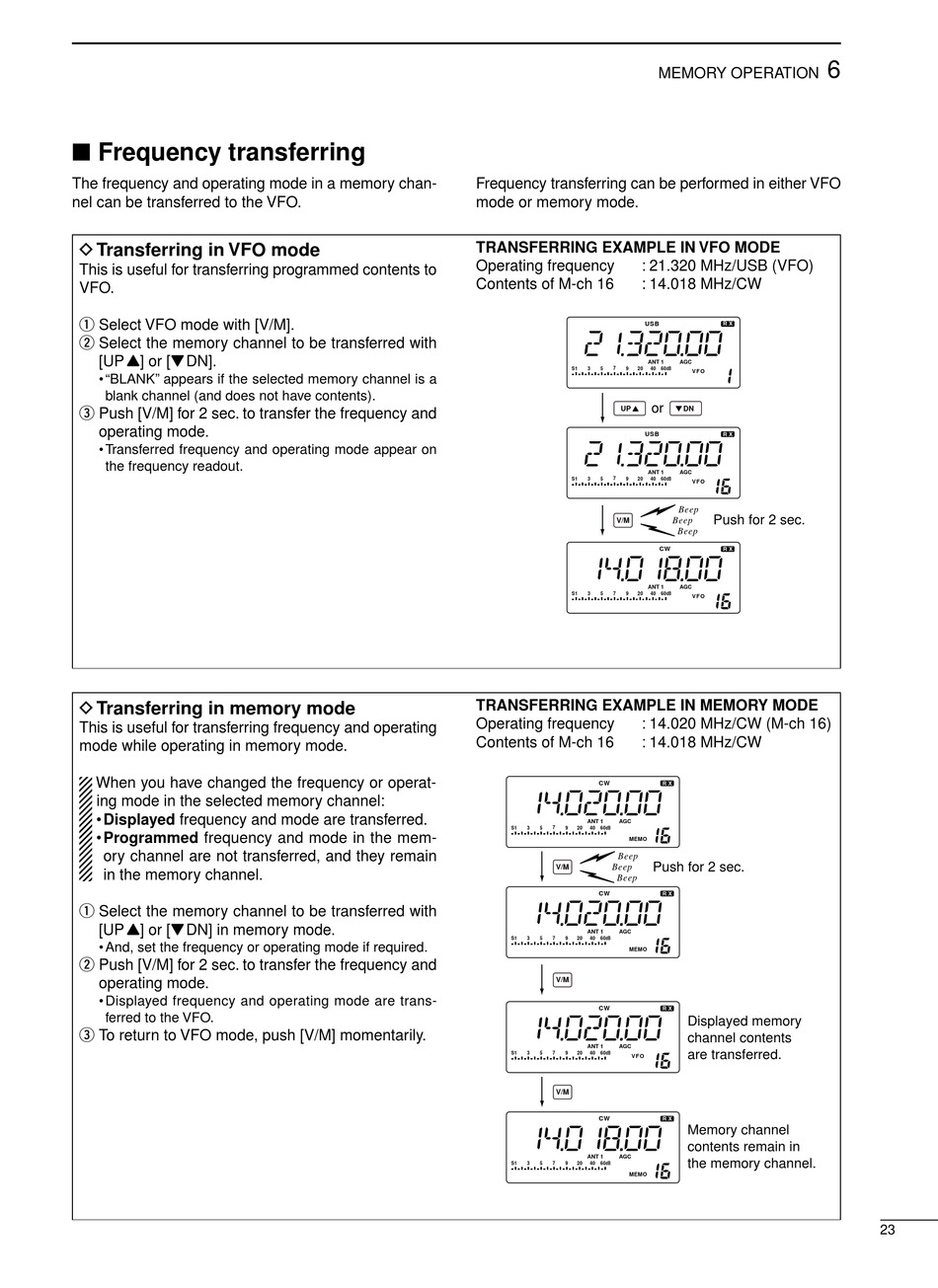

Frequency transferring

The frequency and operating mode in a memory chan-
nel can be transferred to the VFO.
D Transferring in VFO mode
This is useful for transferring programmed contents to
VFO.
q Select VFO mode with [V/M].
w Select the memory channel to be transferred with
[UP Y] or [Z DN].
• "BLANK" appears if the selected memory channel is a
blank channel (and does not have contents).
e Push [V/M] for 2 sec. to transfer the frequency and
operating mode.
• Transferred frequency and operating mode appear on
the frequency readout.
D Transferring in memory mode
This is useful for transferring frequency and operating
mode while operating in memory mode.
When you have changed the frequency or operat-
ing mode in the selected memory channel:
• Displayed frequency and mode are transferred.
• Programmed frequency and mode in the mem-
ory channel are not transferred, and they remain
in the memory channel.
q Select the memory channel to be transferred with
[UP Y] or [Z DN] in memory mode.
• And, set the frequency or operating mode if required.
w Push [V/M] for 2 sec. to transfer the frequency and
operating mode.
• Displayed frequency and operating mode are trans-
ferred to the VFO.
e To return to VFO mode, push [V/M] momentarily.
Frequency transferring can be performed in either VFO
mode or memory mode.
TRANSFERRING EXAMPLE IN VFO MODE
Operating frequency : 21.320 MHz/USB (VFO)
Contents of M-ch 16 : 14.018 MHz/CW
USB
ANT 1
S1 3 5 7 9 20 40
or
UP
USB
ANT
S1 3 5 7 9 20 40
V/M
ANT
7
S1 3 5 9 20 40
TRANSFERRING EXAMPLE IN MEMORY MODE
Operating frequency : 14.020 MHz/CW (M-ch 16)
Contents of M-ch 16 : 14.018 MHz/CW
CW
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
MEMO
Beep
Push for 2 sec.
Beep
V/M
Beep
CW
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
MEMO
V/M
CW
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
VFO
V/M
CW
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
MEMO
6
MEMORY OPERATION
R X
AGC
60dB
VFO
DN
R X
1 AGC
60dB
VFO
Beep
Push for 2 sec.
Beep
Beep
CW
R X
1 AGC
60dB
VFO
R X
R X
R X
Displayed memory
channel contents
are transferred.
R X
Memory channel
contents remain in
the memory channel.
23
