6

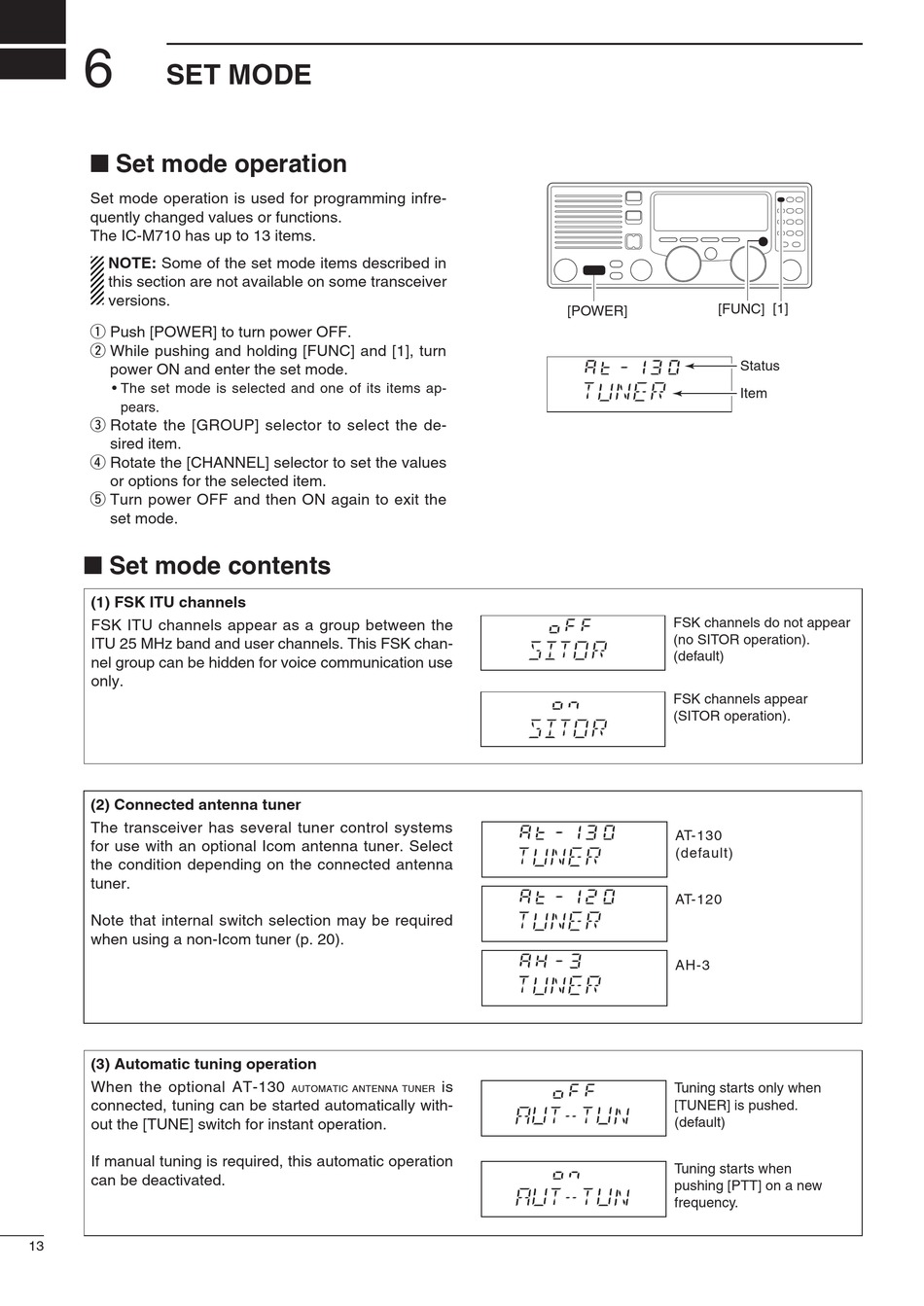

SET MODE

■ Set mode operation

Set mode operation is used for programming infre-
quently changed values or functions.
The IC-M710 has up to 13 items.
NOTE: Some of the set mode items described in
this section are not available on some transceiver
versions.
q Push [POWER] to turn power OFF.
w While pushing and holding [FUNC] and [1], turn
power ON and enter the set mode.
• The set mode is selected and one of its items ap-
pears.
e Rotate the [GROUP] selector to select the de-
sired item.
r Rotate the [CHANNEL] selector to set the values
or options for the selected item.
t Turn power OFF and then ON again to exit the
set mode.

■ Set mode contents

(1) FSK ITU channels
FSK ITU channels appear as a group between the
ITU 25 MHz band and user channels. This FSK chan-
nel group can be hidden for voice communication use
only.
(2) Connected antenna tuner
The transceiver has several tuner control systems
for use with an optional Icom antenna tuner. Select
the condition depending on the connected antenna
tuner.
Note that internal switch selection may be required
when using a non-Icom tuner (p. 20).
(3) Automatic tuning operation
When the optional AT-130
connected, tuning can be started automatically with-
out the [TUNE] switch for instant operation.
If manual tuning is required, this automatic operation
can be deactivated.
13
is
AUTOMATIC ANTENNA TUNER
[FUNC]
[POWER]
Status
Item
FSK channels do not appear
(no SITOR operation).
(default)
FSK channels appear
(SITOR operation).
AT-130
(default)
AT-120
AH-3
Tuning starts only when
[TUNER] is pushed.
(default)
Tuning starts when
pushing [PTT] on a new
frequency.
[1]
