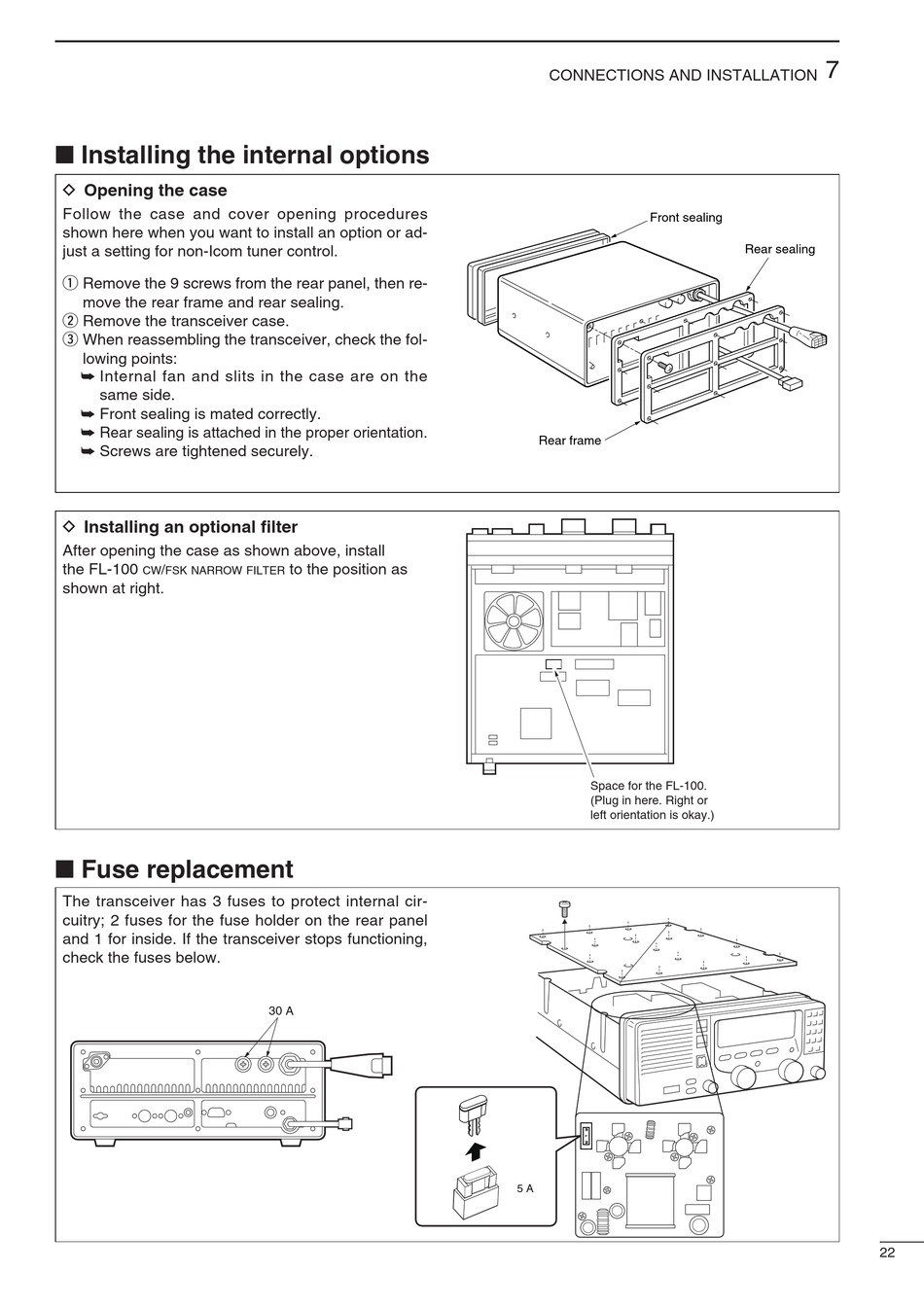

■ Installing the internal options

D Opening the case

Follow the case and cover opening procedures
shown here when you want to install an option or ad-
just a setting for non-Icom tuner control.
q Remove the 9 screws from the rear panel, then re-
move the rear frame and rear sealing.
w Remove the transceiver case.
e When reassembling the transceiver, check the fol-
lowing points:
➥ Internal fan and slits in the case are on the
same side.
➥ Front sealing is mated correctly.
➥ Rear sealing is attached in the proper orientation.
➥ Screws are tightened securely.

D Installing an optional filter

After opening the case as shown above, install
the FL-100
/
cw fsk narrow filter
shown at right.

■ Fuse replacement

The transceiver has 3 fuses to protect internal cir-
cuitry; 2 fuses for the fuse holder on the rear panel
and 1 for inside. If the transceiver stops functioning,
check the fuses below.
to the position as
30 A
CONNECTIONS AND INSTALLATION
Front sealing
Rear frame
Space for the FL-100.
(Plug in here. Right or
left orientation is okay.)
5 A
7
Rear sealing
22
