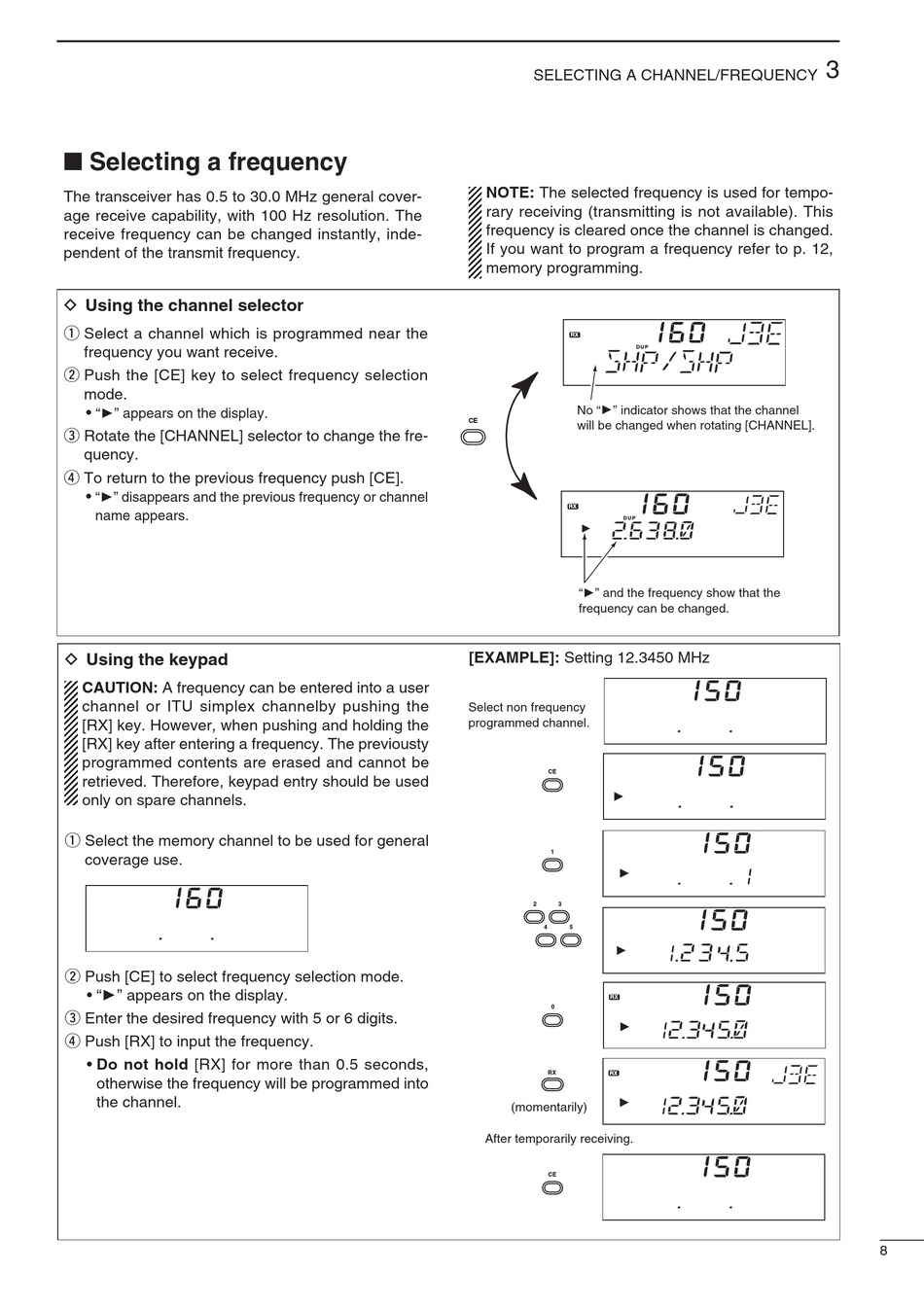

■ Selecting a frequency

The transceiver has 0.5 to 30.0 MHz general cover-
age receive capability, with 100 Hz resolution. The
receive frequency can be changed instantly, inde-
pendent of the transmit frequency.

D Using the channel selector

q Select a channel which is programmed near the
frequency you want receive.
w Push the [CE] key to select frequency selection
mode.
•
"►" appears on the display.
e Rotate the [CHANNEL] selector to change the fre-
quency.
r To return to the previous frequency push [CE].
•
"►" disappears and the previous frequency or channel
name appears.

D Using the keypad

CAUTION: A frequency can be entered into a user
channel or ITU simplex channelby pushing the
[RX] key. However, when pushing and holding the
[RX] key after entering a frequency. The previousty
programmed contents are erased and cannot be
retrieved. Therefore, keypad entry should be used
only on spare channels.
q Select the memory channel to be used for general
coverage use.
w Push [CE] to select frequency selection mode.
• "►" appears on the display.
e Enter the desired frequency with 5 or 6 digits.
r Push [RX] to input the frequency.
• Do not hold [RX] for more than 0.5 seconds,
otherwise the frequency will be programmed into
the channel.
SELECTING A CHANNEL/FREQUENCY
NOTE: The selected frequency is used for tempo-
rary receiving (transmitting is not available). This
frequency is cleared once the channel is changed.
If you want to program a frequency refer to p. 12,
memory programming.
RX
D U P
No "►" indicator shows that the channel
CE
will be changed when rotating [CHANNEL].
RX
D U P
►
"►" and the frequency show that the
frequency can be changed.
[EXAMPLE]: Setting 12.3450 MHz
Select non frequency
programmed channel.
CE
►
1
►
2 3
4 5
►
RX
0
►
RX RX
►
(momentarily)
After temporarily receiving.
CE
3
8
