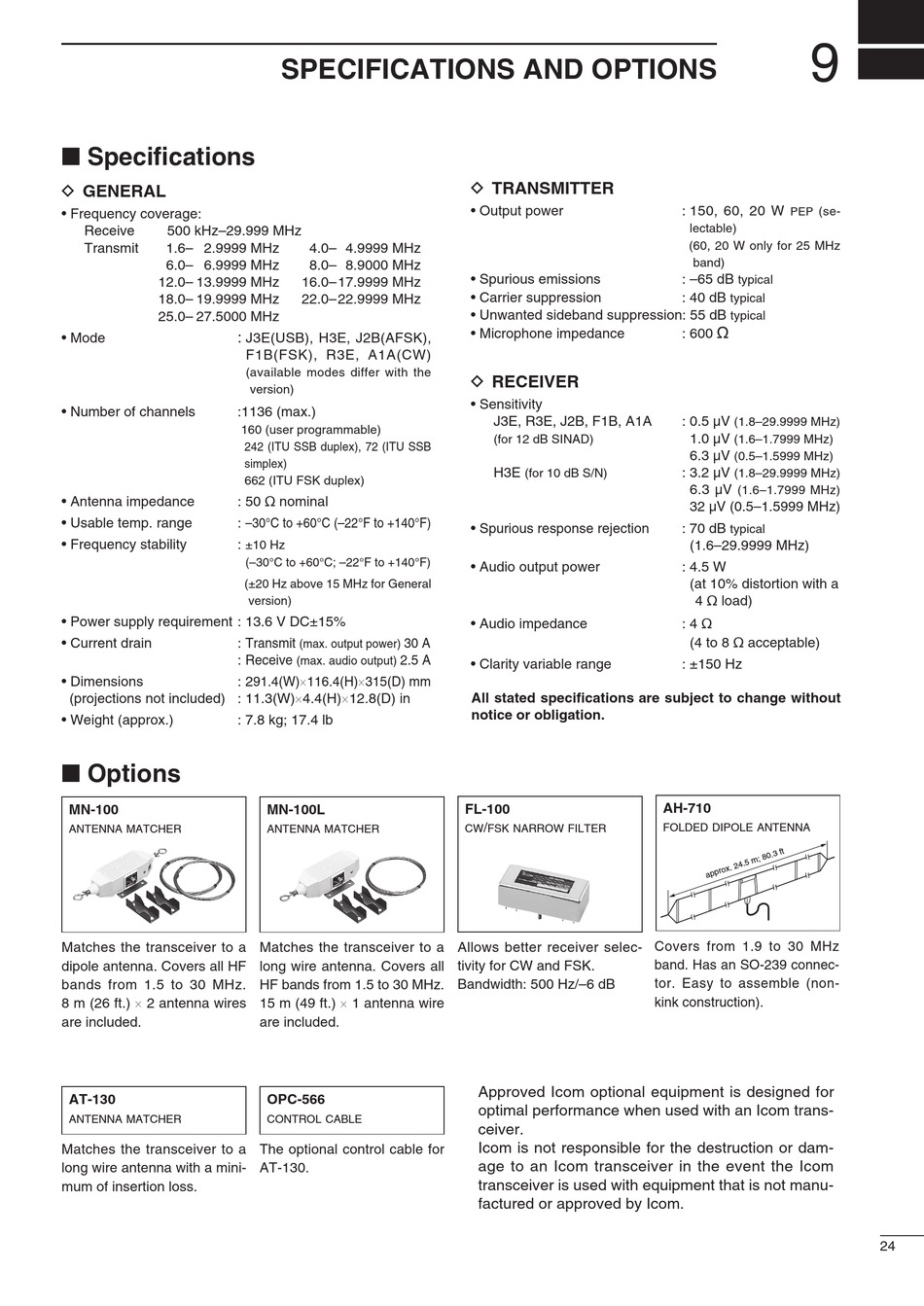

■ Specifications

D GENERAL

• Frequency coverage:
Receive 500 kHz–29.999 MHz
Transmit 1.6– 2.9999 MHz
6.0– 6.9999 MHz
12.0– 13.9999 MHz
18.0– 19.9999 MHz
25.0– 27.5000 MHz
• Mode
• Number of channels
• Antenna impedance
• Usable temp. range
• Frequency stability
• Power supply requirement : 13.6 V DC±15%
• Current drain
• Dimensions
(projections not included) : 11.3(W)×4.4(H)×12.8(D) in
• Weight (approx.)

■ Options

MN-100
antenna matcher
Matches the transceiver to a
dipole antenna. Covers all HF
bands from 1.5 to 30 MHz.
8 m (26 ft.) × 2 antenna wires
are included.
AT-130
antenna matcher
Matches the transceiver to a
long wire antenna with a mini-
mum of insertion loss.

SPECIFICATIONS AND OPTIONS

4.0– 4.9999 MHz
8.0– 8.9000 MHz
16.0– 17.9999 MHz
22.0– 22.9999 MHz
:
J3E(USB), H3E, J2B(AFSK),
F1B(FSK), R3E, A1A(CW)
( available modes differ with the
version)
:1136 (max.)
160 (user programmable)
242 (ITU SSB duplex), 72 (ITU SSB
simplex)
662 (ITU FSK duplex)
: 50 ø nominal
: –30°C to +60°C (–22°F to +140°F)
:
±10 Hz
(–30°C to +60°C; –22°F to +140°F)
( ±20 Hz above 15 MHz for General
version)
: Transmit 30 A
(max. output power)
: Receive 2.5 A
(max. audio output)
: 291.4(W)×116.4(H)×315(D) mm
: 7.8 kg; 17.4 lb
MN-100L
antenna matcher
Matches the transceiver to a
long wire antenna. Covers all
HF bands from 1.5 to 30 MHz.
15 m (49 ft.) × 1 antenna wire
are included.
OPC-566
control cable
The optional control cable for
AT-130.

D TRANSMITTER

• Output power
• Spurious emissions
• Carrier suppression
• Unwanted sideband suppression: 55 dB
• Microphone impedance

D RECEIVER

• Sensitivity
J3E, R3E, J2B, F1B, A1A
(for 12 dB SINAD)
H3E
(for 10 dB S/N)
• Spurious response rejection
• Audio output power
• Audio impedance
• Clarity variable range
All stated specifications are subject to change without
notice or obligation.
FL-100
/
cw fsk narrow filter
Allows better receiver selec-
tivity for CW and FSK.
Bandwidth: 500 Hz/–6 dB
Approved Icom optional equipment is designed for
optimal performance when used with an Icom trans-
ceiver.
Icom is not responsible for the destruction or dam-
age to an Icom transceiver in the event the Icom
transceiver is used with equipment that is not manu-
factured or approved by Icom.
