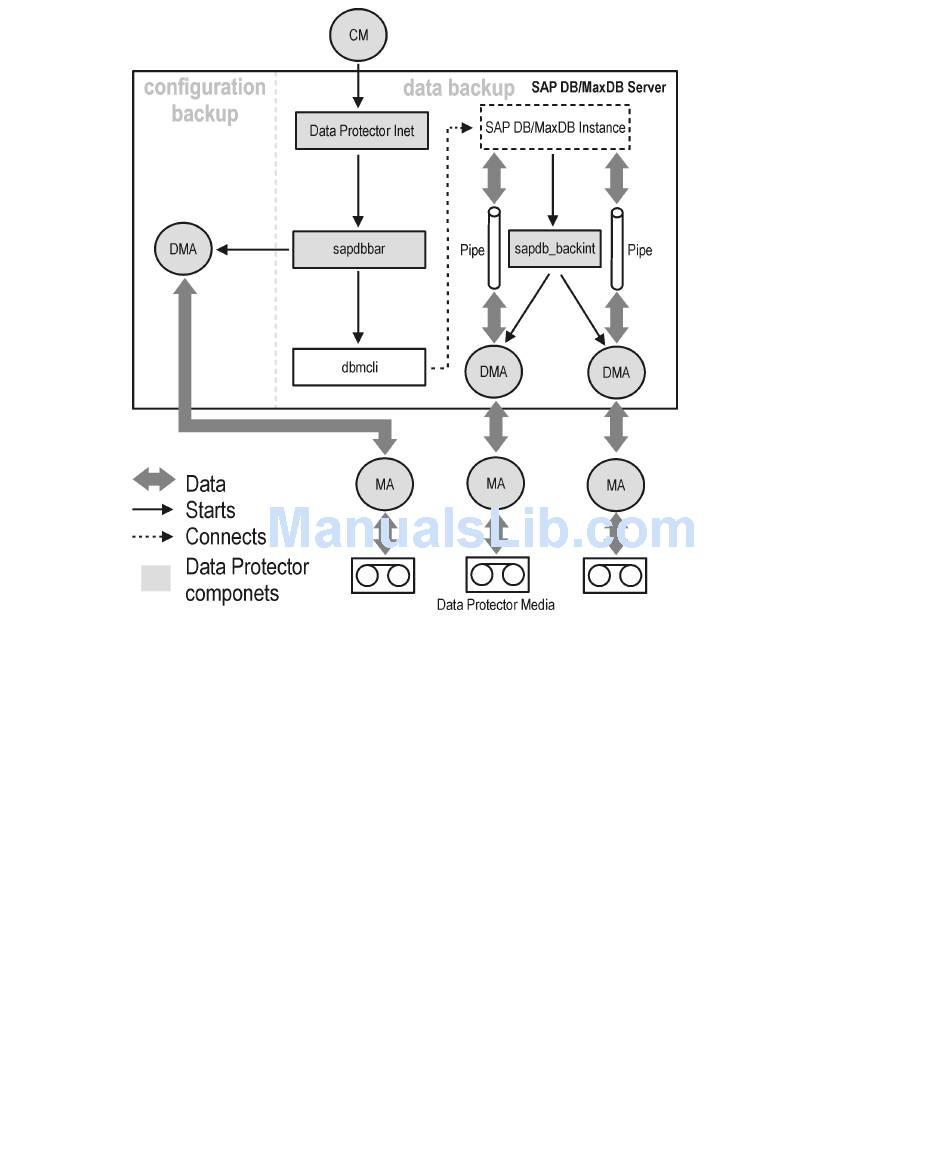

Figure 43 SAP DB integration architecture
The Data Protector integration software consists of the following components:
• The sapdbbar module, installed on the SAP DB/MaxDB Server system, which
controls activities between the SAP DB/MaxDB Server and Data Protector backup
and restore processes.
• The sapdb_backint component, installed on the SAP DB/MaxDB Server system,
is a binary interface between Data Protector and backup and restore functionality
of the SAP DB/MaxDB.
• The DMA (Data Mover Agent) component, installed on the SAP DB/MaxDB Server
system, is the actual data transferring module, called by the sapdb_backint.
• The util_sapdb utility, which is used by Data Protector to configure an
SAP DB/MaxDB instance to use with Data Protector and check the instance
configuration.
SAP DB/MaxDB data and archive logs are backed up or restored in streams, whereas
the SAP DB/MaxDB configuration is backed up or restored as ordinary files. After
Integration guide for Oracle and SAP 235
