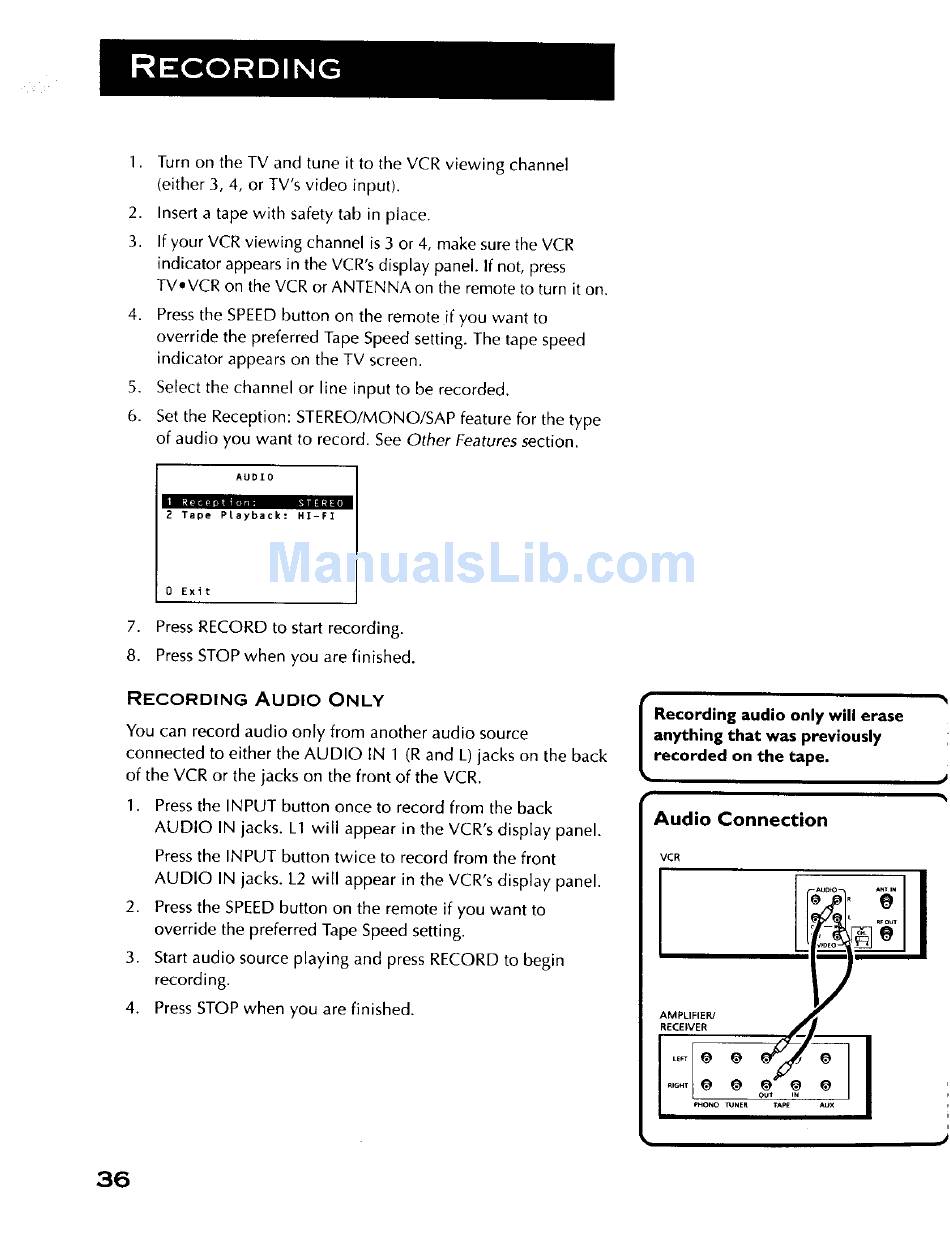

Recording Audio Only - ProScan PSVR87 User Manual

,
2.
3.
,
,
6.
Turn on the TV and tune it to the VCR viewing channel
(either 3, 4, or TV's video input).
Insert a tape with safety tab in place.
If your VCR viewing channel is 3 or 4, make sure the VCR
indicator appears in the VCR's display panel. If not, press
TV.VCR on the VCR or ANTENNA on the remote to turn it on.
Press the SPEED button on the remote if you want to
override the preferred Tape Speed setting. The tape speed
indicator appears on the TV screen.
Select the channel or line input to be recorded.
Set the Reception: STEREO/MONO/SAP feature for the type
of audio you want to record. See Other Features section.
AUDIO
L--l
2 Tape Playback: HI-FI
0 Exit
7. Press RECORD to start recording.
8. Press STOP when you are finished.
RECORDING AUDIO ONLY
You can record audio only from another audio source
connected to either the AUDIO IN 1 (R and L) jacks on the back
of the VCR or the jacks on the front of the VCR.
1. Press the INPUT button once to record from the back
AUDIO IN jacks. L1 will appear in the VCR's display panel.
Press the INPUT button twice to record from the front
AUDIO IN jacks. L2 will appear in the VCR's display panel.
2. Press the SPEED button on the remote if you want to
override the preferred Tape Speed setting.
3. Start audio source playing and press RECORD to begin
recording.
4. Press STOP when you are finished.
Recording audio only will erase
anything that was previously
recorded on the tape.
Audio Connection
AMPLIFIER/
RECEIVER
36
