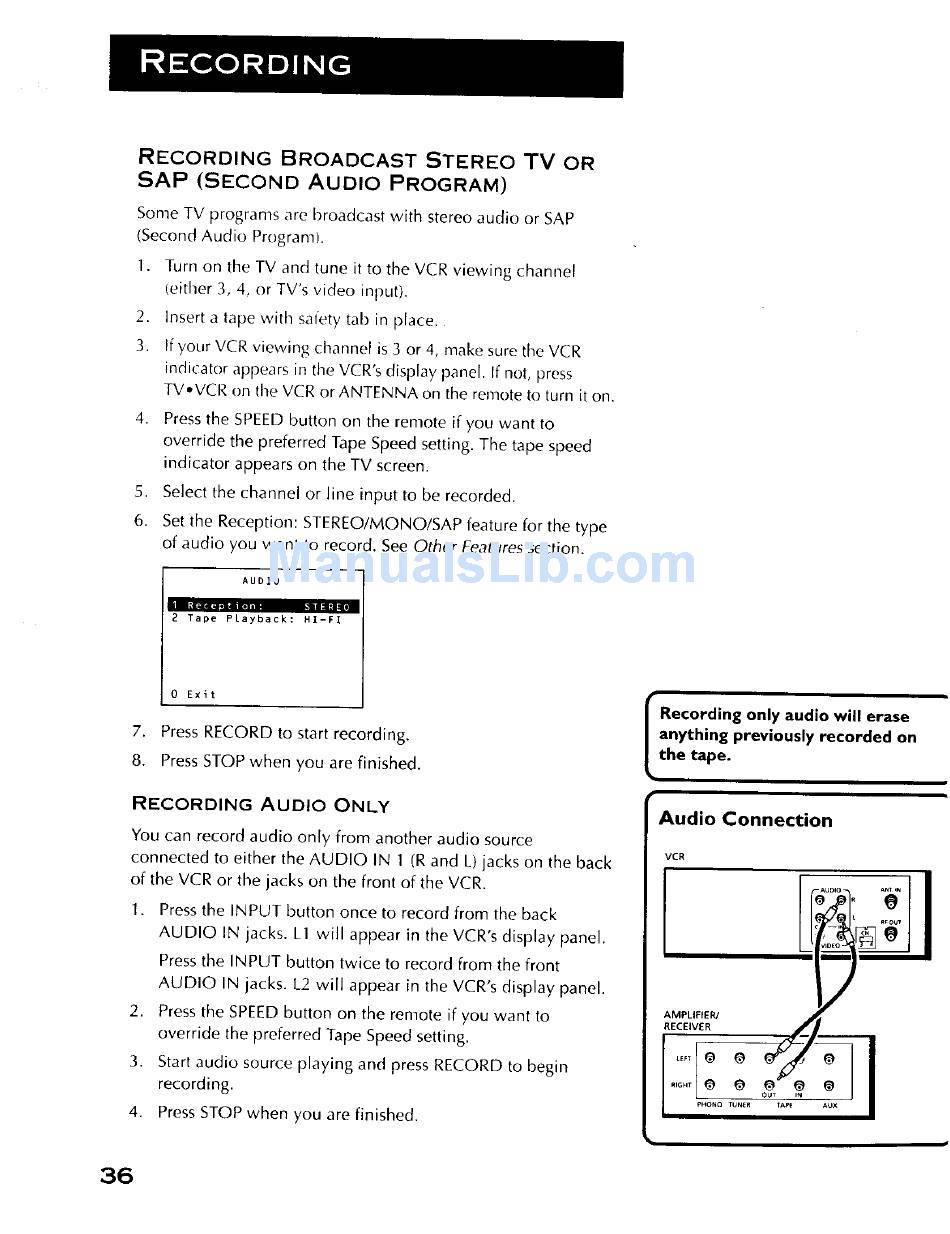

RECORDING BROADCAST STEREO
TV
OR
SAP
(SECOND AUDIO PROGRAM)
Some TV programs are broadcast with stereo audio or SAP
(Second Audio Program/.
1. Turn on the TV and tune it to the VCR viewing channel
(either 3, 4, or TV's video input).
2. Insert a tape with safety tab in place.
3. ff your VCR viewh_g channel is 3 or 4, make sure the VCR
indicator appears in the VCR's display panel. If not, press
TV,VCR on the VCR or ANTENNA on the remote to turn it on.
4, Press the SPEED button on the remote if you want to
override the preferred Tape Speed setting. The tape speed
indicator appears on the TV screen.
5. Select the channel or line input to be recorded.
6. Set the Reception: STEREO/MONO/SAP feature for the type
of audio you want to record, See Other Features section.
0 Exit
7. Press RECORD to start recording.
8. Press STOP when you are finished.
RECORDING AUDIO ONLY
You can record audio only
from
another audio source
connected to either the AUDIO IN 1 (R and L) jacks on the back
of the VCR or the jacks on the front of the VCR.
1. Press the INPUT button once to record from the back
AUDIO IN jacks. L1 will appear in the VCR's display panel.
Press the INPUT button twice to record from the front
AUDIO IN jacks. L2 will appear in the VCR's display panel.
2. Press the SPEED button on the remote if you want to
override the preferred Tape Speed setting.
3. Start audio source playing and press RECORD to begin
recording.
4. Press STOP when you are finished.
Recording only audio will erase
anything previously recorded on
the tape.
Audio Connection
VCR
AMPLIEtEW
RECEIVER
36
