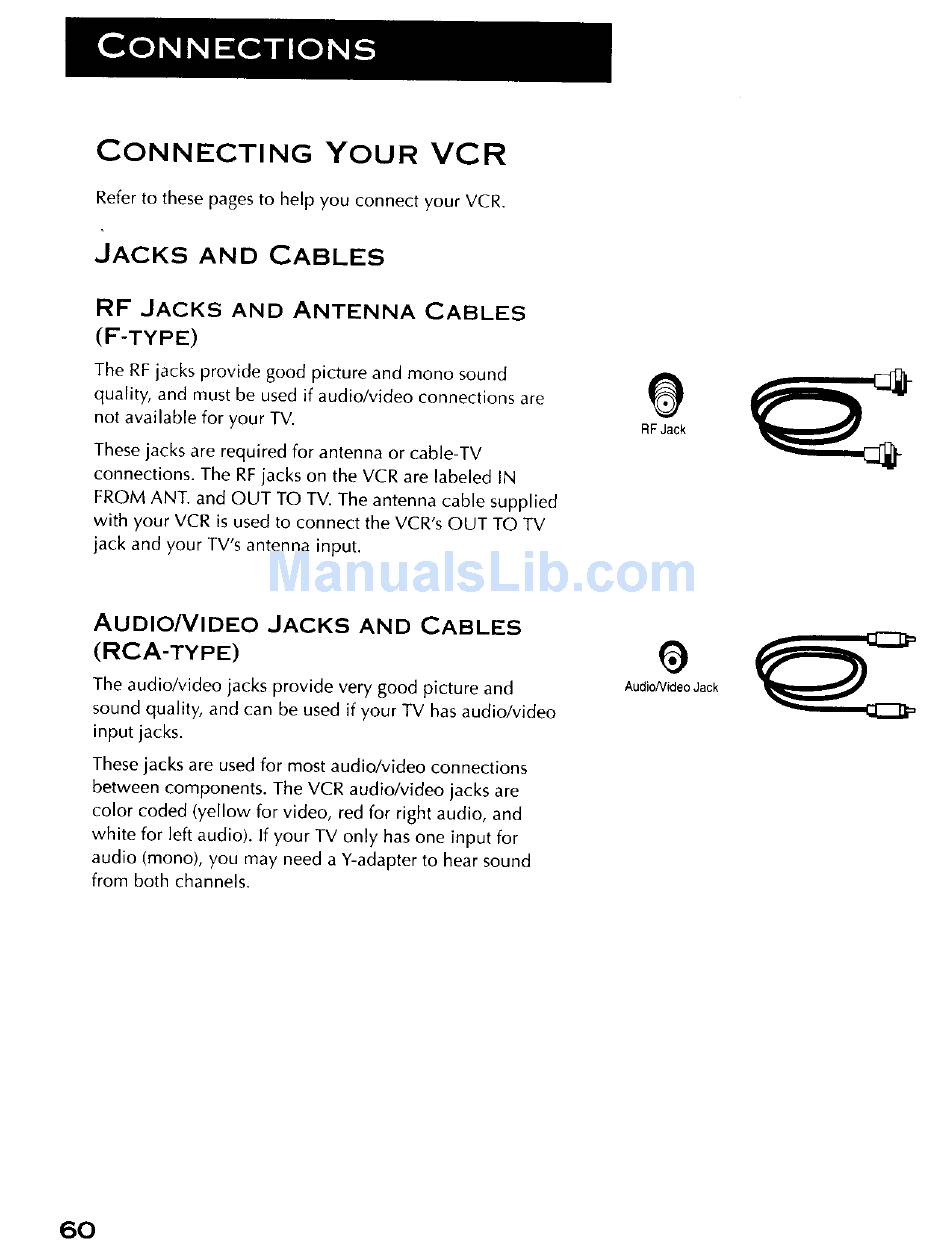

CONNECTING YOUR
VCR
Refer to these pages to help you connect your VCR.
JACKS AND CABLES
RF
JACKS AND ANTENNA CABLES
(F-TYPE)
The RF jacks provide good picture and mono sound
quality, and must be used if audio/video connections are
not available for your TV.
These jacks are required for antenna or cable-TV
connections. The RF jacks on the VCR are labeled IN
FROM ANT. and OUT TO TV. The antenna cable supplied
with your VCR is used to connect the VCR's OUT TO TV
jack and your TV's antenna input.
@
RF Jack
AUDIONIDEO JACKS AND CABLES
(RCA-TYPE)
The audio/video jacks provide very good picture and
sound quality, and can be used if your TV has audio/video
input jacks.
These jacks are used for most audio/video connections
between components. The VCR audio/video jacks are
color coded (yellow for video, red for right audio, and
white for left audio). If your TV only has one input for
audio (mono), you may need a Y-adapter to hear sound
from both channels.
O
Audio/VideoJack
6O
