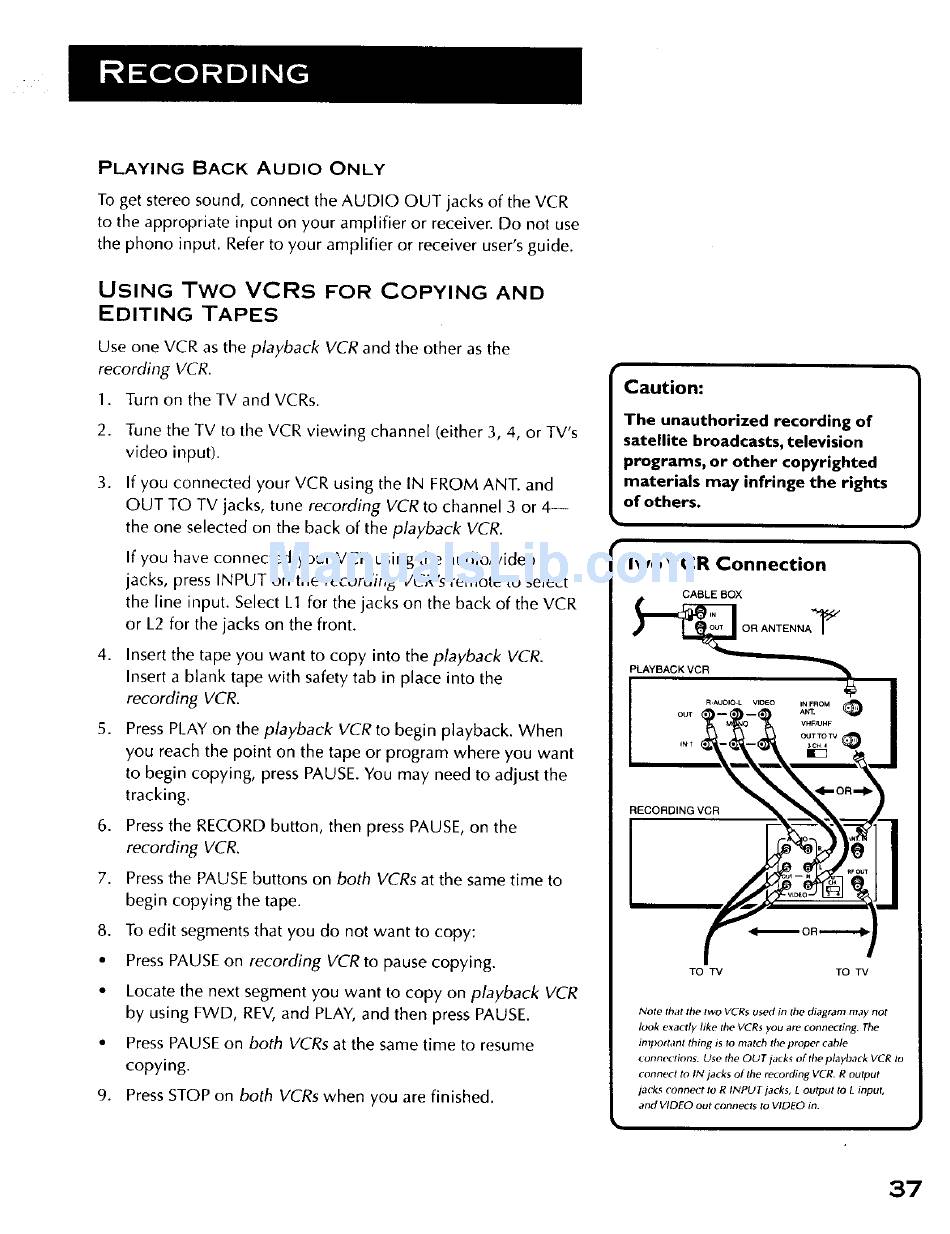

PLAYING BACK AUDIO ONLY
To get stereo sound, connect the AUDIO OUT jacks of the VCR
to the appropriate input on your amplifier or receiver. Do not use
the phono input. Refer to your amplifier or receiver user's guide.
USING TWO VCRS
FOR COPYING AND
EDITING TAPES
Use one VCR as the playback VCR and the other as the
recording VCR.
1. Turn on the TV and VCRs.
,
3.
,
Tune the TV to the VCR viewing channel (either 3, 4, or TV's
video input).
If you connected your VCR using the IN FROM ANT. and
OUT TO TV jacks, tune recording VCR to channel 3 or 4--
the one selected on the back of the playback VCR.
If you have connected your VCR using the audio/video
jacks, press INPUT on the recording VCR's remote to select
the line input. Select L1 for the jacks on the back of the VCR
or L2 for the jacks on the front.
Insert the tape you want to copy into the playback VCR.
Insert a blank tape with safety tab in place into the
recording VCR.
5. Press PLAY on the playback VCR to begin playback. When
you reach the point on the tape or program where you want
to begin copying, press PAUSE. You may need to adjust the
tracking.
6. Press the RECORD button, then press PAUSE, on the
recording VCR.
7. Press the PAUSE buttons on both VCRs at the same time to
begin copying the tape.
8. To edit segments that you do not want to copy:
• Press PAUSE on recording VCR to pause copying.
• Locate the next segment you want to copy on playback VCR
by using FWD, REV, and PLAY, and then press PAUSE.
• Press PAUSE on both VCRs at the same time to resume
copying.
9. Press STOP on both VCRs when you are finished.
Caution:
The unauthorized recording of
satellite broadcasts, television
programs, or other copyrighted
materials may infringe the rights
of others.
}
Two VCR Connection
CABLE BOX
OR ANTENNA"T _
PLAYBACKVCR
RECORDING VCR
TO T_/ TO TV
Note that the two VCRs used in the diagram may not
look exactly like the VCRs you ar_ connecting The
important thing is to match the proper cable
,onnl'ctions. Use the OUT ja_k_ of tile playback VCR to
connect to IN jacks of the recording VCR. R output
jacks connect to R INPUT jacks, L output to L input,
and VIDEO out connects to VIDEO in.
37
