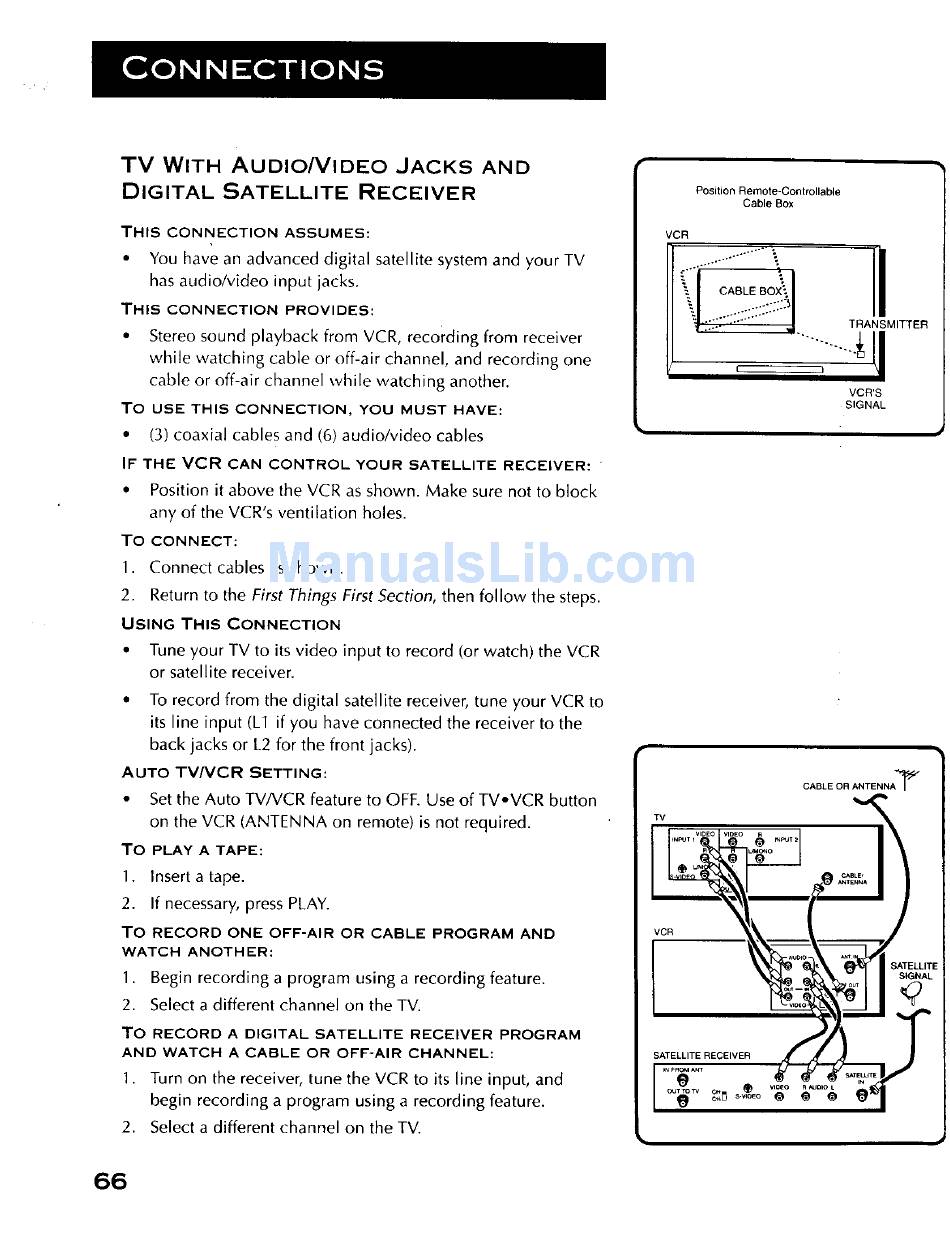

TV WITH AUDIONIDEO JACKS AND
DIGITAL SATELLITE RECEIVER
THIS CONNECTION ASSUMES:
• You have an advanced digital satellite system and your TV
has audio/video input jacks.
THIS CONNECTION PROVIDES:
• Stereo sound playback from VCR, recording from receiver
while watching cable or off-air channel, and recording one
cable or off-air channel while watching another.
TO
USE THIS CONNECTION, YOU MUST HAVE:
• (3) coaxial cables and (6) audio/video cables
IF THE VCR CAN CONTROL YOUR SATELLITE RECEIVER:
• Position it above the VCR as shown. Make sure not to block
any of the VCR's ventilation holes.
TO CONNECT:
1. Connect cables as shown.
2. Return to the First Things First Section, then follow the steps.
USING THIS CONNECTION
• Tune your TV to its video input to record (or watch) the VCR
or satellite receiver.
• To record from the digital satellite receiver, tune your VCR to
its line input (L1 if you have connected the receiver to the
back jacks or L2 for the front jacks).
AUTO TVNCR SETTING:
• Set the Auto TV/VCR feature to OFF. Use of TV•VCR button
on the VCR (ANTENNA on remote) is not required.
TO
PLAY A TAPE:
1. insert a tape.
2. If necessary, press PLAY.
TO
RECORD ONE OFF-AIR OR CABLE PROGRAM AND
WATCH ANOTHER:
1. Begin recording a program using a recording feature.
2. Select a different channel on the TV.
TO
RECORD A DIGITAL SATELLITE RECEIVER PROGRAM
AND WATCH A CABLE OR OFF-AIR CHANNEL:
1. Turn on the receiver, tune the VCR to its line input, and
begin recording a program using a recording feature.
2. Select a different channel on the TV.
Position Remote-Controllable
Cable Box
VCR
222222"'222222222222222
i
TRANSMITTER
VCR'S
SIGNAL
66
