Quick Start — TPS150 Switching and Transmission System
Step 10

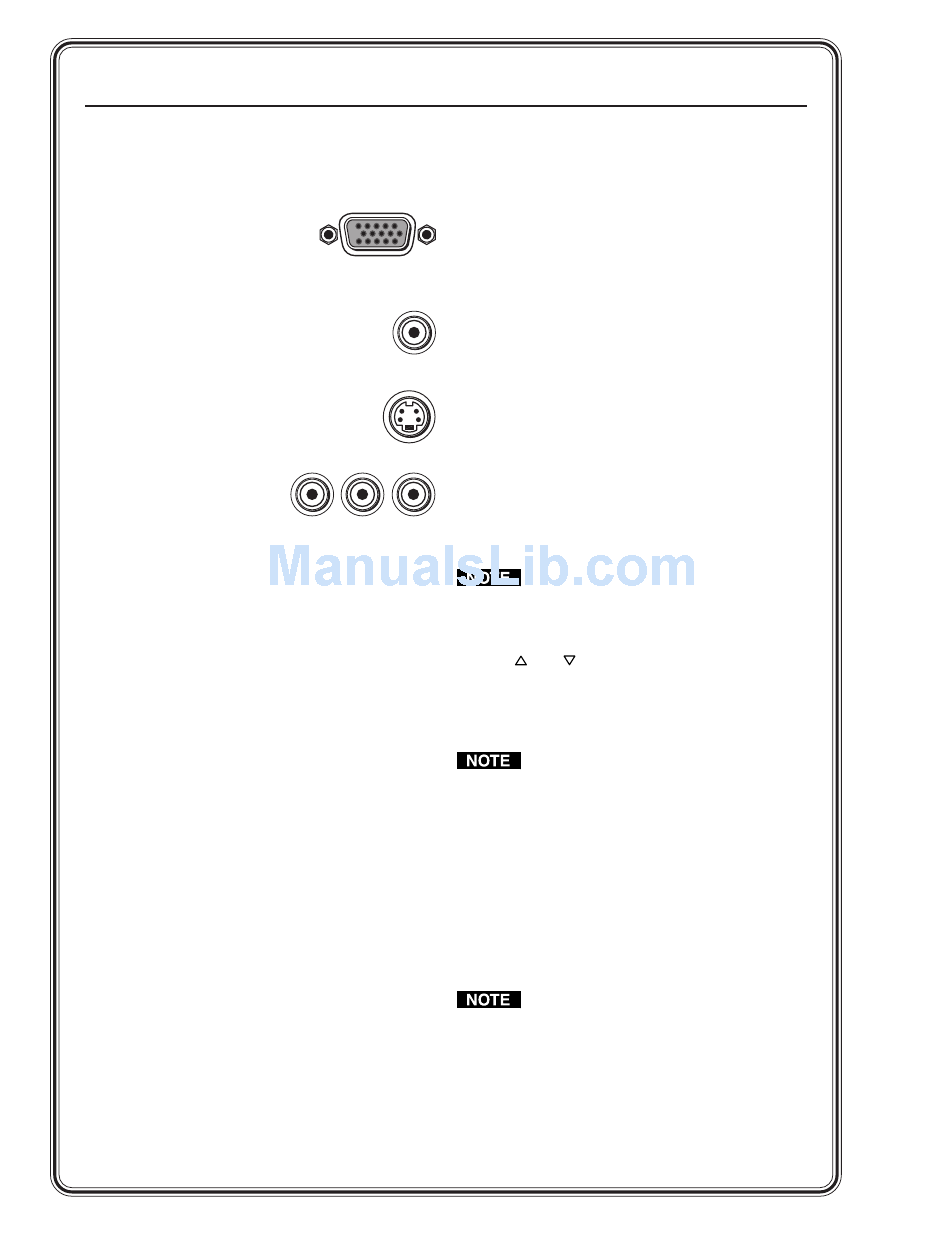

Connect a projector or plasma display to the
receiver's video outputs.
Output 1 — Connect a
VGA cable between the
15-pin HD female
connector and the VGA or RGB input on the
display.
Output 2 — Connect a composite
video cable between this BNC female
connector and the composite video
input on the display.
Output 3 — Connect an S-video
cable between this 4-pin mini DIN
female connector and the S-video
input on the display.
Output 4 — Connect a
cable between these
BNC female connectors
and the component
video input on the display.
Step 11
Connect a serial cable between the receiver's
RS-232 Port connector and the serial control
connector on the display for control of the
display. See the drawing on page QS-1 to wire
the connector for RS-232. See chapter 2,
Installation, for RS-422 and RS-485 control.
Step 12
Plug the transmitter, receiver, and input and
output devices into a grounded AC source, and
turn on the transmitter and input and output
devices.
Setup and Operation
Input and projector codes
When user-specified serial commands are
programmed for the Input Select buttons and the
Projector Power button, the transmitter sends that
serial command to the receiver when the button
is pressed. The receiver, in turn, issues the
command to the projector.
When a user-specified power on (warm up) or
power off (cool down) delay is programmed into
the transmitter, the transmitter disables all front
panel controls for the duration of the delay.
The projector power timeout function (if enabled)
automatically powers off the projector after a
user-defined interval.
QS-2
TPS150 Switching and Transmission System • Quick Start
See chapter 4, Serial Communications, to:
• Program a serial command to each of the
transmitter's Input Select buttons.
• Program projector power on and power off
commands to the Projector Power button.
• Set the projector power timeout function.
• Program the projector power delays.
Transmitter Operation
Input Select buttons and LEDs select and
identify inputs.
Blank button and LED toggle the video mute
function on and off and identify the mute on
or off status.
Projector Power button, when programmed,
commands the projector to power itself on
and off.
Projector Power LED, when lit, indicates that the
R-Y
Y
B-Y
projector power is on. The LED blinks during
the power on and off delay (if programmed).
Volume
• Increase and decrease the output volume.
• Increase and decrease the selected input's
audio level.
Mute button and LED toggle the audio mute
function on and off and identify the mute on
or off status.
Receiver Operation
Cable Equalization Select button and LEDs
toggle between high frequency and low
frequency to equalize using the Cable
Equalization button and indicate the selection.
Cable Equalization Adjust button increase (+)
and decrease (–) the amount of equalization
applied to the selected frequency range (high
or low) of the output signal.
Skew Adjustment controls (rear panel) correct for
the delay inherent in network (CAT 5) cable.
Some projectors use the same command
for power on and off. If the same code is
specified for on and off, the Projector
Power LED blinks for each button push.
and
buttons
Press and hold the appropriate Input
Select button while you use the Volume
buttons to adjust that input's level.
Low frequency affects the visible image
smear. High frequency affects the detail
and sharpness.
