Installation, cont'd

Video (MAV Plus switchers only)

The switcher can connect to up to as many as 32 S-video or composite video or up
to 16 component/HDTV video, S-video, or composite video sources, depending on
the model. The switcher can output to as many as 32 S-video or composite video or
up to 16 component video, S-video, or composite video devices, depending on the
model.
1
2
MAV Plus 816, 168, 1616
HDA and HD
Component/HDTV video

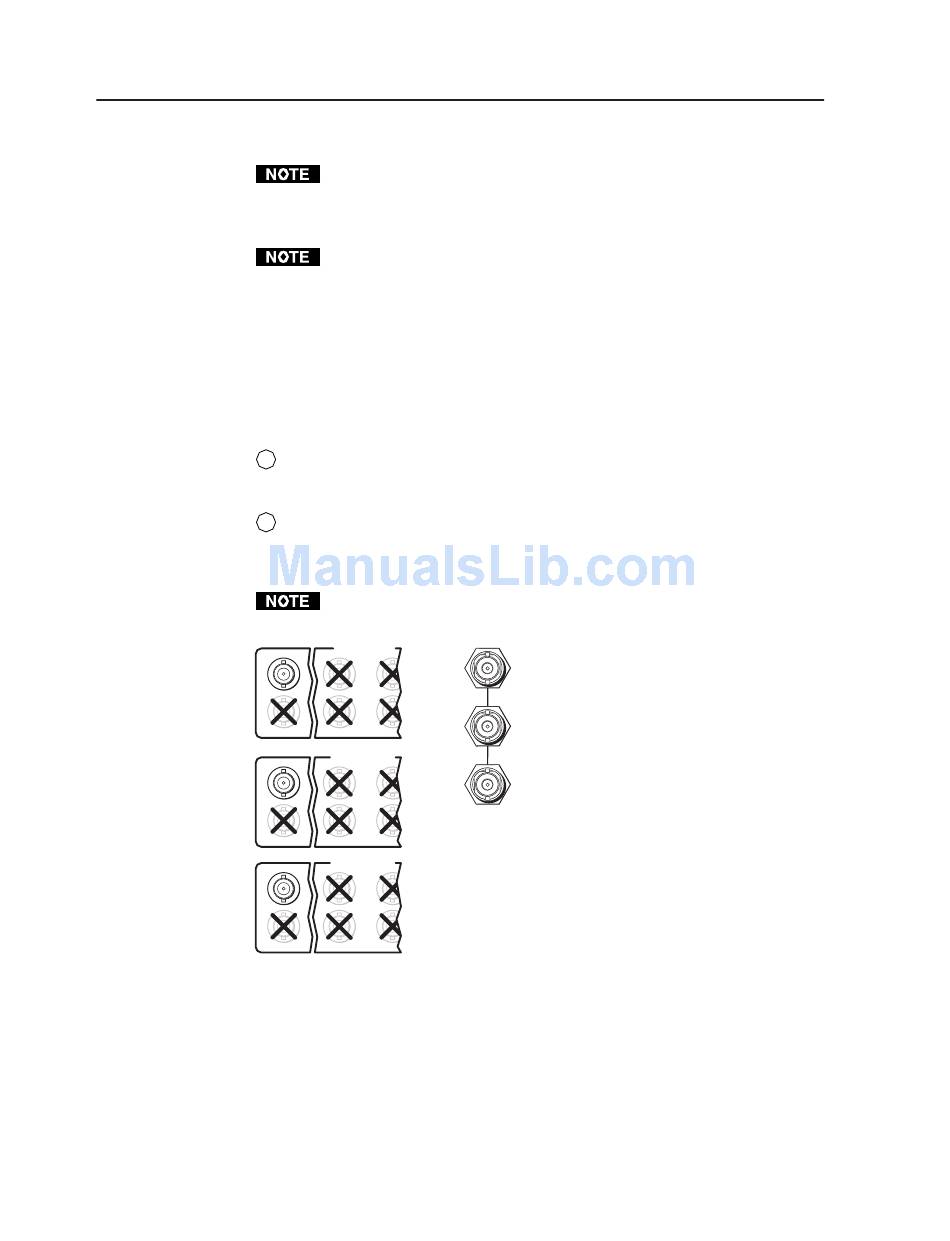

Figure 2-12 — MAV Plus component/HDTV video connections
2-10 CrossPoint 450 Plus and MAV Plus Switchers • Installation
Video input and output connections are made with female BNC connectors.
Some video input and output devices do not have BNC video output
connectors. For these cases, a suitable cable or connector adapter is necessary.
The part number for the Extron RCA-to-BNC adapter is 10-229-01.
The connectors for each video plane are grouped together (for example, for
component/HDTV switchers, all of the Y inputs grouped together, all of the
R-Y inputs grouped, and so on). Ensure that you connect the input on each
video plane to the corresponding connector in the correct group (figure 2-12,
through figure 2-14, below and on the next page).
Video inputs — Connect component/HDTV video (figure 2-12),
S-video (figure 2-13), or composite video (figure 2-14) inputs, as applicable, to
these BNC connectors for each input.
Video outputs — Connect component/HDTV video (figure 2-12),
S-video (figure 2-13), or composite video (figure 2-14) displays, as applicable,
or other devices to these BNC connectors for each output. Figure 2-14 shows
how to connect the various video formats to each MAV Plus configuration.
The S-video (figure 2-13) and composite video (figure 2-14) connection
drawings are all on the next page.
Y INPUTS
1 7
2 8
R-Y INPUTS
1 7
2 8
MAV Plus 88, 128
HDA and HD
Composite/HDTV video
B-Y INPUTS
1 7
2 8
1
