Active window selection

Press the Active window selection button repeatedly to cycle through all
active input windows (the green LED lights). An active window is
available only if its corresponding Input selection button has been
previously selected (indicated by the Input selection button's green LED being lit).
The selected window, which has a green border, can then be configured. Cycling
past the fourth window turns off all LEDs, and all windows are deselected. If the
selected window has been modified, the window is deselected after 5 seconds, and
the LED turns off.

Menu and Next buttons with the LCD panel

Press the Menu button to access the menu system. Press the
Next button to step through the submenus. The LCD panel
3-6 MVP 104GX Operation
Input 2
Input 1
Input 4
Input 1
Input 4
Input 1 Input 2
Input 1
Input 3
Input 1
Input 1
Input 2 Input 3
Input 1
Input 1

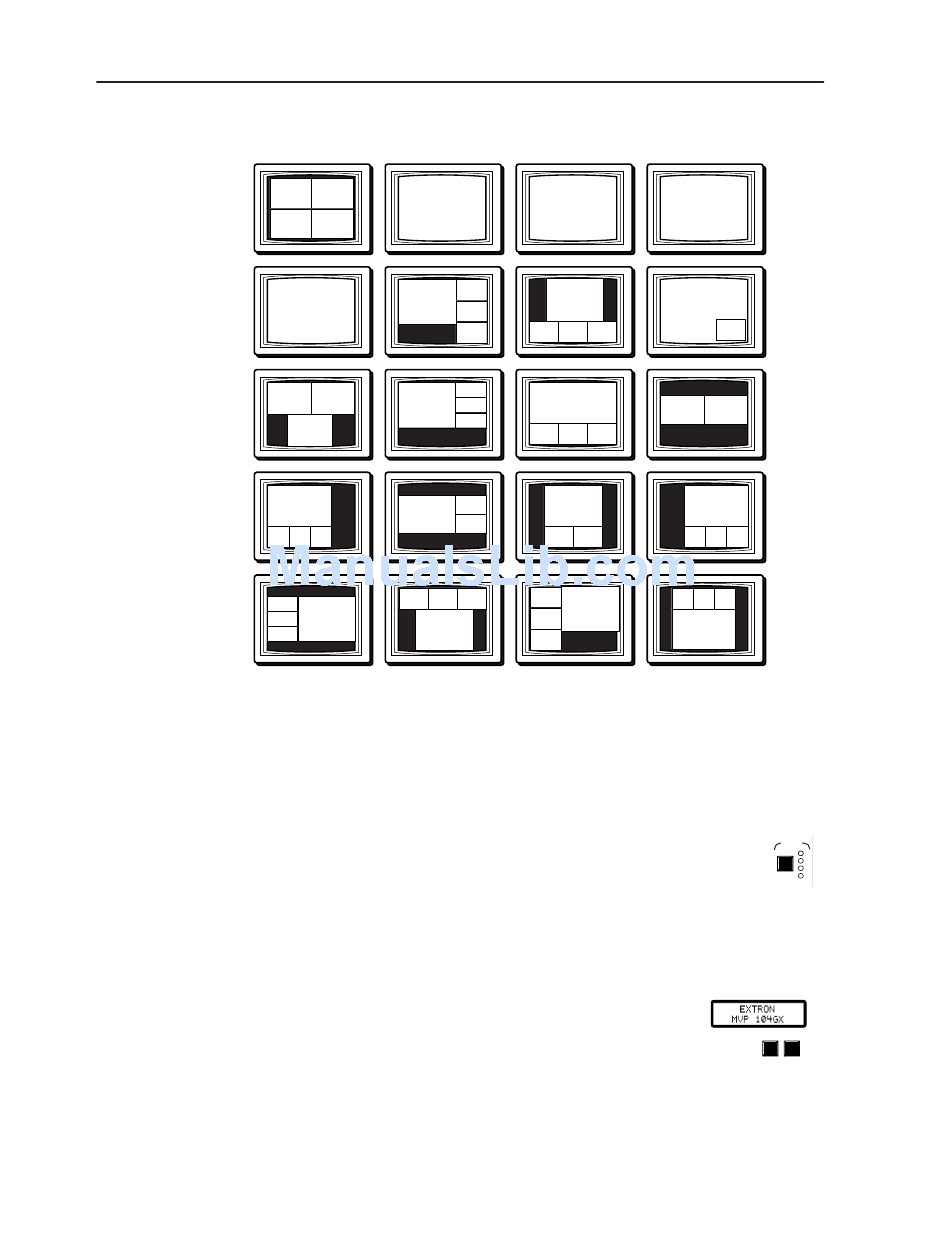

Figure 3-4 — MVP 104GX factory preset
