Connecting the MVP 104GX

The MVP 104GX can be connected to as many as four input devices simultaneously
and output to as many as three devices simultaneously. Follow the steps below
and see the installation example in figure 2-3.

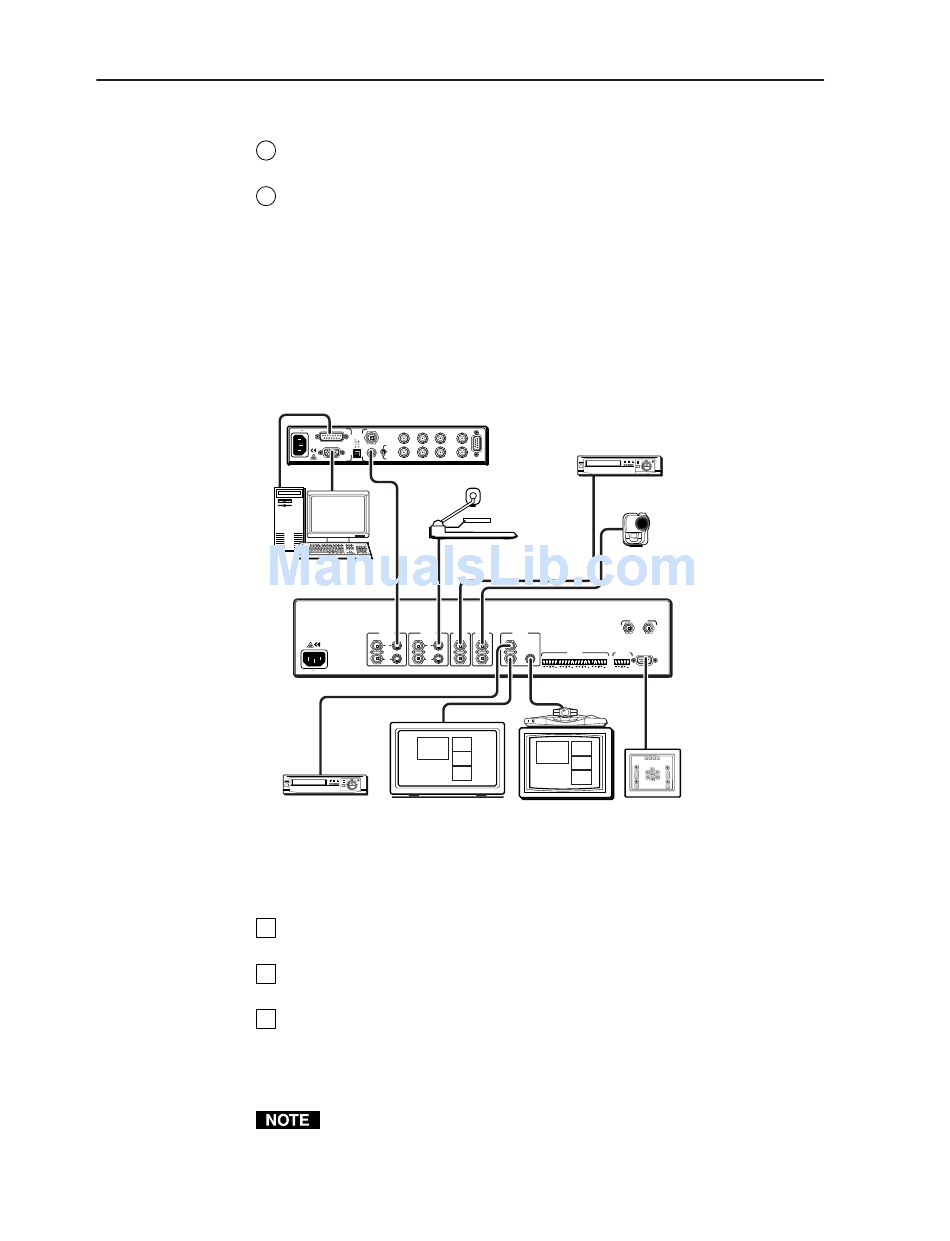

Figure 2-3 — MVP 104GX installation example
1
2
3
2-4 MVP 104GX Installation
Genlock input — Connect an external black burst signal for genlocking the
video signal in broadcast or other sync-critical applications.
Genlock output — Connect any downstream equipment that requires
genlocking for broadcast or other sync-critical applications.
VIDEO GENLOCK
100-240 V 0.3A
R/R-Y G/Y B/B-Y
O
I
U
N
T
P
MAC
P S-VIDEO
U S-VIDEO
U
T
T RGB
S
S
H V S
R-Y/B-Y/Y
50/60 Hz VGA
VSC 150
Document
Camera
PC Computer
INPUT 1 INPUT 2 INPUT 3
IN IN
OUT OUT
100-240V 50/60 Hz 0.5A
Rear
VCR Plasma Display
OUTPUTS
If the MVP 104GX is to be rack mounted, see the earlier Rack Mounting
Procedure.
Turn off power to the MVP 104GX and all other devices that will be
connected.
Using Inputs 1, 2, 3, and 4, attach up to four composite/S-video input devices
to the MVP 104GX. Inputs 1 and 2 can be either composite video or
S-video, inputs 3 and 4 are composite video only. The buffered loopout
connectors for all inputs can be used to output the identical signal to other
devices.
Any inputs must be either all NTSC or all PAL, they cannot be both.
INPUTS
IN
OUT
RS-232
VCR
Video
Camera
GENLOCK
IN
INPUT 4 OUTPUT
A
IN IN
INPUTS OUTPUT RS-232/RS-422
L 1 R L 2 R L 3 R L 4 R L 1 R
B C
OUT OUT
REMOTE
Videoconferencing RS-232
System Control
OUT
