Extron electronics CVC 200 User Manual

Specifications, cont'd
Video output
Number/signal type ................... 1 RGBHV, RGBS
Connectors .................................... 6 BNC female
Nominal level ............................... 0.7V p-p for RGB
Minimum/maximum levels ...... RGB ............ 0.4V to 1.0V p-p
Impedance .................................... 75 ohms
Return loss .................................... <-30dB @ 5 MHz
DC offset ....................................... <0.1V with input at 0 offset
General
Power ............................................. 100VAC to 240VAC, 50/60 Hz, 12 watts, internal,
autoswitchable
Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) /
10% to 90%, non-condensing
Operating +32° to +122°F (0° to +50°C) /
10% to 90%, non-condensing
Rack mount ................................... Yes, with optional rack shelf,
part #60-190-01 or #60-604-01
Enclosure type .............................. Metal
Enclosure dimensions ................. 1.6" H x 8.75" W x 9.4" D
(1U high, half rack width)
4.1 cm H x 22.2 cm W x 23.9 cm D
(Depth excludes connectors.)
Product weight ............................. 2.8 lbs (1.3 kg)
Shipping weight .......................... 5 lbs (2.3 kg)
Vibration ....................................... ISTA/NSTA 1A in carton
(International Safe Transit Association)
Listings .......................................... UL, CUL
Compliances ................................. CE
MTBF ............................................. 30,000 hours
Warranty ....................................... 3 years parts and labor
Specifications are subject to change without notice.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
USA The Netherlands
714.491.1500 +31.33.453.4040
www.extron.com
Fax 714.491.1517 Fax +31.33.453.4050
© 2003 Extron Electronics. All rights reserved.
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Daisan DMJ Building 6F
PM Industrial Building 3-9-1 Kudan Minami
Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400 +81.3.3511.7655
Fax +65.6383.4664 Fax +81.3.3511.7656
User's Guide

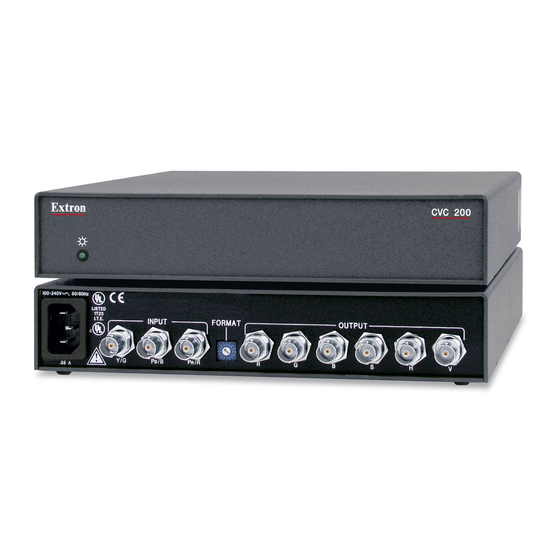

CVC 200
Component Video and HDTV to RGB Converter
68-437-01 Rev. C
Printed in the USA
12 03
