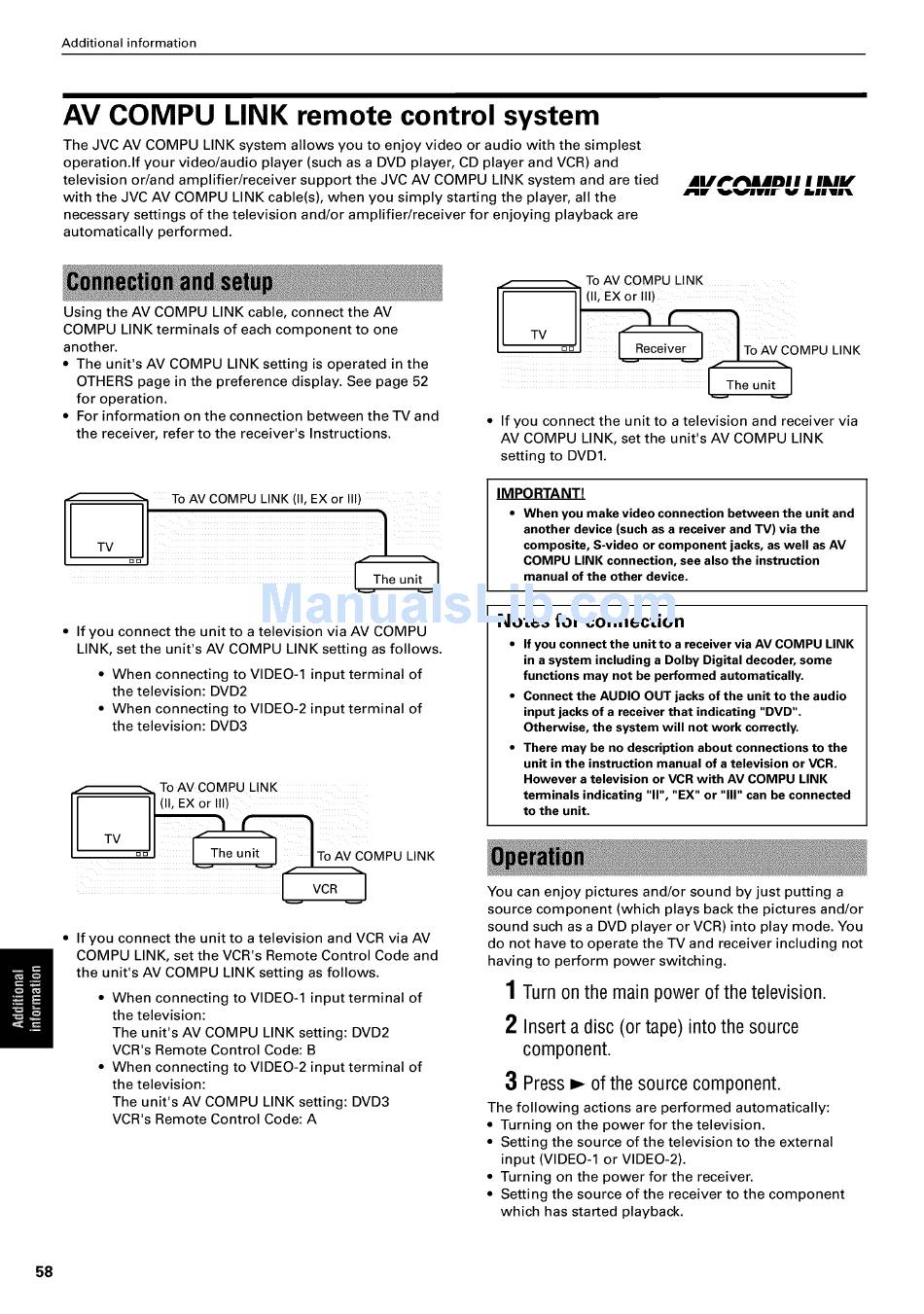

AV COMPU LINK remote control system
The JVC AV COMPU LINK system allows you to enjoy video or audio with the simplest
operation.If your video/audio player (such as a DVD player, CD player and VCR) and
television or/and amplifier/receiver support the JVC AV COMPU LINK system and are tied
with the JVC AV COMPU LINK cable(s), when you simply starting the player, all the
necessary settings of the television and/or amplifier/receiver for enjoying playback are
automatically performed.
Aldr t'_t_iJl211 I IILIIf
_IIY _VIVIf _ hilgVll
Using the AV COMPU LINK cable, connect the AV
COMPU LINK terminals of each component to one
another.
• The unit's AV COMPU LINK setting is operated in the
OTHERS page in the preference display. See page 52
for operation.
• For information on the connection between the TV and
the receiver, refer to the receiver's Instructions.
_ ToAVCOMPULNK( ,EXor )
TV !u
• If you connect the unit to a television via AV COMPU
LINK, set the unit's AV COMPU LINK setting as follows.
• When connecting to VIDEO-1 input terminal of
the television: DVD2
• When connecting to VIDEO-2 input terminal of
the television: DVD3
To AV COMPU LINK
(11,EX or III)
To AV COMPU LINK
• If you connect the unit to a television and VCR via AV
COMPU LINK, set the VCR's Remote Control Code and
the unit's AV COMPU LINK setting as follows.
• When connecting to VIDEO-1 input terminal of
the television:
The unit's AV COMPU LINK setting: DVD2
VCR's Remote Control Code: B
• When connecting to VIDEO-2 input terminal of
the television:
The unit's AV COMPU LINK setting: DVD3
VCR's Remote Control Code: A
To AV COMPU LINK
(11,EX or III)
To AV COMPU LINK
• If you connect the unit to a television and receiver via
AV COMPU LINK, set the unit's AV COMPU LINK
setting to DVD1.
IMPORTANT!
• When you make video connection between the unit and
another device (such as a receiver and TV) via the
composite, S-video or component jacks, as well as AV
COMPU LINK connection, see also the instruction
manual of the other device.
Notes for connection
• If you connect the unit to a receivervia AV COMPU LINK
in a system including a Dolby Digital decoder,some
functions may not be performed automatically.
• Connect the AUDIO OUT jacks of the unit to the audio
input jacks of a receiverthat indicating "DVD".
Otherwise, the system will not work correctly.
• There may be no description about connections to the
unit in the instruction manual of a television or VCR.
However a television or VCR with AV COMPU LINK
terminals indicating "11","EX" or "111" c an be connected
to the unit.
You can enjoy pictures and/or sound by just putting a
source component (which plays back the pictures and/or
sound such as a DVD player or VCR) into play mode. You
do not have to operate the TV and receiver including not
having to perform power switching.
1 Turn on the main power of the television.
2 Insert a disc (or tape) into the source
component.
3 Press _,- of the source component.
The following actions are performed automatically:
• Turning on the power for the television.
• Setting the source of the television to the external
input (VIDEO-1 or VIDEO-2).
• Turning on the power for the receiver.
• Setting the source of the receiver to the component
which has started playback.
58
