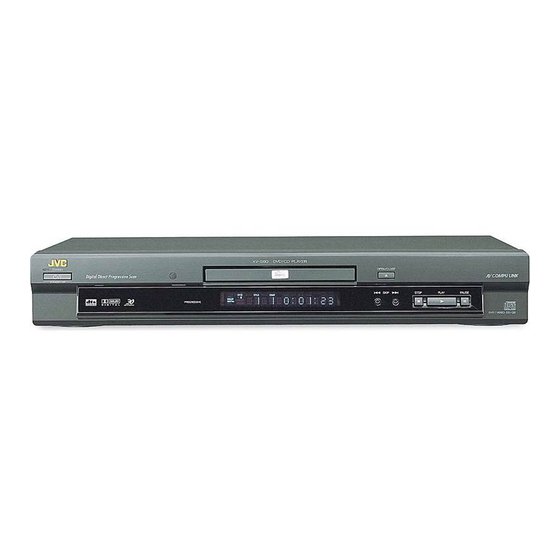

JVC XV-S60BK Instructions Manual

Jvc dvd video player instructions
Hide thumbs

Advertisement

Quick Links

DVD VIDEO PLAYER
XV-S60BK/XV-S62SL
TV
DVD
STANDBY/ON
OPEN
/COSE
TV
DVD
3D
TV/VIDEO
REPEAT
PHONIC
CANCEL
RETURN
TV1
TV2
TV3
1
2
3
TV4
TV5
TV6
4
5
6
TV7
TV8
TV9
7
8
9
TV -/--
TV0
MUTING
+10
10
0
ANGLE
SUBTITLE
AUDIO
VFP
PROGRESSIVE
SCAN
DIGEST
-
ZOOM
+
SELECT
3
+
CH
5
VOL
VOL
STANDBY
-
+
ENTER
STANDBY/ON
CH
-
REMOTE CONTROL
DVD/SUPER VCD/VCD/CD PLAYER
PROGRESSIVE
VIDEO CD
INSTRUCTIONS
OPEN/CLOSE
0
4
¢
STOP
PLAY
PAUSE
SKIP
7
3
8
DVD/SUPER VCD/VCD/CD
For Customer Use:
Enter below the Model No. and Serial No.
which are located on the rear, bottom or
side of the cabinet. Retain this information
for future reference.
Model No.
Serial No
LET0184-014B
[US,UW,UB]

Advertisement

loading

  Related Manuals for JVC XV-S60BK

  Summary of Contents for JVC XV-S60BK

  • Page 1 DVD VIDEO PLAYER XV-S60BK/XV-S62SL STANDBY/ON OPEN /COSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT STANDBY ENTER STANDBY/ON ∞ PROGRESSIVE REMOTE CONTROL VIDEO CD DVD/SUPER VCD/VCD/CD PLAYER OPEN/CLOSE ¢ STOP PLAY PAUSE...
  • Page 2 Undg uds t- AVOID DIRECT EXPOSURE urkopplad. Betrakta ej telse for str ling TO BEAM. str len. Front XV-S60BK XV-S62SL Stand heigh 5 cm or mor Floor VARO: Avattaessa ja suo- jalukitus ohitettaessa olet alttiina n kym tt m lle lasers teilylle.
  • Page 3 English 4 ¢...
  • Page 5 To playback in random order [RANDOM] You can play tracks on an Audio CD, Video CD or SVCD disc in random order by using the Random function. ÷ While stopped Press ON SCREEN. The on-screen display appears on the TV screen. Use CURSOR 5/∞...
  • Page 6 © © "...
  • Page 7 1 STANDBY indicator 3 Remote sensor 2 STANDBY/ON button STANDBY STANDBY/ON PROGRESSIVE 6 PROGRESSIVE indicator 5 0 (OPEN/CLOSE) button 4 Disc tray DVD/SUPER VCD/VCD/CD PLAYER OPEN/CLOSE ¢ STOP SKIP 7 Display window 8 4/¢ (SKIP) buttons PLAY PAUSE DVD/SUPER VCD/VCD/CD - 8 (PAUSE) button 0 3 (PLAY) button 9 7 (STOP) button...
  • Page 8 1 OPEN/CLOSE button 2 REPEAT button 3 3D PHONIC button 4 Numeric buttons 5 ANGLE button 6 SUBTITLE button 7 DIGEST button 8 4/PREVIOUS button 9 7/CLEAR button 0 1/SLOW– button - TITLE button = CURSOR(5 Up, ∞ Down) - CH(+/–) buttons ~ CHOICE button STANDBY/ON OPEN...
  • Page 10 1 Audio format indicators 2 Disc indicator 3 3 (play)/8 (pause) indicators LPCM VCDVD MPEG DOLBY PROGRAM DIGITAL RANDOM 6 PROGRAM/RANDOM indicators & ! & 1 DIGITAL OUT jack(s) (OPTICAL/COAXIAL) 2 VIDEO OUT - VIDEO jack PCM / STREAM RIGHT LEFT OPTICAL COAXIAL...
  • Page 11 5 ° 2 3 1 / 3 REPEAT STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN Numeric buttons TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT CURSOR ENTER ENTER 5/∞/2/3 ∞ REMOTE CONTROL (for Audio CD) (for DVD VIDEO) (for Video CD/SVCD)
  • Page 12: Table Of Contents

    (PREFERENCE 2) (PREFERENCE 1) PREFERENCE1 PREFERENCE1 PREFERENCE2 DIGITAL AUDIO OUTPUT MENU LANGUAGE ENGLISH DOWN MIX AUDIO LANGUAGE ENGLISH COMPRESSION SUBTITLE AUTO STANDBY ON SCREEN LANGUAGE ENGLISH SCREEN SAVER ON SCREEN GUIDE AV COMPULINK MODE MONITOR TYPE 4:3 LB AUTO PROGRESSIVE MODE PRESS PRESS PARENTAL LOCK...
  • Page 13 (for Video CD) Current relative position of the AUDIO track (St: start, End: end) REPEAT ALL REPEAT A-B REPEAT TRACK 4 : 58 TIME SEARCH 10 Mb TIME PRESS ENTER EXECUTE PBC CALL Transmission rate (for SVCD) AUDIO SUBTITLE 1 / 4 REPEAT A-B REPEAT TRK.
  • Page 14: Angle

    TV -/-- MUTING ANGLE SUBTITLE AUDIO...
  • Page 15 VIDEO CD Title 1 Chapter 1 Chapter 2 Chapter 3 Track 1 Track 2 Title 2 Chapter 1 Chapter 2 Track 3 Track 4...
  • Page 16: Audio

    The unit VIDEO PCM / STREAM COMPONENT RIGHT LEFT OPTICAL COAXIAL S-VIDEO DIGITAL OUT AUDIO OUT VIDEO OUT White Yellow Audio/Video cable (supplied) If the TV has an AV COMPU LINK terminal, you can use the AV COMPU LINK function. AV COMPU LINK VIDEO OUT See “AV COMPU LINK remote control...
  • Page 17 Blue Green The unit VIDEO PCM / STREAM COMPONENT RIGHT LEFT OPTICAL COAXIAL S-VIDEO DIGITAL OUT AUDIO OUT VIDEO OUT White Audio cable (not supplied) ¦ STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO VFP - PROGRESSIVE SCAN...
  • Page 18 The unit VIDEO PCM / STREAM COMPONENT RIGHT LEFT OPTICAL COAXIAL S-VIDEO DIGITAL OUT AUDIO OUT VIDEO OUT White Audio cable (not supplied) AV COMPU LINK VIDEO OUT SELECT NTSC White Amplifier or receiver LEFT AUDIO RIGHT...
  • Page 19 The unit VIDEO PCM / STREAM COMPONENT RIGHT LEFT OPTICAL COAXIAL S-VIDEO DIGITAL OUT AUDIO OUT VIDEO OUT White Audio cable (not supplied) The OPTICAL jack is protected by the hinged cover. To connect the optical cable to the jack, press the cover with the plug and connect it to the jack inside in the correct direction.
  • Page 21 Remote sensor DVD/SUPER VCD/VCD/CD PLAYER STANDBY STANDBY/ON PROGRESSIVE STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- TV MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL OPEN/CLOSE ¢ SKIP STOP PLAY PAUSE DVD/SUPER VCD/VIDEO CD/CD...
  • Page 22 TV STANDBY/ON TV/VIDEO - CANCEL Numeric buttons TV - DVD switch STANDBY/ON OPEN /CLOSE DVD STANDBY/ON TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT button ENTER ∞ REMOTE CONTROL...
  • Page 23 TV/VIDEO CANCEL TV -/-- MUTING + 10 CH + ∞ CH -...
  • Page 24 STANDBY/ON OPEN /CLOSE DVD STANDBY/ON TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING STANDBY/ON STANDBY STANDBY/ON PROGRESSIVE O CD VC D/V /C LO UP ER DV D/S ¢ /C D D /V • R VC /S U D VD -S 30 GL E P TIT VC DV...
  • Page 25: Subtitle

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL Press 3. NOTES Press 7. Press 8. STANDBY STANDBY/ON PROGRESSIVE Basic control buttons DVD/SUPER VCD/VCD/CD PLAYER OPEN/CLOSE ¢...
  • Page 26 ¦ "...
  • Page 28 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL Example: STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM...
  • Page 29 5 ° STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST...
  • Page 30: Repeat

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ ¦ TITLE 10 Mb TIME GO TO CHAPTER= Message area ¢ ¦ ANGLE 1 / 3 AUDIO 2 / 3 SUBTITLE 1 / 3 REPEAT...
  • Page 31 (for DVD VIDEO) (for Audio CD) TRACK 1 ANGLE 1 / 3 AUDIO 2 / 3 SUBTITLE 1 / 3 GO TO REPEAT A-B REPEAT TITLE CHAPTER 1 : 34 : 58 TIME SEARCH 10 Mb TIME GO TO 1 ENTER CHAP.SEARCH Selected time...
  • Page 32 Selected scene 4 ¢ ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT 1, 2 ENTER ∞ RM-SXVM50J REMOTE CONTROL...
  • Page 33 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL TV -/-- MUTING ANGLE SUBTITLE AUDIO DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ZOOM x 4 ZOOM x 4...
  • Page 34 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL (for Audio CD) (for Video CD/SVCD) TRACK 1 TIME 3 : 54 EACH TRACK 1 TIME REMAIN TIME SELECT REPEAT...
  • Page 35: Track 1 Time 3

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ (for Video CD/SVCD) (for Audio CD) TRACK 1 EACH TRACK 1 TIME 3 : 54 REMAIN TIME SELECT REPEAT...
  • Page 36 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ TITLE REPEAT TITLE CHAPTER 1 : 34 : 58 10 Mb TIME PRESS ENTER EXECUTE Selected repeat mode TITLE REPEAT (current title repeat)
  • Page 37: (For Audio Cd)

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ (for DVD VIDEO) TITLE 0 : 08 : 52 10 Mb TIME Point A Point B (for Video CD) TRACK 10 Mb...
  • Page 38: Tv2 Tv3

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING 1, 2 ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ Example: 1 / 3 2 / 3 3 / 3 ¦ 1 / 3 STANDBY/ON OPEN /CLOSE...
  • Page 39: Select

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ The selected camera angle NOTES 1, 2 ¦ STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING...
  • Page 40: (For Video Cd/Svcd)

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO 2, 3 PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ Total number (for DVD VIDEO) (for SVCD) ANGLE 1 / 3 AUDIO 2 / 3 SUBTITLE 1 / 3 REPEAT...
  • Page 41: Track

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO 1, 2 PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ 1 / 3 ENGLISH STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE...
  • Page 42 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ Selected preset NORMAL CINEMA NORMAL CINEMA USER1 USER2 USER 1 CONTRAST USER 2 Level Parameter...
  • Page 43 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL 1, 2 RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ Selected effect mode ACTION DRAMA 3D PHONIC THEATER THEATER 3D PHONIC THEATER Effect level...
  • Page 44: Time 3

    STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ (for Audio CD) (for Video CD/SVCD) TRACK 8 TIME 0 : 58 EACH TRACK 1 TIME SELECT REPEAT A-B REPEAT...
  • Page 45 Group 1 up to 10 Group Track 1 Group 1´ layers up to 100 Tracks per Group Group 2 4/¢ LPCM VCDVD MPEG DOLBY PROGRAM DIGITAL RANDOM STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN...
  • Page 46 MP3 disc playback Specifying the desired Group and Track When loading an MP3 disc, after the disc contents are read, the MP3 CONTROL display automatically appears on the TV screen. You can specify the desired Group and Track for playback via this display. M P 3 C O N T R O L G R O U P : You can specify the desired Group/Track from the display...
  • Page 47 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- TV MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ English English "#...
  • Page 48 STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO PROGRESSIVE SCAN DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL ¦ PREFERENCE 2 PREFERENCE 1 PREFERENCE1 PREFERENCE2 PREFERENCE1 MENU LANGUAGE ENGLISH DIGITAL AUDIO OUTPUT AUDIO LANGUAGE ENGLISH DOWN MIX SUBTITLE...
  • Page 49 PREFERENCE1 MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE ON SCREEN GUIDE MONITOR TYPE PROGRESSIVE MODE SELECT Selected language PREFERENCE1 MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE ON SCREEN GUIDE MONITOR TYPE PROGRESSIVE MODE SELECT Selected language ENGLISH ESPAÑOL (Spanish) (Chinese) English ON SCREEN LANGUAGE...
  • Page 50: Subtitle Off

    PREFERENCE1 PREFERENCE2 MENU LANGUAGE ENGLISH AUDIO LANGUAGE ENGLISH SUBTITLE ENGLISH ON SCREEN LANGUAGE ON SCREEN GUIDE MONITOR TYPE 4:3 LB PROGRESSIVE MODE AUTO SELECT PREFERENCE1 PREFERENCE2 DIGITAL AUDIO OUTPUT STREAM/PCM DOWN MIX Lo/Ro COMPRESSION AUTO STANDBY SCREEN SAVER MODE 1 AV COMPULINK MODE DVD 1 SELECT...
  • Page 51 DOWN MIX COMPRESSION PREFERENCE1 PREFERENCE2 DIGITAL AUDIO OUTPUT STREAM/PCM DOWN MIX Lo/Ro COMPRESSION AUTO STANDBY MODE 1 SCREEN SAVER AV COMPULINK MODE DVD1 SELECT PREFERENCE1 PREFERENCE2 DIGITAL AUDIO OUTPUT STREAM/PCM DOWN MIX Lo/Ro COMPRESSION AUTO STANDBY SCREEN SAVER MODE 1 AV COMPULINK MODE DVD 1 SELECT...
  • Page 52 PREFERENCE1 PREFERENCE2 DIGITAL AUDIO OUTPUT STREAM/PCM DOWN MIX Lo/Ro COMPRESSION AUTO STANDBY MODE 1 SCREEN SAVER AV COMPULINK MODE DVD1 SELECT PREFERENCE1 PREFERENCE2 DIGITAL AUDIO OUTPUT STREAM/PCM DOWN MIX Lo/Ro COMPRESSION AUTO STANDBY SCREEN SAVER MODE 1 AV COMPULINK MODE DVD1 SELECT ¦...
  • Page 53 PARENTAL LOCK Country Code LEVEL 1 Set Level – – – – PASSWORD EXIT PRESS ENTER NONE LEVEL 1 • • • LEVEL 8 PARENTAL LOCK Country Code LEVEL 1 Set Level – – – – PASSWORD EXIT NEW PASSWORD? • • • PRESS 0~9 KEY STANDBY/ON OPEN /CLOSE...
  • Page 54 5 ° STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO DIGEST ZOOM SELECT ENTER ∞ RM-SXVM50J REMOTE CONTROL URSOR 5/° to move then PARENTAL LOCK This DISC can’t play now! Temporary Level Change ? PASSWORD PRESS ENTER 5 °...
  • Page 55 NOTE To AV COMPU LINK (II or EX) DVD player To AV COMPU LINK (II or EX) To AV COMPU LINK DVD player VCR (Video Cassette Recorder) To AV COMPU LINK (II or EX) Receiver DVD player...
  • Page 56 Notes for connection...
  • Page 58 Troubleshooting...
  • Page 62 VICTOR COMPANY OF JAPAN, LIMITED 0601AOMDTEJSC...
