Introduction

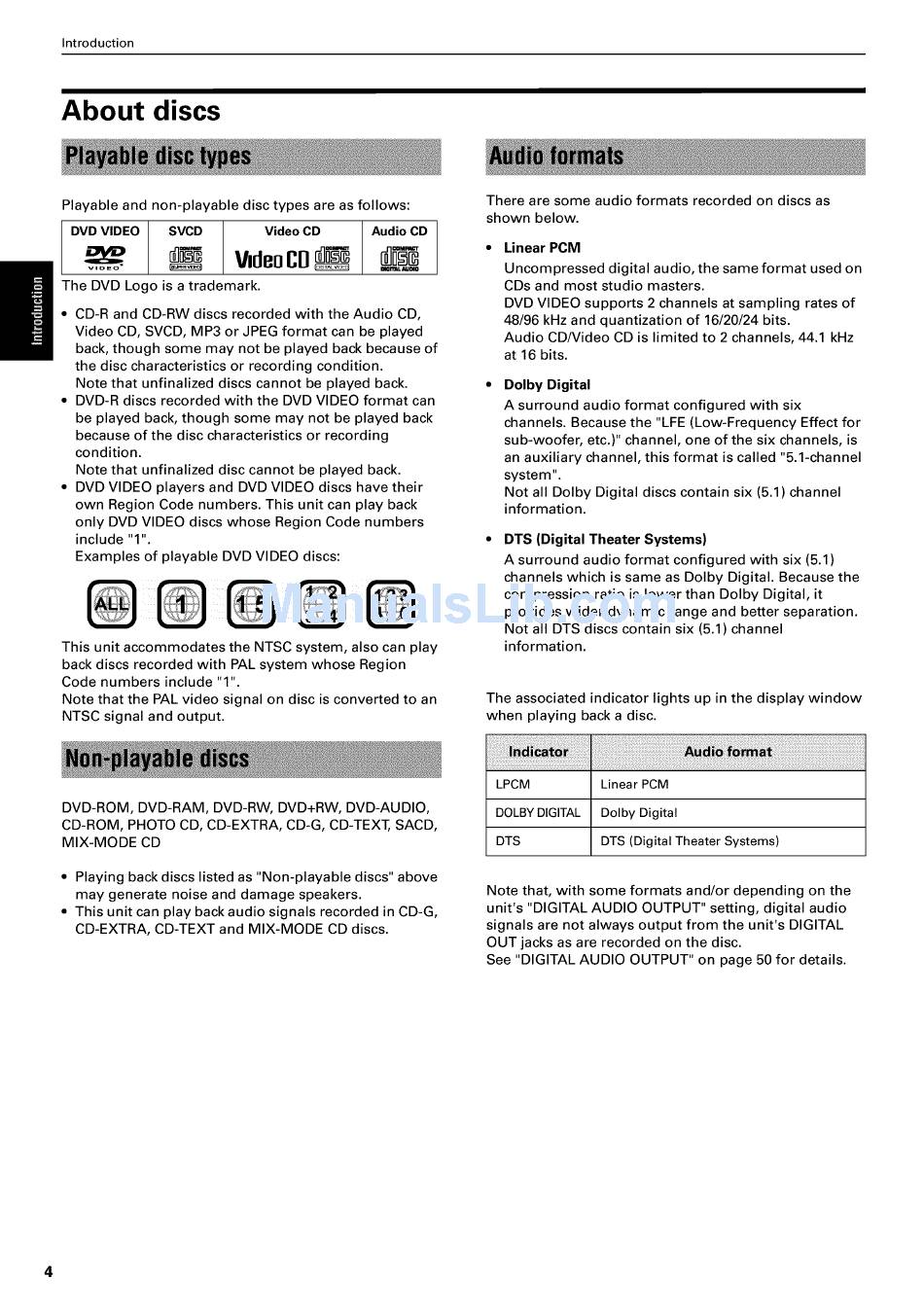

About discs
Playable and non-playable
disc types are as follows:
DVD VIDEO
SVCD
Video CD
Audio CD
VIdeoCD
The DVD Logo is a trademark.
• CD-R and CD-RW discs recorded with the Audio
CD,
Video CD, SVCD, MP3 or JPEG format can be played
back, though
some may not be played back because of
the disc characteristics
or recording
condition.
Note that unfinalized
discs cannot be played back.
• DVD-R discs recorded
with the DVD VIDEO format can
be played back, though
some may not be played back
because of the disc characteristics
or recording
condition.
Note that unfinalized
disc cannot be played back.
• DVD VIDEO players and DVD VIDEO discs have their
own Region Code numbers.
This unit can play back
only DVD VIDEO discs whose Region Code numbers
include
"1".
Examples
of playable
DVD VIDEO discs:
This unit accommodates
the NTSC system, also can play
back discs recorded
with PAL system whose Region
Code numbers
include "1".
Note that the PAL video signal on disc is converted
to an
NTSC signal and output.
There are some audio formats
recorded
on discs as
shown below.
Linear PCM
Uncompressed digital audio, the same format
used on
CDs and most studio masters.
DVD VIDEO supports 2 channels at sampling rates of
48/96 kHz and quantization of 16/20/24 bits.
Audio CD/Video CD is limited to 2 channels, 44.1 kHz
at 16 bits.
Dolby Digital
A surround
audio format
configured
with six
channels.
Because the "LFE (Low-Frequency
Effect for
sub-woofer,
etc.)" channel, one of the six channels,
is
an auxiliary
channel, this format
is called "5.1-channel
system".
Not all Dolby Digital discs contain six (5.1) channel
information.
DTS (Digital Theater Systems)
A surround
audio format
configured
with six (5.1)
channels which is same as Dolby Digital.
Because the
compression
ratio is lower than Dolby Digital, it
provides wider dynamic
range and better separation.
Not all DTS discs contain six (5.1) channel
information.
The associated
indicator
lights up in the display window
when playing
back a disc.
DVD-ROM, DVD-RAM,
DVD-RW, DVD+RW, DVD-AUDIO,
CD-ROM, PHOTO CD, CD-EXTRA, CD-G, CD-TEXT, SACD,
MIX-MODE
CD
• Playing back discs listed as "Non-playable
discs" above
may generate
noise and damage speakers.
• This unit can play back audio signals recorded
in CD-G,
CD-EXTRA, CD-TEXT and MIX-MODE
CD discs.
LPCM
Linear PCM
DOLBY DIGITAL
Dolby Digital
DTS
DTS (Digital Theater Systems)
Note that, with some formats
and/or depending
on the
unit's "DIGITAL AUDIO OUTPUT" setting, digital audio
signals are not always output
from the unit's DIGITAL
OUT jacks as are recorded
on the disc.
See "DIGITAL AUDIO OUTPUT" on page 50 for details.
4
