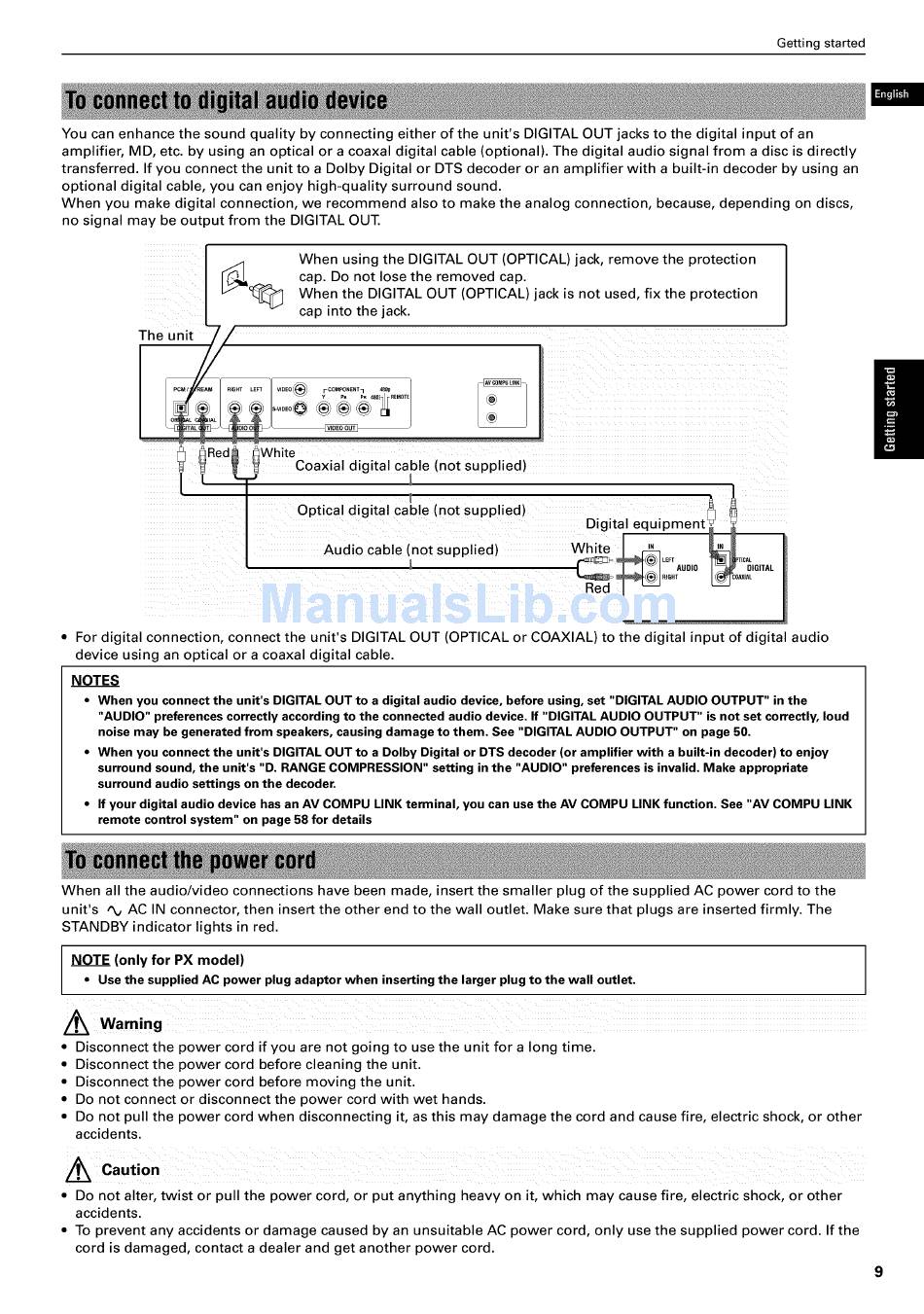

Getting started
You can enhance the sound quality by connecting either of the unit's DIGITAL OUT jacks to the digital input of an
amplifier, MD, etc. by using an optical or a coaxal digital cable (optional). The digital audio signal from a disc is directly
transferred. If you connect the unit to a Dolby Digital or DTS decoder or an amplifier with a built-in decoder by using an
optional digital cable, you can enjoy high-quality surround sound.
When you make digital connection, we recommend also to make the analog connection, because, depending on discs,
no signal may be output from the DIGITAL OUT.
When using the DIGITAL OUT (OPTICAL)jack, remove the protection
[_J,I cap. Do not lose the removed cap.
I L_--_>_ When the DIGITAL OUT (OPTICAL) jack is not used, fix the protection
L v cap into the jack.
Thee/
Optical digital cable (not supplied)
Audio cable (not supplied)
Digitalequipment! !
White _LEF_
,00,0 i 0o ,0,
"edl-- I
• For digital connection, connect the unit's DIGITAL OUT (OPTICAL or COAXIAL) to the digital input of digital audio
device using an optical or a coaxal digital cable.
NOTES
• When you connect the unit's DIGITALOUT to a digital audio device, before using, set "DIGITAL AUDIO OUTPUT" in the
"AUDIO" preferencescorrectly accordingto the connected audio device. If "DIGITAL AUDIO OUTPUT" is not set correctly, loud
noise may be generated from speakers, causingdamage to them. See "DIGITAL AUDIO OUTPUT" on page 50.
• When you connect the unit's DIGITALOUT to a Dolby Digital or DTS decoder (or amplifier with a built-in decoder) to enjoy
surround sound,the unit's "D. RANGE COMPRESSION" setting in the "AUDIO" preferencesis invalid. Make appropriate
surround audio settings on the decoder.
• If your digital audio device has an AV COMPU LINK terminal, you can use the AV COMPU LINKfunction. See "AV COMPU LINK
remote control
system" on
page 58 for details
When all the audio/video connections have been made, insert the smaller plug of the supplied AC power cord to the
unit's _ AC IN connector, then insert the other end to the wall outlet. Make sure that plugs are inserted firmly. The
STANDBY indicator lights in red.
NOTE (only for PX model)
• Use the supplied AC power plug adaptor when inserting the larger plug to the wall outlet.
/_ Waming
• Disconnect the power cord if you are not going to use the unit for a long time.
• Disconnect the power cord before cleaning the unit.
• Disconnect the power cord before moving the unit.
• Do not connect or disconnect the power cord with wet hands.
• Do not pull the power cord when disconnecting it, as this may damage the cord and cause fire, electric shock, or other
accidents.
Caution
• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other
accidents.
• To prevent any accidents or damage caused by an unsuitable AC power cord, only use the supplied power cord. If the
cord is damaged, contact a dealer and get another power cord.
9
