For Oracle Video Server Manager, the target service is the Oracle Video Server
(which resides on the Application Server) and its connected clients, as well as the
Oracle database.

Video Server Manager Communication Paths

This section describes how Video Server Manager (VSM) communicates with the
Oracle Video Server (OVS). The numbered steps in this section refer to the
communication path segments illustrated in
1.
2.
3.
4.

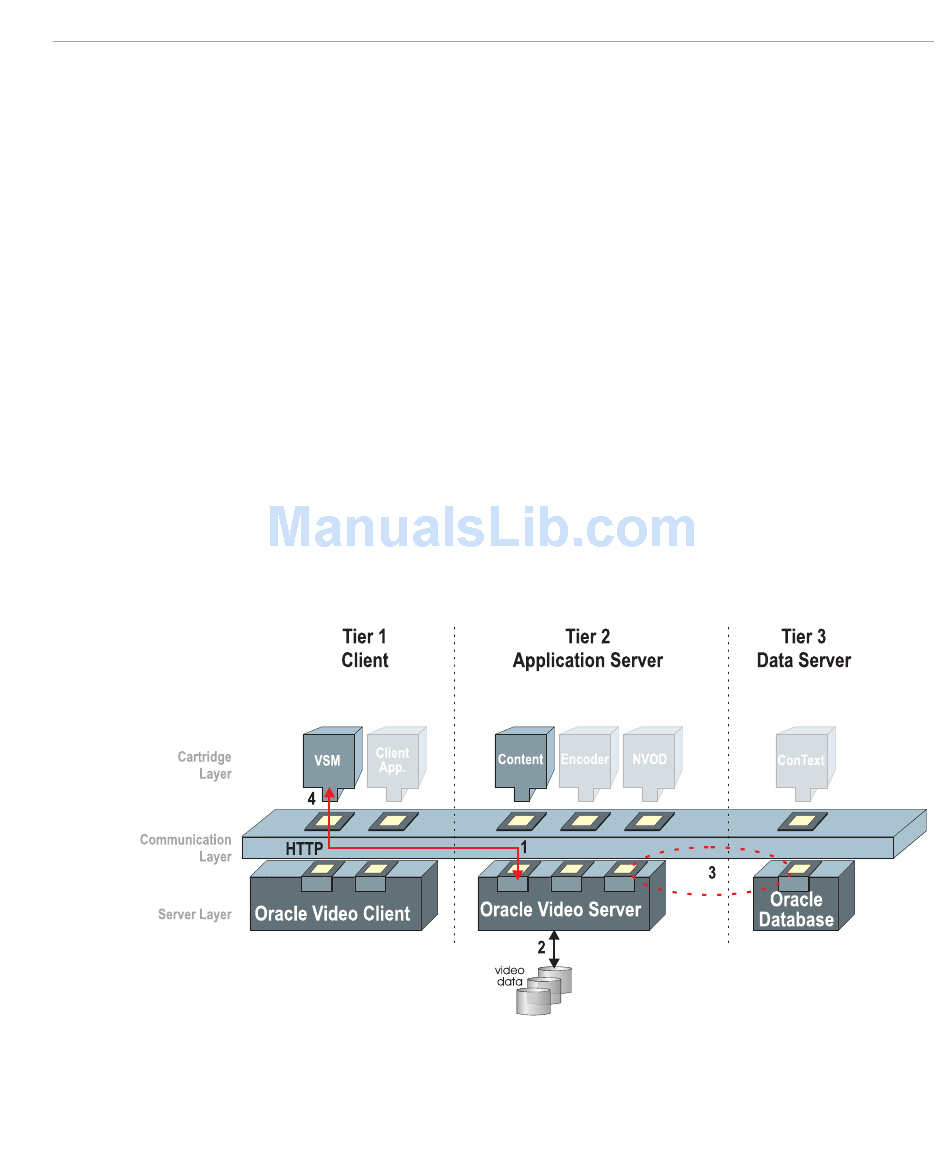

Figure 1–2 VSM Communication Paths
The user makes an HTTP request from VSM to OVS.
OVS collects the requested data or executes the requested command,
communicating with the Oracle Media Data Store (MDS) or database as
necessary.
OVS communicates with the Oracle database to resolve logical content
references.
OVS returns the data to VSM, displaying the requested information, or
indicates that the requested operation was performed.
Video Server Manager Communication Paths
Figure 1–2.
Overview 1-5
