CONTROL SURFACE

The Control Modules

The System 5 surface is modular and can include 6 different
modules (see opposite page) :
• CM401-T Master Control Module (1ft wide, 305mm)
• CM402-T Sub-Master Control Module (1ft wide, 305mm)
• CM403-F/J Film Module (1ft wide, 305mm)
• CM408-T 8-Fader Channel Strip Module (1ft wide, 305mm)
• CM409-F Blank Module (1ft wide, 305mm)
• Producer's Desk - Flat worksurface with provision for built-in
high-res 23" TFT screen (2ft wide, 610mm)
System 5 Frame
The System 5 Frame comes in three standard sizes.*
Frame Height
6 modules 39.5" (1 m)
9 modules 39.5" (1 m)
12 modules 39.5" (1 m)
* Custom Frame sizes are available.
Two frames are available - the traditional System 5 frame
shown opposite, or a more compact frame this is lighter and
more cost effective.
The main console modules connect to the equipment rack via
Ethernet cables for extremely simple hookup, allowing the sur-
face to be placed long distances from the rack. The CM401-T
Master Control Module also includes talkback wiring.
6
Producer's Desk
Width Depth
6'10" (2.08m) 41" (1.04m)
9'10" (3m) 41" (1.04m)
12'10" (3.9m) 41" (1.04m)
System 5 Digital Audio Mixing System - InDepth

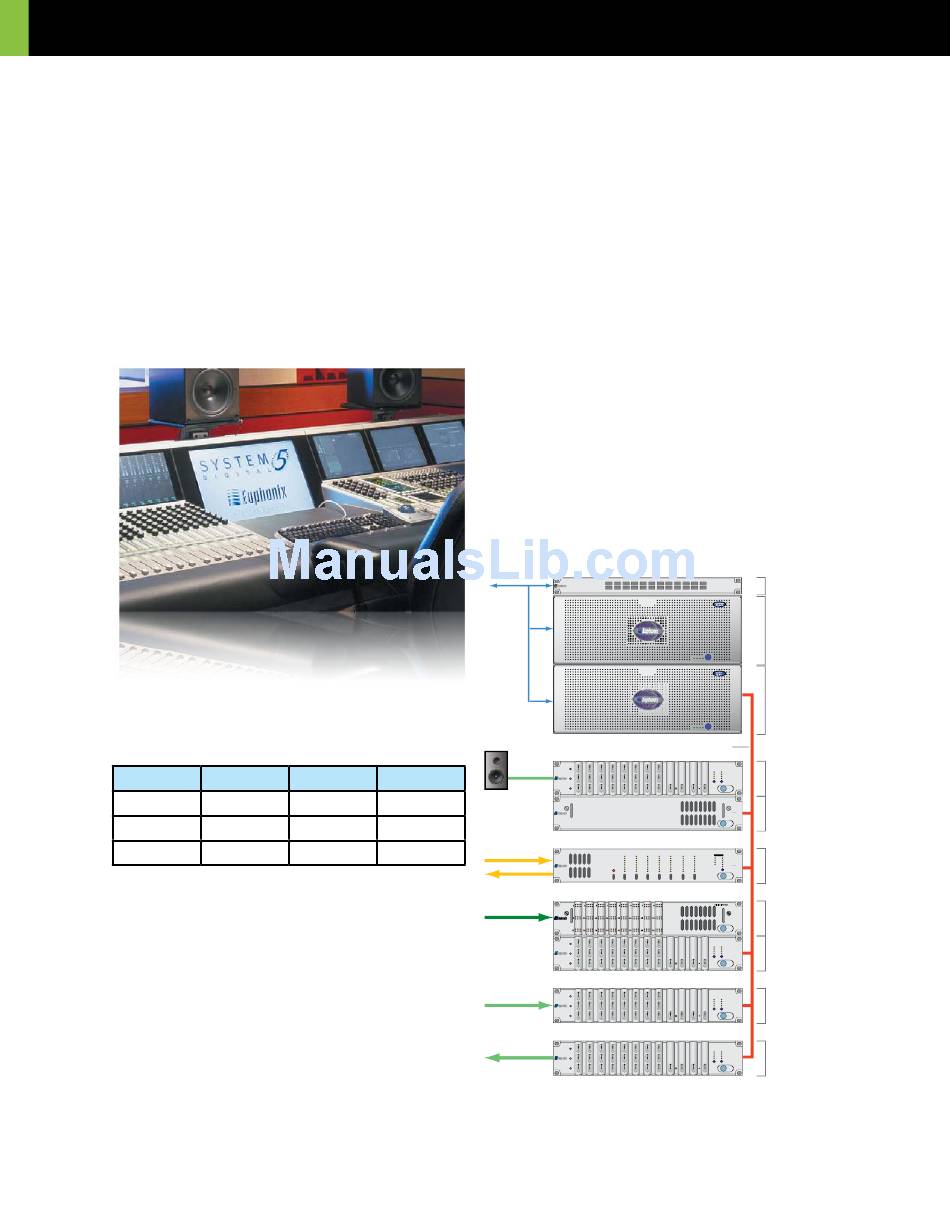

Typical Equipment Rack

The rack below shows a typical System 5 system equipment
rack. Further details about the converters may be found later in
the guide. As the system is modular, additional converters may
be added at any time in the future to allow the system to grow
to match production needs and to match the digital/analog ratio
of sources and destinations.
The typical system shown below has the following I/O
totals:
• 24 Mic Sources
• 26 Analog Line Sources
• 26 Analog Destinations
• 56 Digital Destinations (28 AES/EBU pairs)
• 56 Digital Sources (28 AES/EBU Pairs)
• 4 to 24 MADI I/O (4 per DSP Card)
Ethernet
EuCon to
Surface
Trim
1-8 1 2 3 4 5 6 7 8
9-16 9 10 11 12 13 14 15 16
17-24 17 18 19 20 21 22 23 24
Monitors
FORMAT A
CH 1-8 CH 9-16 CH 17-24 CH 25-32
MADI MADI MADI MADI
SDIF-2 SDIF-2 SDIF-2 SDIF-2
PRODIGI PRODIGI PRODIGI PRODIGI
TDIF TDIF TDIF TDIF
ADAT ADAT ADAT ADAT
PROTOOLS PROTOOLS PROTOOLS PROTOOLS
SRC ENABLE
AES AES AES AES
SRC SRC SRC SRC
ON (STD) 16 16 16 16 16 16 16 16
20 20 20 20 20
OFF 20 20 20
ON-ALT 24 24 24 24 24 24 24 24
56 Digital OUTPUT BIT OUTPUT BIT OUTPUT BIT OUTPUT BIT
MADI DEPTH DEPTH DEPTH DEPTH
In and Out
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
24 Mics
17 18 19 20 21 22 23 24
Trim
1-8 1 2 3 4 5 6 7 8
9-16 9 10 11 12 13 14 15 16
17-24 17 18 19 20 21 22 23 24
Trim
1 2 3 4 5 6 7 8
1-8
9-16 9 10 11 12 13 14 15 16
26 Analog
17-24 17 18 19 20 21 22 23 24
In
Trim
1-8 1 2 3 4 5 6 7 8
9-16 9 10 11 12 13 14 15 16
26 Analog
17-24 17 18 19 20 21 22 23 24
Out
Ethernet
Switch
SC263
Studio
Computer
DF66 DSP
SuperCore
Up to 6
SP662 DSP
Cards
MADI
MA703
DAC
96 AES
48 WORD
44.1 INTERNAL
CUSTOM AUTO
Monitors
A1 A2 D1 SR D2
TRIM
CONV
MC524
MONITOR-COMMS INTERFACE
Monitor
MC
524
Controller
FC726
FORMAT CONVERTER
CH 33-40 CH 41-48 CH 49-56
FORMAT B
MADI MADI MADI
AES
SDIF-2 SDIF-2 SDIF-2 96
Digital I/O
PRODIGI PRODIGI PRODIGI 48 WORD
TDIF TDIF TDIF 44.1 MADI
ADAT ADAT ADAT CUSTOM FORMAT A FC
726
AUTO
PROTOOLS PROTOOLS PROTOOLS
AES AES AES
SRC SRC SRC
1-56
16 16 16 16 16 16
20 20 20
20 20 20
24 24 24 24 24 24
OUTPUT BIT OUTPUT BIT OUTPUT BIT
DEPTH DEPTH DEPTH
ML530
MIC LINE INTERFACE
Mic Pre
1-24
AM713
96 AES
48 WORD
ADC
44.1 INTERNAL
CUSTOM AUTO
Mic Pre
A1 TRIM A2 D1 SR D2
CONV
AM713
96 AES ADC
48 WORD
44.1 INTERNAL
CUSTOM AUTO
1-26
A1 TRIM A2 D1 SR D2
CONV
MA703
DAC
96 AES
48 WORD
44.1 INTERNAL
CUSTOM AUTO
1-26
A1 TRIM A2 D1 SR D2
CONV
