CM403 TFT Display
The TFT screen displays meters and an overview of the monitor
bus assignments. The top half of the screen displays metering.
The lower half of the screen displays 48 mix buses across the
top, the first eight bus sections down the side, and the eight
speaker (main monitor bus) outputs.

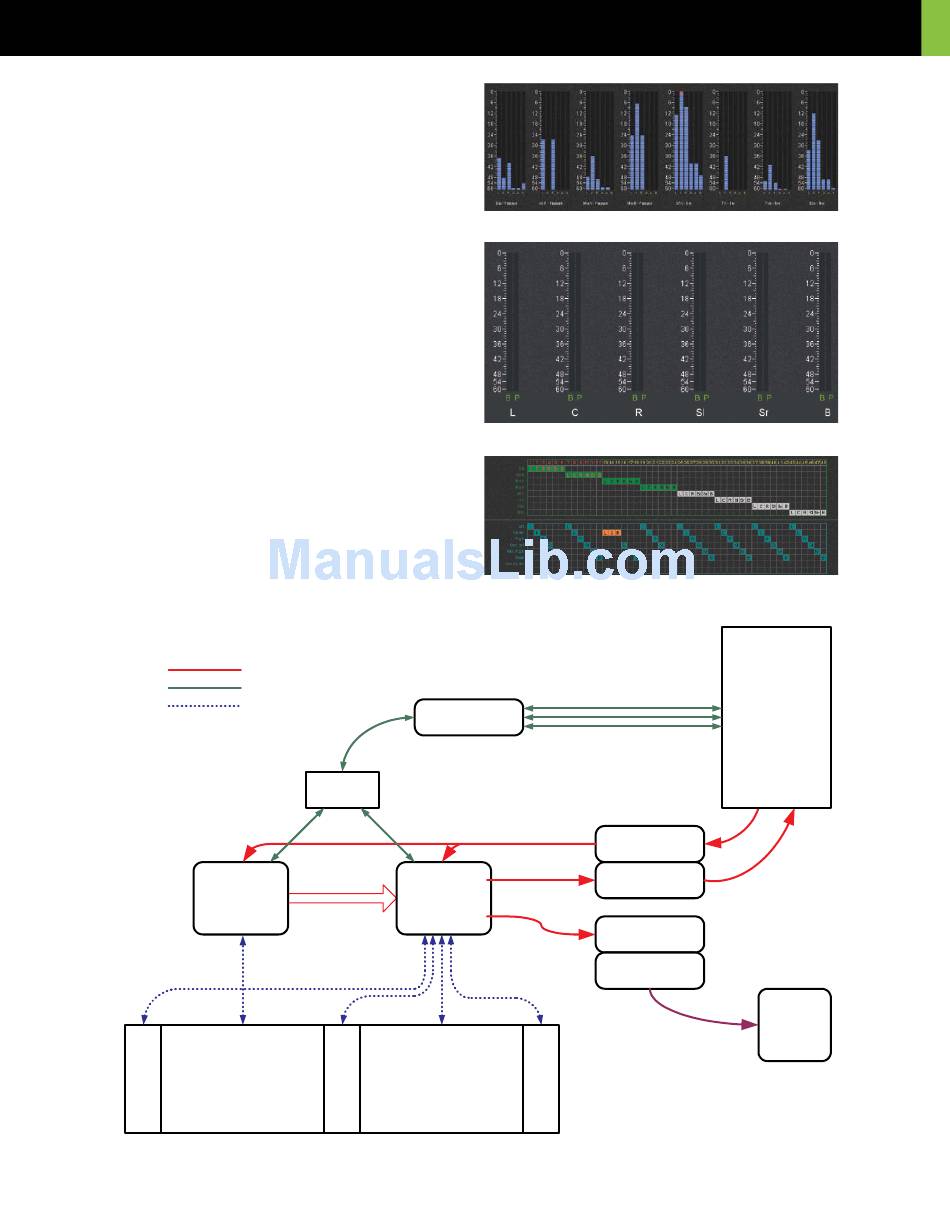

System 5 Multi-Opera-
tor Configuration
In a multi-operator film post environment, the user experiences
a single, large console that allows multiple operators. In real-
ity, each section is a unique System 5 console, which allows a
maximum number of channels per operator. The Mix and Solo
buses are normally linked across the consoles. Often the Aux
and Group buses are not linked but local to each operator. In a
two-operator system, one console usually handles the FX and
the other Music and Dialog. Only one console, designated the
Master, uses its monitor matrix. Each operator has a Film Post
Panel located in their section. Although positioned near a par-
ticular operator's surface, each panel is connected to the Mas-
ter console network allowing access to the monitor matrix.
MADI
Machine Control
Network
DSP SuperCore
Film
Slave Console
Panel
Third-Party Machine
Control/Syncronizer
(Soundmaster, JSK)
TT002
DSP SuperCore
Bus Cascade
Film
Master Console
Panel
System 5 Digital Audio Mixing System - InDepth
MULTI-OPERATOR CONFIGURATION
Metering display showing all Stems
Metering display showing an expanded Stem
Bus/Track and Monitor Assignments display
Converters
Converters
Converter
Monitor Controller
Film
Panel
Audio Sources
and Recorders
Main
Monitors
