SUB-MASTER MODULE & BUS MASTERS
Master Facilities
Dynamics & EQ

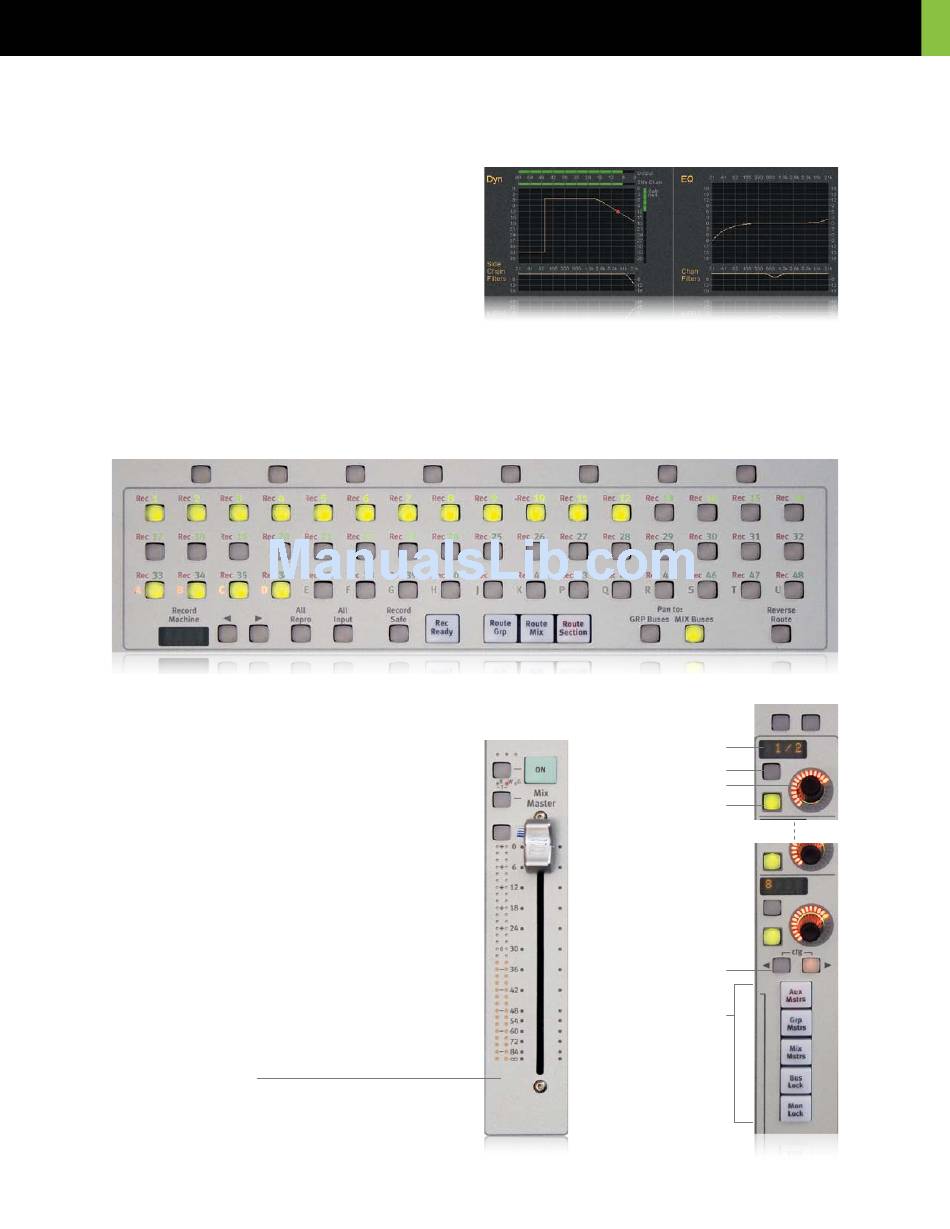

Once a source has been brought to the center, the two sets
of knobs at the bottom of the CM402-T Knobset Panel allow
dedicated control of dynamics (12 left knobs) and EQ (12 right
knobs). Functions are exactly the same as those found in the
strip controls. The CM402-T display includes simultaneous dy-
namics, EQ and filter graphics to show the processor settings.
Upper Knobsets - Aux, Filters & Inputs
At the top of the CM402-T panel are two sets of 8 knobs that can
be switched to control Aux Sends, Filters, and Inputs. The func-
tions available are exactly the same as those found in the strips.
CM402-T 48 Routing Keys
These 48 keys allow group and mix section routing on dedicated
keys.

Bus Masters

Bus Masters
Bus Designation
Mix Section Expand
Bus Masters are controlled from the 8 knobs and function se-
Bus Level
lect switches in the middle of the console. The knobset can be
On/Off
switched between Group, Mix and Aux Bus Masters using the
function select keys at the bottom of the knobset. The page key
allows the 8 knobs to switch between sets of 8 controls (1-8,
9-16 etc.)
Each master has a gain trim and On/Off switch plus an insert.
For a Mix Section this will control the gain of all the buses with-
in the section. For the Mix Masters the upper switch next to Page Keys
each knob switches the knobs to allow On/Off and gain trim for
individual buses within each Section. The user can lock the bus
Bus Master
masters so the point of reference is always the same. Knobset
Function Select

Master Fader

The Master Fader in the middle of the center section controls all
Mix Section output levels. It can also be locked out.
9
