Installing and Configuring the Switch
6. Assemble each of the two inner rails (one on each side of the switch and plenum) using eight
#8-32 x 5/16 Phillips pan-head screws (with attached star lock washers) and eight #8 flat
washers as shown in
CAUTION
lengths can cause damage to internal components of the switch. Be sure to install the flat washers
along with the pan-head screws. Before tightening screws, make sure that the rails are centered to
the overall height of the switch.

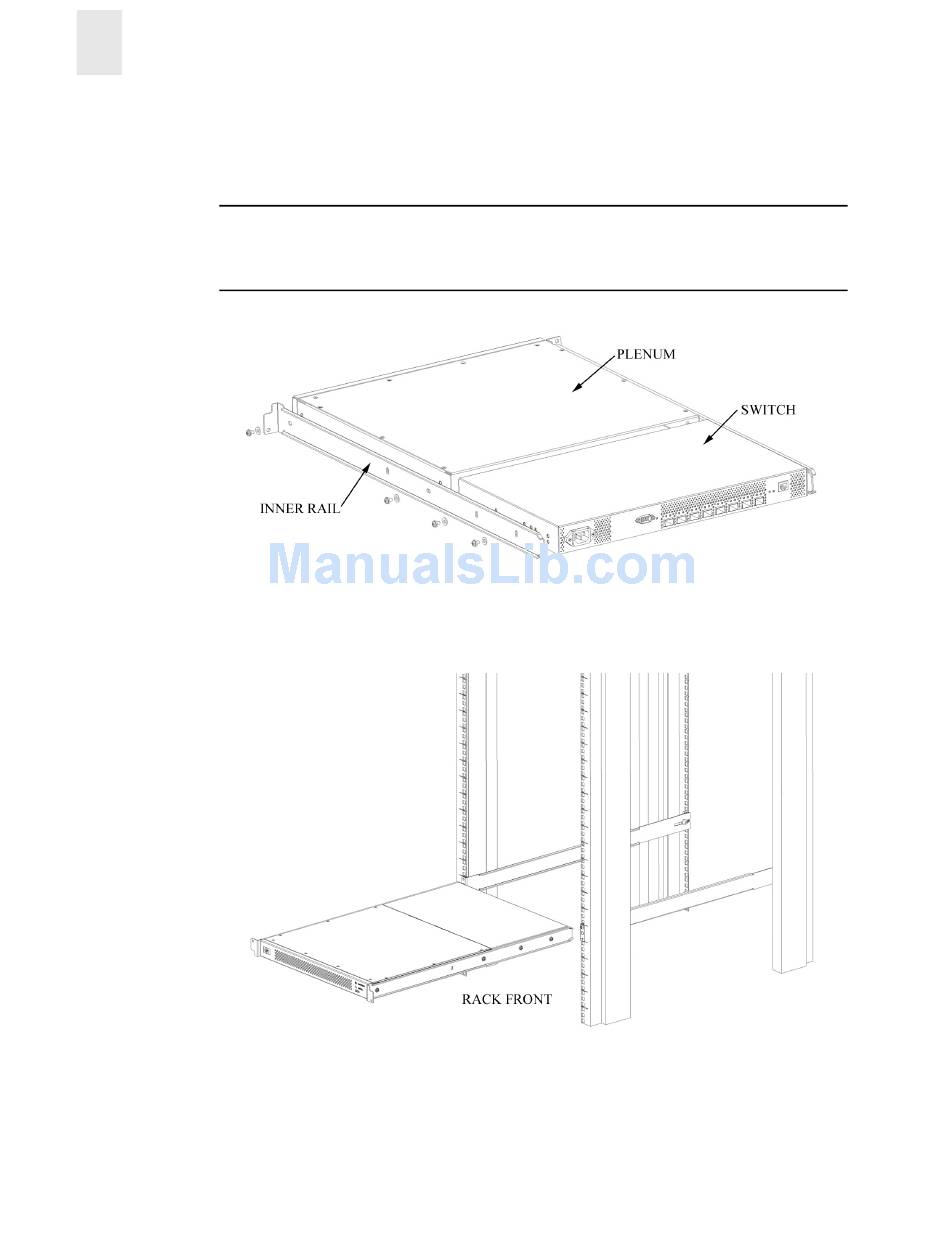

Figure 2-13 Assembling the Inner Rails
7. Insert the switch with the attached inner rails into the outer rails as shown in
Figure 2-14 Installing the Switch into a Compaq/Rittal Rack
2-14
Figure 2-13.
Do not use any other screws other than the eight that are provided. Use of any longer
Figure 2-14.
