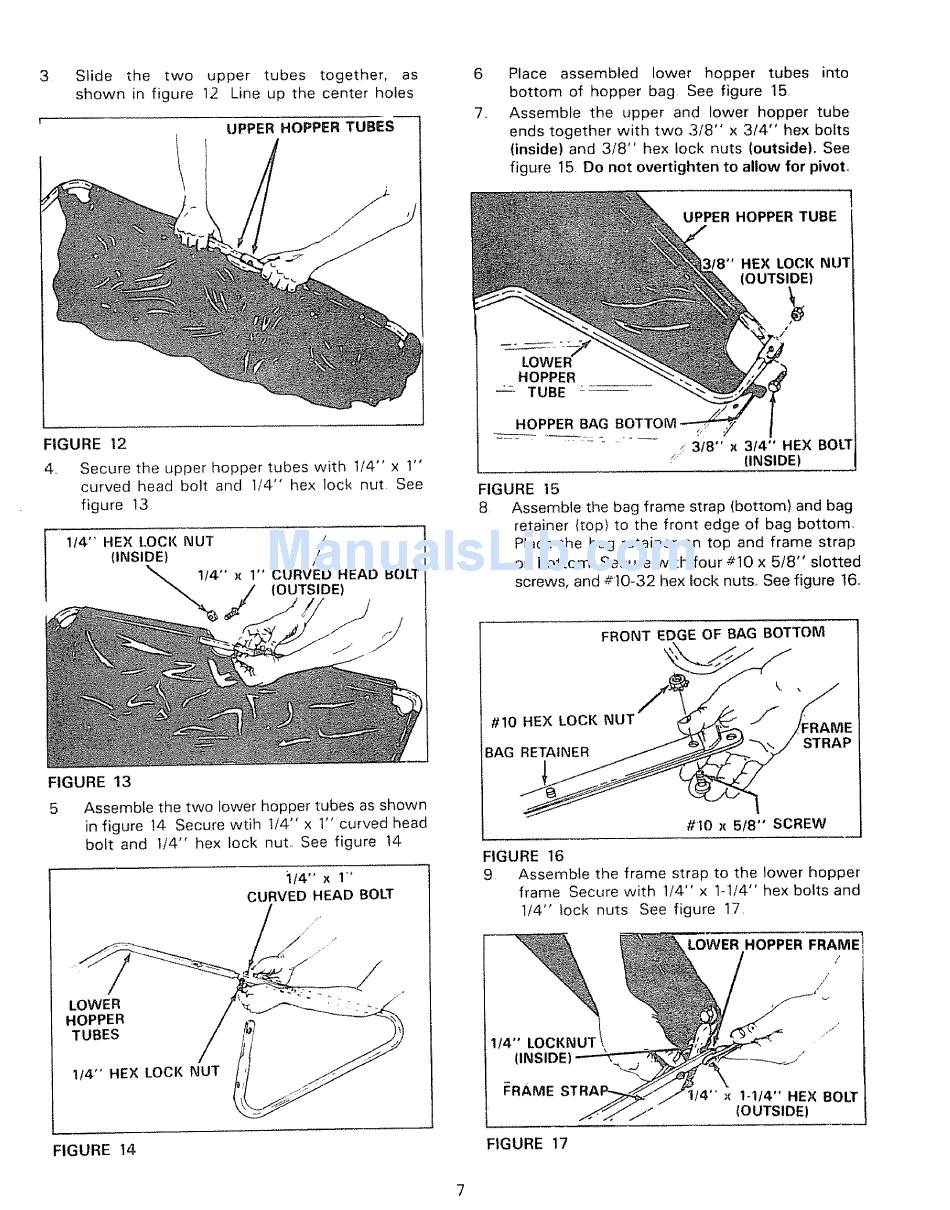

3 Slide the two upper tubes together, as
shown in figure 12 Line up the center holes
UPPER HOPPER TUBES
FIGURE 12
4.. Secure the upper hopper tubes with 1/4" x 1"
curved head bolt and 1/4" hex lock nut. See
figure 13
114'" HEX LOCK NUT /
{INSIDE)
/
"'_\ \_'" x 1" CURVED HEAD BOLT
{OUTSIDE)
FIGURE 13
5 Assemble the two lower hopper tubes as shown
in figure 14 Secure wtih t/4" x 1" curved head
bolt and 1/4" hex lock nut,, See figure 14
114"x 1"
CURVED HEAD BOLT
LOWER
HOPPER
TUBES
114" HEX LOCK NUT
FIGURE 14
6
7o
Place assembled lower hopper tubes into
bottom of hopper bag, See figure 15,
Assemble the upper and lower hopper tube
ends together with two 3/8" x 3/4" hex bolts
(inside) and 3/8" hex lock nuts (outside). See
figure 15, Do not overtighten to allow for pivot°
UPPER HOPPER TUBE
3f8" HEX LOCK NU3
(OUTSIDE)
HOPPER
"- TUBE
HOPPER BAG
._, 3 18" x 3f4" HEX BOL"[
.... ; (INSIDE)
FIGURE 15
8 Assemble the bag frame strap (bottom) and bag
retainer (top) to the front edge of bag bottom,
Place the bag retainer on top and frame strap
on bottom Secure with four #10 x 5/8" slotted
screws, and #10-32 hex lock nuts,, See figure 16.
FRONT EDGE OF BAG BOTTOM
#10 HEX LOCK IE
BAG RETAINER STRAP
#t0 x 518" SCREW
FIGURE 16
9 Assemble the frame strap to the lower hopper
frame Secure with 1/4" x 1-1/4" hex bolts and
1/4" lock nuts See figure 17,
J
i /
1f4
(INSIDE) 1"
LOWER HOPPER FRAME
FRAME I/4'" x 1-1f4" HEX BOLT
(OUTSIDE)
FIGURE 17
7
