Maintenance and Consumables
6.

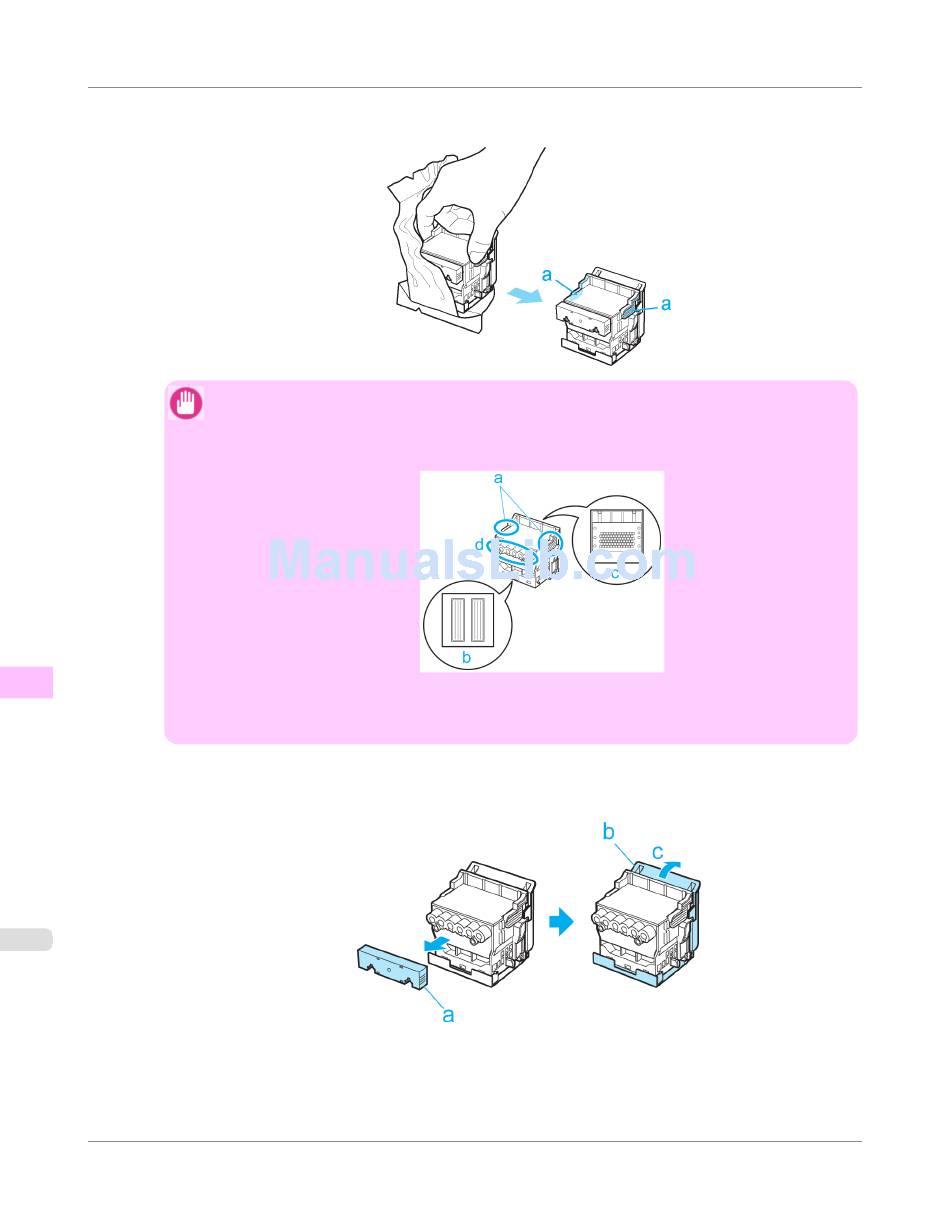

Holding the new Printhead by the grips (a), remove it from the pouch.
10
7.
While firmly holding the Printhead you have removed, use your other hand to remove the orange Protective Part
(a). Squeeze the grips (c) of Protective Part (b) and pull it down to remove it.
746
Replacing the Printhead
> Printheads >
Important
• When handling the Printhead, always hold it by the grips (a). Never touch the nozzles (b) or metal
contacts (c). This may damage the Printhead and affect printing quality.
• Never touch the ink supply section (d). This may cause printing problems.
• If you need to put a Printhead somewhere temporarily before installation, do not keep the nozzles
and metal contacts facing down. If the nozzles or metal contacts are damaged, it may affect the
printing quality.
iPF750
