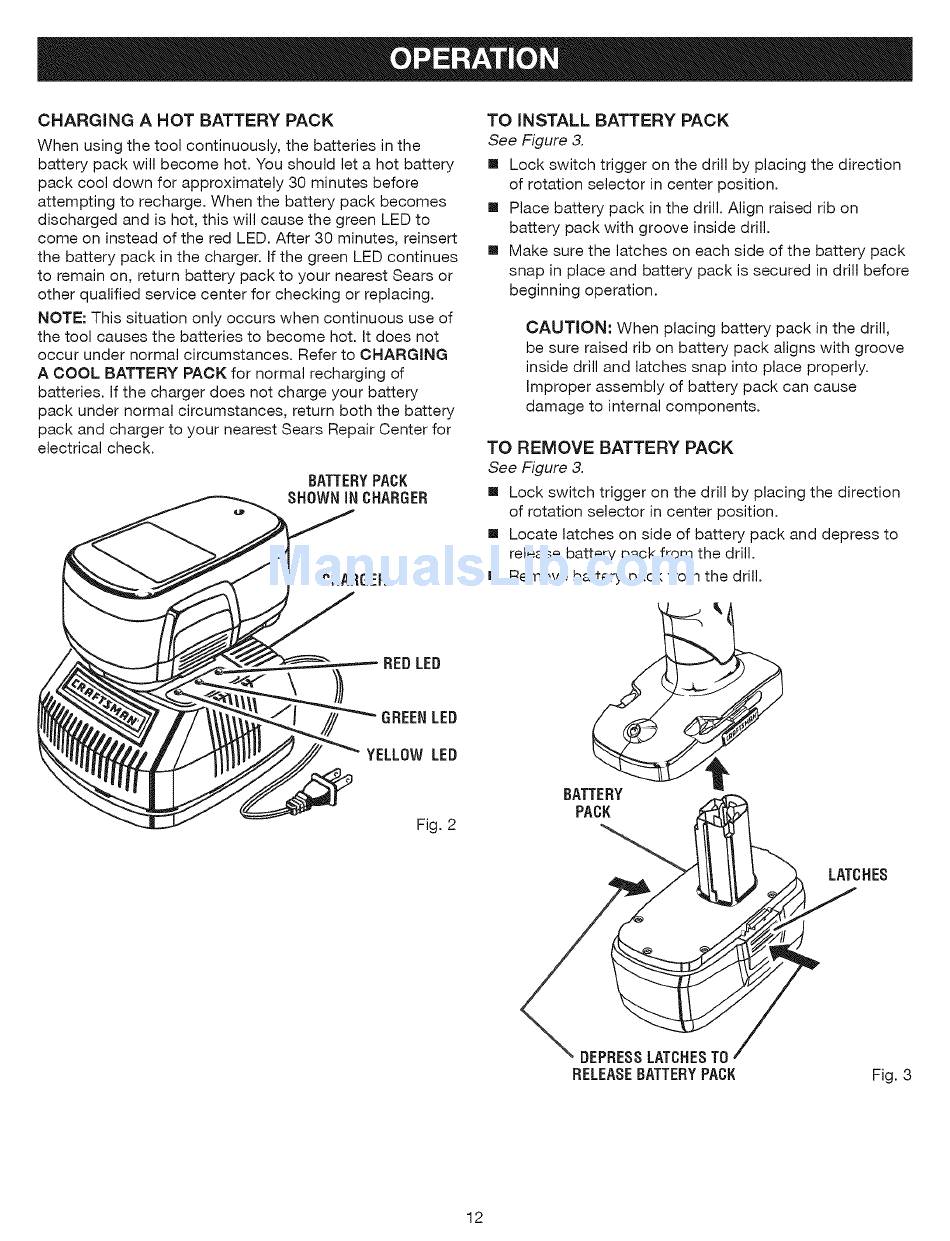

CHARGING
A HOT BATTERY
PACK
When using the tool continuously, the batteries in the
battery pack will become hot. You should let a hot battery
pack cool down for approximately
30 minutes before
attempting to recharge. When the battery pack becomes
discharged and is hot, this will cause the green LED to
come on instead of the red LED. After 30 minutes, reinsert
the battery pack in the charger. If the green LED continues
to remain on, return battery pack to your nearest Sears or
other qualified service center for checking or replacing.
NOTE: This situation only occurs when continuous
use of
the tool causes the batteries to become hot. It does not
occur under normal circumstances.
Refer to CHARGING
A COOL BATTERY PACK for normal recharging of
batteries. If the charger does not charge your battery
pack under normal circumstances,
return both the battery
pack and charger to your nearest Sears Repair Center for
electrical check.
BATTERY PACK
SHOWNIN CHARGER
TO INSTALL
BATTERY
PACK
See Figure 3.
[] Lock switch trigger on the drill by placing the direction
of rotation selector in center position.
[] Place battery pack in the drill. Align raised rib on
battery pack with groove inside drill.
[] Make sure the latches on each side of the battery pack
snap in place and battery pack is secured in drill before
beginning operation.
CAUTION:
When placing battery pack in the drill,
be sure raised rib on battery pack aligns with groove
inside drill and latches snap into place properly.
Improper assembly of battery pack can cause
damage to internal components.
TO REMOVE
BATTERY
PACK
See Figure 3.
[] Lock switch trigger on the drill by placing the direction
of rotation selector in center position.
[] Locate latches on side of battery pack and depress to
release battery pack from the drill.
[] Remove battery pack from the drill.
RED LED
GREENLED
YELLOW LED
Fig. 2
BATTERY
PACK
LATCHES
DEPRESS LATCHES TO
RELEASEBATTERY PACK
Fig. 3
