2. Connect the other end of the RAID SCSI cable to the channel 0 port on the RAID
controller board in the system base unit.
Dual-Channel

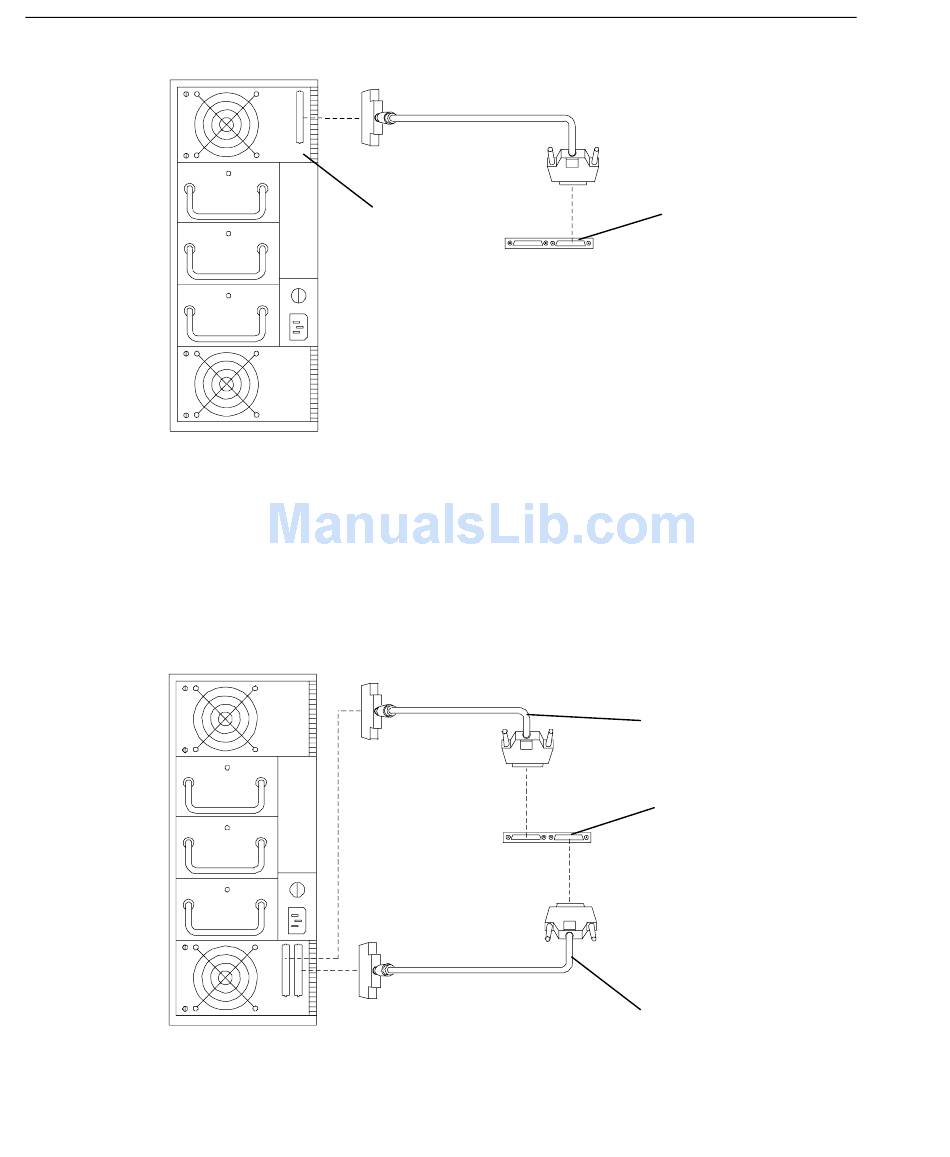

To connect the dual-channel InterRAID-8 cabinet:
1. Connect a RAID SCSI cable to the channel 0 port on the RAID controller in the base
unit, and to the channel 0 port on the InterRAID-8 cabinet.
2. Connect a RAID SCSI cable to the channel 1 port on the RAID controller board in the
base unit, and to the channel 1 port on the InterRAID-8 cabinet.
Channel 0
RAID
Controller
Board in Base
Unit
Channel 1
RAID
Controller
Board in Base
Unit
Channel 0
