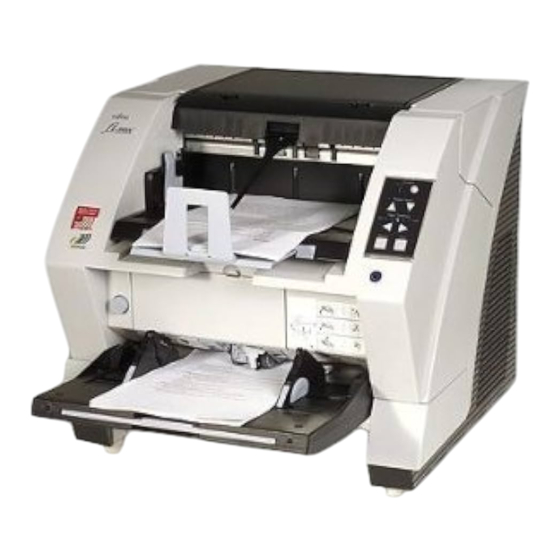

Fujitsu FI-590PRF Operator's Manual

Imprinter option for fi-5900c color image scanner.
Hide thumbs

Advertisement

P3PC-1442-01EN

Advertisement

   Also See for Fujitsu FI-590PRF

   Related Manuals for Fujitsu FI-590PRF

   Summary of Contents for Fujitsu FI-590PRF

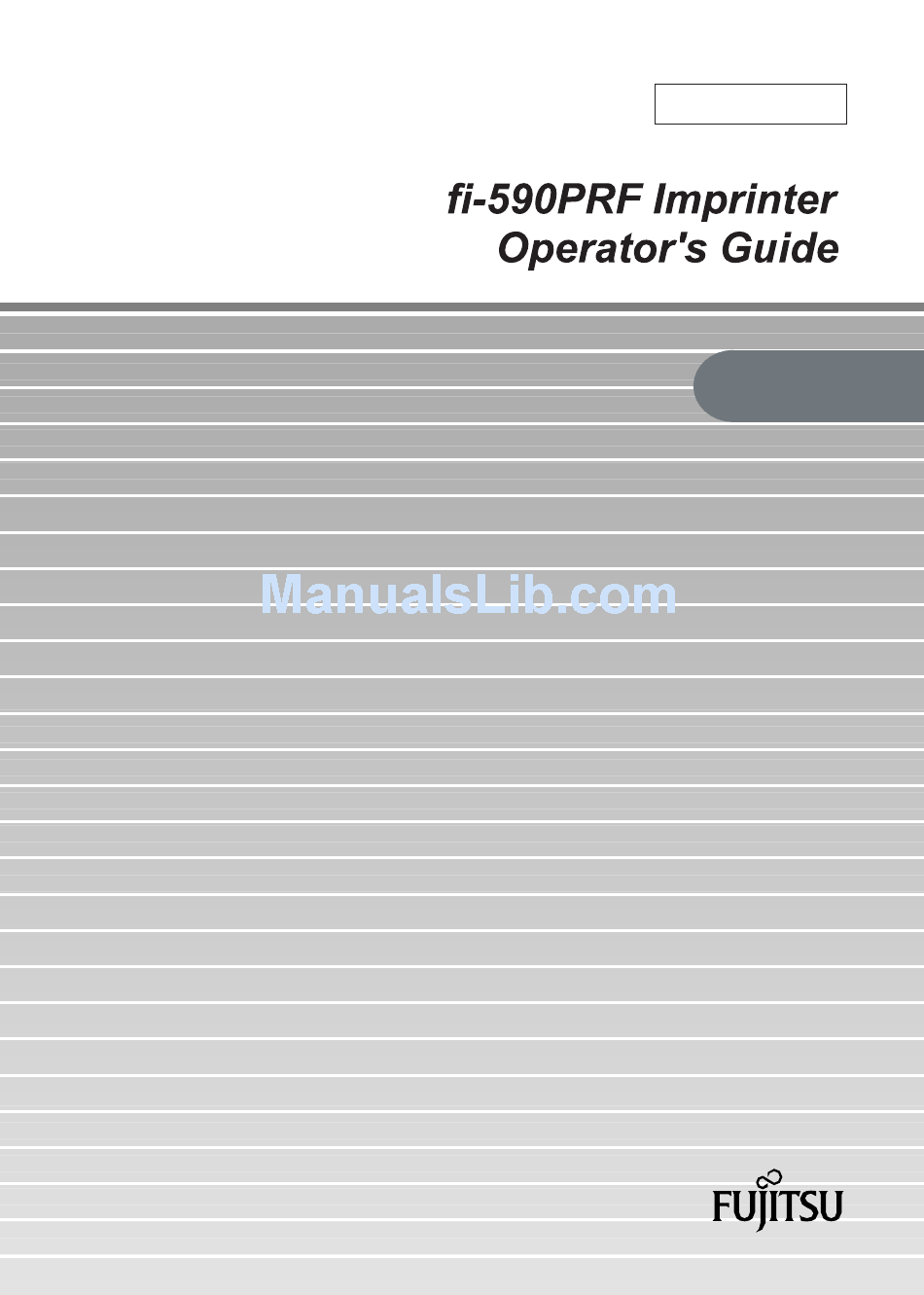

  • Page 1

    P3PC-1442-01EN...

  • Page 2: Table Of Contents

    Contents Introduction..............................1 1. Preparations............................4 1.1 Names of Component Parts ..............................4 2. Basic Operations ............................ 5 2.1 Installing the Print Cartridge ..............................5 2.2 Operating Test..................................6 2.3 Positioning the Print Cartridge ............................7 2.4 How to Use the Paper Guide ..............................8 2.5 Print Setup....................................8 2.6 Replacing the Print Cartridge...............................9 3.

  • Page 3: Introduction

    Introduction Thank you for purchasing the fi-590PRF Imprinter Regulatory Information option for fi-5900C Color Image Scanner. This guide explains how to install and use the imprinter. (For further details about the functions and operations of FCC declaration fi-5900C Image Scanner, refer to the “fi-5900C Image Scanner Operator’s Guide”...

  • Page 4: Symbols Used In This Manual

    The user must not perform repairs on this product. Contact the store where you purchased the scanner or Warning Indications Used In This Manual an authorized FUJITSU Image Scanner service provider to have repairs made on this product. This indication alerts operators to an operation...

  • Page 5: Safety Precautions

    Do not move the scanner with the power and contact the store where you bought the scanner or interface cables connected as this can damage the an authorized FUJITSU scanner service provider. cables, which can later cause fire, electric shock as well as injury.

  • Page 6: Preparations

    1. Preparations 1.1 Names of Component Parts Open the Imprinter cover to see Imprinter (fi-590PRF) which is installed in the scanner (fi-5900C). Imprinter head Imprinter cover <Inside of Imprinter Cover> Print cartridge holder...

  • Page 7: Basic Operations

    2. Basic Operations Open the imprinter cover. 2.1 Installing the Print Cartridge Mount the print cartridge as follows: Imprinter cover When installing or replacing the print cartridge, be ATTENTION careful not to insert it out of place. Confirm that the scanner is turned off. Hold the blue part located on the center of the hopper.

  • Page 8: Operating Test

    Remove protection tape from the print cartridge. 2.2 Operating Test After installing the imprinter, test to see if printing can be performed on the Offline Print Test mode. While pressing the [Hopper Height] button ( ) on the operator panel, switch on the scanner. Continue pressing on the [Hopper Height] button.

  • Page 9: Positioning The Print Cartridge

    2.3 Positioning the Print Cartridge HINT Print test patterns To Position the print cartridge for printing: Test pattern 1 (Horizontal): ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`00000000 Open the imprinter cover. Test pattern 2 (Horizontal): abcdefghijklmnopqrstuvwxyz{|}~ 00000000 Imprinter cover Test pattern 3 (Horizontal): !”#$%&'()*+,-./0123456789:;<=>?@00000000 Test pattern 4(Vertical): ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`00000000 Test pattern 5 (Vertical): abcdefghijklmnopqrstuvwxyz{|}~ 00000000...

  • Page 10: How To Use The Paper Guide

    ● Strings definition (Max. 40 characters) ● Counter Setup (column, add/subtract, step) Print cartridge For the details, please refer to “FUJITSU TWAIN Paper Guide 32 Scanner Driver User’s Guide” or “TWAIN Driver Help” To Attach the Paper Guide As shown in the illustration below, place the Paper Guide on the rail ( ), and push the guide's hook to engage it on to the rail ( ).

  • Page 11: Replacing The Print Cartridge

    Turn the blue lever toward left and open the 2.6 Replacing the Print Cartridge cartridge holder. Make sure that you turn off the scanner power and unplug the power cable from the outlet. CAUTION If the cartridge replacement is done with power turned on, it may cause electric shock or imprinter failure.

  • Page 12

    Turn the lever on the print cartridge toward right to fix it. Close the imprinter cover. 10. Reset the Ink Remain Counter. You must reset the Ink Remain Counter whenever you replace the print cartridge. On the [Start] menu, select [Programs]-[Scanner Utility for Microsoft Windows]-[Software Operation Panel].

  • Page 13: Daily Care

    3. Daily Care 3.1 Cleaning the Print Cartridge 3.2 Cleaning the Imprinter Poor quality prints can occur due to blocked ink emission As the fi-590PRF prints the number on a document before holes in the nozzle. Leaving the imprinter unused for long reading operation, ink can spatter over the glass and paper periods can also cause emission holes to become blocked.

  • Page 14

    The cover is slowly opened. Reinstall the print cartridge. Hold the ADF cover with both hands and press it down slowly. Wipe the following parts using a cloth moistened with Cleaner F1 or isopropyl alcohol. Press the ADF cover until it is fixed. For details on cleaning the scanner, refer to HINT “fi-5900C Operator’s Guide”.

  • Page 15: Error Messages

    Description: The imprinter fuse has blown out. How to solve: Contact the store where you purchased the scanner, or contact an authorized FUJITSU scanner service provider. For other errors, refer to “fi-5900C Image Scanner ATTENTION Operator’s Guide” included in fi-5900C Setup CD-ROM.

  • Page 16: Specifications

    5. Specifications Item Specification Printing Method Thermal inkjet printing Print Timing Pre printing (front side) Printing Characters Alphabet : A to Z, a to z Numeric Characters : 0, 1 to9 Symbols : ! ” $ # % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _` { | } ¯ Maximum number of 40 characters (When using 8 digits counter: 43 characters) characters per line...

  • Page 17

    Item Specification Printing area Reference Head movable range Point Unit: mm * The document stains with ink when printing in the shaded areas (shown in the illustration). Therefore, correct printing operations in such areas are not guaranteed. Character position Vertical: ±4mm (at reference position) accuracy Horizontal: ±4mm (at reference position) Ambient condition...
