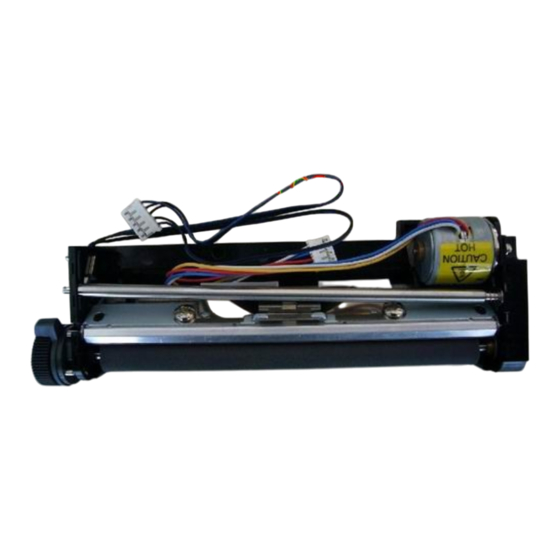

BATTERY DRIVE, FTP-604 Series
4" TYPE MECHANISM AND INTERFACE BOARD
FTP-644MCL001/002/FTP-624DCL/DSL
OVERVIEW
FTP-644MCL/FTP-624DCL/DSL Series is a high speed line
thermal printer driven by battery, printing on 4-inch wide paper
(112 mm/ 114 mm).
The printer is compact and lightweight, and the design allows
easy head maintenance, head cleaning and head replacement.
This printer is suitable for a variety of applications, such as hand
held terminals, POS terminals, ticket machines, coupon
machines, label printers, etc.
HIGHLIGHTS
• High speed printing
It can print at 50 mm/s (400 dotlines/s) maximum by using
Fujitsu
unique head drive control.
Components'
• Compact and lightweight
The printer has a low profile of only 20 mm, and a light weight
of approximately 125 g.
• Low power consumption
The peak current for head drive is only 3.5 A (8.5VDC, 128
dots on).
• Easy head access
It is designed for easy head cleaning and head replacement.
• Paper auto loading function
Thermal paper can be loaded without head-up lever
operation.
• UL recognized
File No. E171434
FTP-644MCL001
FTP-624CU102
FTP-624DCL/DSL002
1
Advertisement
Related Manuals for Fujitsu FTP-644MCL001
Summary of Contents for Fujitsu FTP-644MCL001
- Page 1 FTP-644MCL001 HIGHLIGHTS • High speed printing It can print at 50 mm/s (400 dotlines/s) maximum by using Fujitsu unique head drive control. Components' • Compact and lightweight The printer has a low profile of only 20 mm, and a light weight of approximately 125 g.
-
Page 2: General Specifications
FTP-644MCL001/002/FTP-624DCL/DSL002 DESIGNATION Item Part number Printer mechanism FTP-644MCL001/002* Centronics FTP-624DCL002* Interface Board RS-232C FTP-624DSL002* Micro Controller Unit FTP-624CU102 Thermal head cables FTP-624Y002, FTP-624Y003 Parallel interface cable FTP-441Y201 Cables Serial interface cable FTP-624Y301 Power cable (logic, head and motor) FTP-621Y401, FTP-621Y601 *1: 001 is for front paper insertion (curl path) and 002 is for rear paper insertion (straight path). - Page 3 89(D) 24 (H) mm Weight (Mechanism) approximately 125 g Expected life Mechanism Pulse durability: 1 pulse/dot (using Fujitsu Takamisawa's standard driving method) Wear resistance: 50 km (at 12.5% print ratio) Operating temperature 0 to +50 C* Environmental Operating humidity 20 to 85% RH (no condensation)
- Page 4 FTP-644MCL001/002/FTP-624DCL/DSL002 DIMENSIONS Printer mechanism Unit: mm...
- Page 5 FTP-644MCL001/002/FTP-624DCL/DSL002 Interface board * CN9 on FTP-624DSL only Unit: mm ** CN8, CN11, CN12 not used FUNCTION ITEM ITEM Test printing Motor power save Paper-out detection Mark detection Paper near end detection MCU trouble detection Head-up detection Power on/off sequence protection Abnormal temp.
-
Page 6: Thermal Head
FTP-644MCL001/002/FTP-624DCL/DSL002 CONNECTOR PIN ASSIGNMENT FOR PRINTER MECHANISM 1. Thermal Head Head side 1 : B11B-PH-K-S-2.2 (J.S.T.) or equivalent 2: B10B-PH-K-S-2.2 (J.S.T.) or equivalent Board side 1: PHR-11 (J.S.T.) or equivalent 2: PHR-12 (J.S.T.) or equivalent Connector Thermal Head 1 Connector Thermal Head 2 *1: Symbol: "... - Page 7 Tel: (1-408) 745-4900 Tel: (65) 6375-8560 Fax: (1-408) 745-4970 Fax: (65) 6273-3021 Email: marcom@fcai.fujitsu.com Email: fcal@fcal.fujitsu.com Web: www.fcai.fujitsu.com www.fcal.fujitsu.com © 2004 Fujitsu Components America, Inc. All company and product names are trademarks or registered trademarks of their respective owners. Rev. 11/15/2004.
