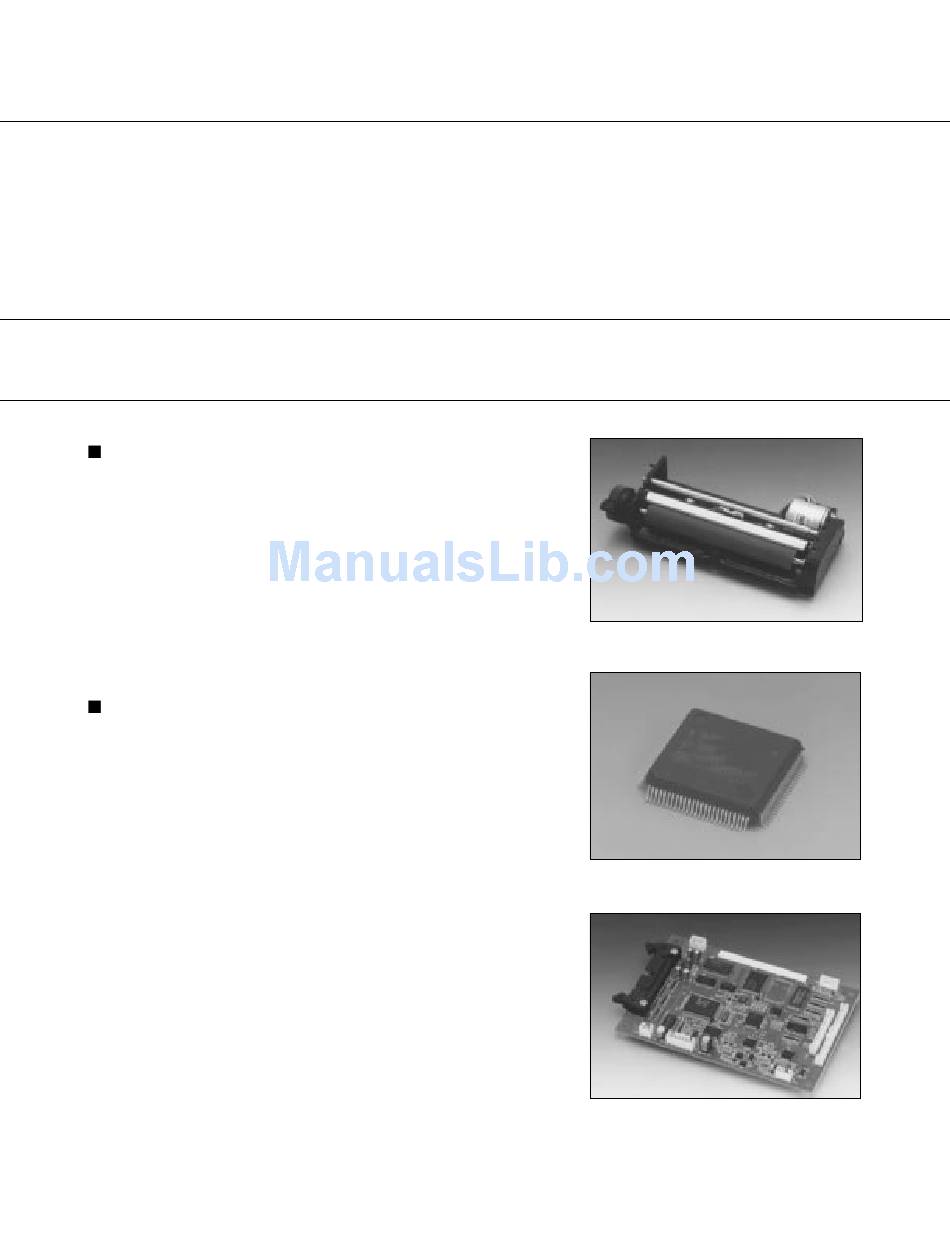

BATTERY DRIVE, FTP-604 Series
3" TYPE MECHANISM AND INTERFACE BOARD
FTP-634MCL001/002/FTP-624DCL/DSL002
OVERVIEW

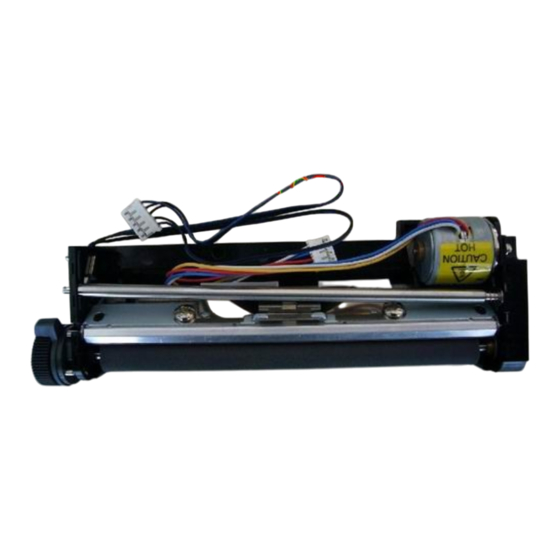

FTP-634MCL/FTP-624DCL/DSL Series is a high speed line
thermal printer driven by battery, printing on 3-inch wide paper
(80 mm/ 85 mm).
The printer is compact and lightweight, and the design allows
easy
head maintenance, head cleaning and head
replacement.
This printer is suitable for a variety of applications, such as
hand held terminals, POS terminals, ticket machines, coupon
machines, label printers, etc.
HIGHLIGHTS
• High speed printing
It can print at 50 mm/s (400 dotlines/s) maximum by using
Fujitsu
unique head drive control.
Components'
• Compact and lightweight
This printer has a low profile of only 20 mm, and a light
weight of approximately 95g.
• Low power consumption
The peak current for head drive is only 3.5 A (8.5 VDC, 128
dots on).
• Easy head access
It is designed for easy head cleaning and head replacement.
• Paper auto loading function
Thermal paper can be loaded without head-up lever
operation.
• UL recognized
File No. E171434
1
FTP-634MCL001
FTP-624CU102
FTP-624DCL/DSL002

Advertisement

   Summary of Contents for Fujitsu FTP-634MCL001

  • Page 1

    HIGHLIGHTS • High speed printing It can print at 50 mm/s (400 dotlines/s) maximum by using Fujitsu unique head drive control. Components' • Compact and lightweight This printer has a low profile of only 20 mm, and a light weight of approximately 95g.

  • Page 2: General Specifications

    FTP-634MCL001/002/FTP-624DCL/DSL002 DESIGNATION Item Part number Printer mechanism FTP-634MCL001/002* Centronics FTP-624DCL002* Interface Board RS-232C FTP-624DSL002* Micro Controller Unit FTP-624CU102 Thermal head cables FTP-624Y002* , FTP-624Y003 Parallel interface cable FTP-441Y201 Cables Serial interface cable FTP-624Y301 Power cables (logic, head and motor) FTP-621Y401, FTP-621Y601 *1: 001 is for front paper insertion (curl path) and 002 is for rear paper insertion (straight path).

  • Page 3

    89(D) 24 (H) mm Weight (Mechanism) approximately 95 g Expected life Mechanism Pulse durability: 1 pulse/dot (using Fujitsu Takamisawa's standard driving method) Wear resistance: 50 km (at 12.5% print ratio) Operating temperature 0 to +50 C* Environmental Operating humidity 20 to 85% RH (no condensation)

  • Page 4

    FTP-634MCL001/002/FTP-624DCL/DSL002 DIMENSIONS Printer mechanism Unit: mm...

  • Page 5

    FTP-634MCL001/002/FTP-624DCL/DSL002 Interface board * CN9 on FTP-624DSL only ** CN8, CN11, CN12 not used Unit: mm...

  • Page 6

    FTP-634MCL001/002/FTP-624DCL/DSL002 CONNECTOR PIN ASSIGNMENT FOR PRINTER MECHANISM 1. Thermal Head Head side 1: B11B-PH-K-S-2.2 (J.S.T.) or equivalent 2: B10B-PH-K-S-2.2 (J.S.T.) or equivalent Board side 1: PHR-11 (J.S.T.) or equivalent 2: PHR-12 (J.S.T.) or equivalent Connector Thermal Head 1 Connector Thermal Head 2 *1: Symbol: "...

  • Page 7

    Tel: (1-408) 745-4900 Tel: (65) 6375-8560 Fax: (1-408) 745-4970 Fax: (65) 6273-3021 Email: marcom@fcai.fujitsu.com Web: www.fcai.fujitsu.com Email: fcal@fcal.fujitsu.com www.fcal.fujitsu.com © 2002 Fujitsu Components America, Inc. All company and product names are trademarks or registered trademarks of their respective owners. Rev. 06/2002...
