24v DRive, FTP-609 SeRieS
ULTRA HiGH SPeeD (200mm/s)
3" TYPe MeCHANiSM (Cutter option)
FTP-639MCL103/383-R
n OveRview
The FTP-609MCL Series thermal printer (driven by 24VDC)
provides ultra-high speed printing (200mm/s) for 2-inch and 3-
inch wide paper.
This series is suitable for a variety of applications, such as POS/
ECR, kiosk terminals, ticket machines, label printers, banking
machines, measuring devices, medical equipment, etc.
n HiGHLiGHTS
• Ultra high speed printing
It can print at 200 mm/s (600 dotlines/s) maximum by using
Fujitsu Components' unique head drive control.
• High resolution
8 dots/mm head provides clear print out.
• eLM (easy Loading Mechanism) with lock type
Fujitsu Components' unique platen release mechanism allows
easy paper setting and easy head maintenance.
• Auto Cutter
Printer with auto cutter (full cut/ partial cut) is available. It can
be mounted on top of the mechanism.
• Multi-featuring diecast frame
By application of multi-featuring diecast frame, continous print
by function of heat-sink, high ESD stand by function of earth
frame and shock/vibration stand by function of solid frame are
valid.
• Compact size
Depth: 40.5mm, width: 82.2mm, height: 20.5mm for the 2-
inch model. The 3-inch model has a width of 04.2mm
• RoHS compliant
FTP-639MCL103/383-R

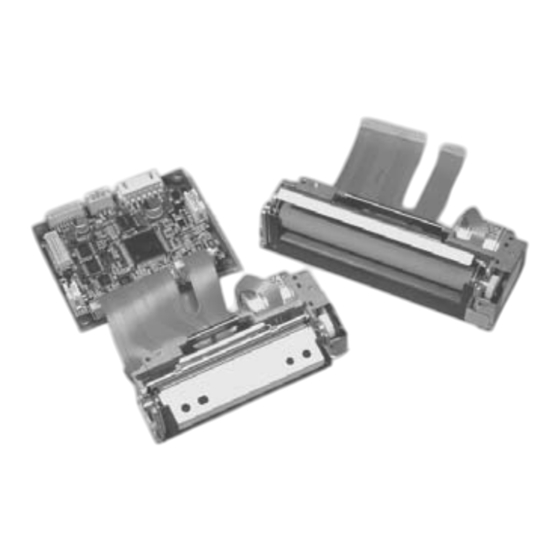

FTP-6x9MCL03R with FTP-629DSL034R
