24v DRive, FTP-609 SeRieS
ULTRA HiGH SPeeD (200mm/s)
2" TYPe MeCHANiSM (Cutter option)
FTP-629MCL054/353/354-R
n OveRview
The FTP-609MCL Series thermal printer (driven by 24VDC)
provides ultra-high speed printing (200mm/s) for 2-inch and 3-
inch wide paper.
This series is suitable for a variety of applications, such as POS/
ECR, kiosk terminals, ticket machines, label printers, banking
machines, measuring devices, medical equipment, etc.
n HiGHLiGHTS
• Ultra high speed printing
It can print at 200 mm/s (600 dotlines/s) maximum by using
Fujitsu Components' unique head drive control.
• Rear paper insertion mechanism with lock type
Fujitsu Components' unique platen release mechanism allows
straight paper path and easy head maintenance.
• Auto Cutter
Printer with auto cutter (full cut/ partial cut) is available. It can
be mounted on top of the mechanism.
• Multi-featuring diecast frame
By application of multi-featuring diecast frame, continous print
by function of heat-sink, high ESD with stand by function of
earth frame and shock/vibration resistance by function of solid
frame are valid.
• Compact size
Depth: 40.5mm, width: 82.2mm, height: 20.5mm for the 2-
inch model. The 3-inch model has a width of 04.2mm
• High resolution
8 dots/mm head provides clear print out.
• RoHS compliant
FTP-629MCL054/353/354-R

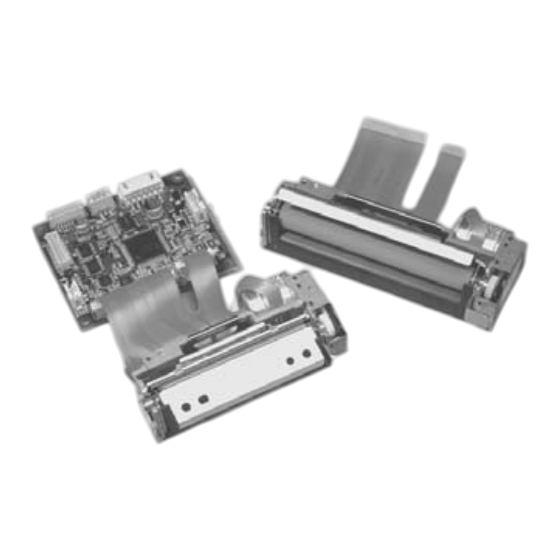

FTP-6x9MCL054R with
FTP-629DSL034R


Advertisement

Table of Contents
loading

  Related Manuals for Fujitsu FTP-629MCL054

  Summary of Contents for Fujitsu FTP-629MCL054

  • Page 1 It can print at 200 mm/s (600 dotlines/s) maximum by using Fujitsu Components' unique head drive control. • Rear paper insertion mechanism with lock type Fujitsu Components' unique platen release mechanism allows straight paper path and easy head maintenance. • Auto Cutter Printer with auto cutter (full cut/ partial cut) is available. It can be mounted on top of the mechanism.
  • Page 2: Part Numbers

    FTP-629MCL054/353/354-R n PART NUMbeRS Name Part Number Printer mechanism Bottom insertion FTP-629MCL054R FTP-629MCL074R FTP-629MCL054R Mechanism with cutter Front insertion FTP-629MCL353R FTP-629MCL353R Bottom insertion FTP-629MCL354R FTP-629MCL374R FTP-629MCL354R FTP-629CU0R FTP-629SR20 FTP-629CU30R Interface board Parallel FTP-629DCL04R FTP-629DSL8R* Serial (RS232C) FTP-629DSL034R FTP-629DSL8R* FTP-629DSL30R FTP-629DSL2R FTP-629DSL30R Thermal head cable extension FTP-629Y00 Interface cable...
  • Page 3 Interface board Approximately 20g (hi speed) Life Head Pulse durability: 00 milion pulse/dot (using Fujitsu Components' standard driving method) Wear resistance: 00 km (at 2.5% print ratio) Cutter 500,000 cuts min. Operating temperature -10˚C to +60°C (Guarantee) 0˚C to +50°C (Guarantee)
  • Page 4 FTP-629MCL054/353/354-R n FUNCTiON ITEM ITEM Test printing Cutter trouble detection Paper-out detection Motor power save Paper near end detection Mark detection Head-up detection MCU trouble detection Abnormal temp. of thermal head detection Power on/off sequence protection Blown fuse detection Motor protection Abnormal voltage detection of head Hardware timer n DiMeNSiONS...
  • Page 5 FTP-629MCL054/353/354-R 2. Printer mechanism with cutter FTP-629MCL353/354-R 23.0 platen release lever center of platen center of paper 34.0 5.5 29.9 (57.5) 25.5 28.5 Notes: .The dimensions tolerance is ±0.5mm unless specified. 2.Dimensions in parenthesis are referene dimensions. 3.s shows the standard center line. Unit: mm...
  • Page 6 FTP-629MCL054/353/354-R n CONNeCTOR PiN ASSiGNMeNT OF PRiNTeR MeCHANiSM (FPC) 1. Thermal head control circuit side Part number : 5260-307 (Molex) or equivalent c t i c t i t s i t s i 2. Motor, Sensor Connector on circuit side : 5260-07 (Molex) or equivalent l i o t i c l i o t i c l i o...
  • Page 7 Fujitsu Components America or its affiliates do not warrant that the content of datasheet is error free. In a continuing effort to improve our products Fujitsu Components America, Inc. or its affiliates reserve the right to change specifications/datasheets without prior notice.
