Connecting to the Network

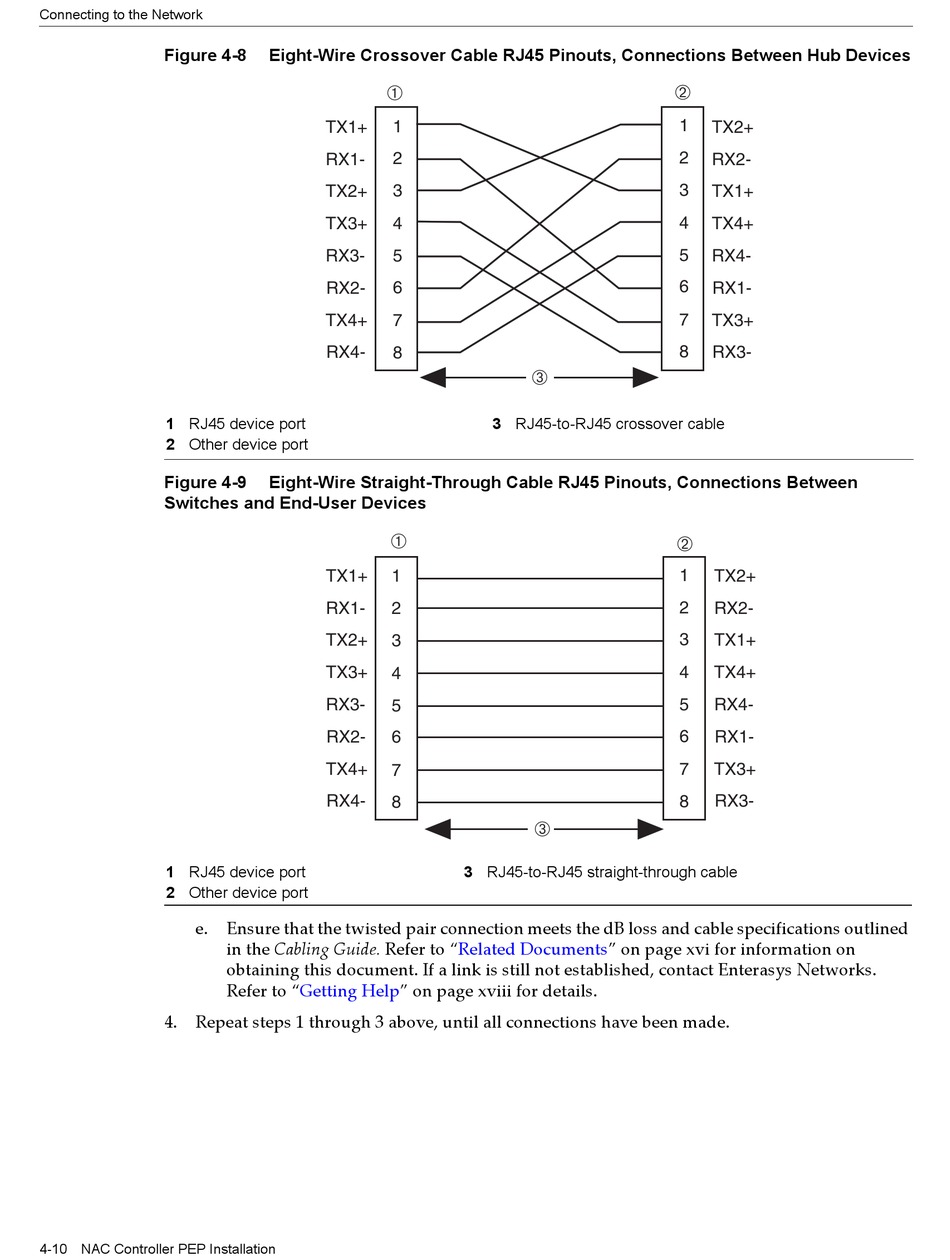

Figure 4-8
1 RJ45 device port
2 Other device port
Figure 4-9
Switches and End-User Devices
1 RJ45 device port
2 Other device port
e.
4. Repeat steps 1 through 3 above, until all connections have been made.
4-10 NAC Controller PEP Installation

Eight-Wire Crossover Cable RJ45 Pinouts, Connections Between Hub Devices

À
Eight-Wire Straight-Through Cable RJ45 Pinouts, Connections Between
À
Ensure that the twisted pair connection meets the dB loss and cable specifications outlined
in the Cabling Guide. Refer to "Related Documents" on page xvi for information on
obtaining this document. If a link is still not established, contact Enterasys Networks.
Refer to "Getting Help" on page xviii for details.
Â
3 RJ45-to-RJ45 crossover cable
Â
3 RJ45-to-RJ45 straight-through cable
Á
Á
